X-Ray Room Requirement
4–8 SITE PREPARATION BEFORE INSTALLATION

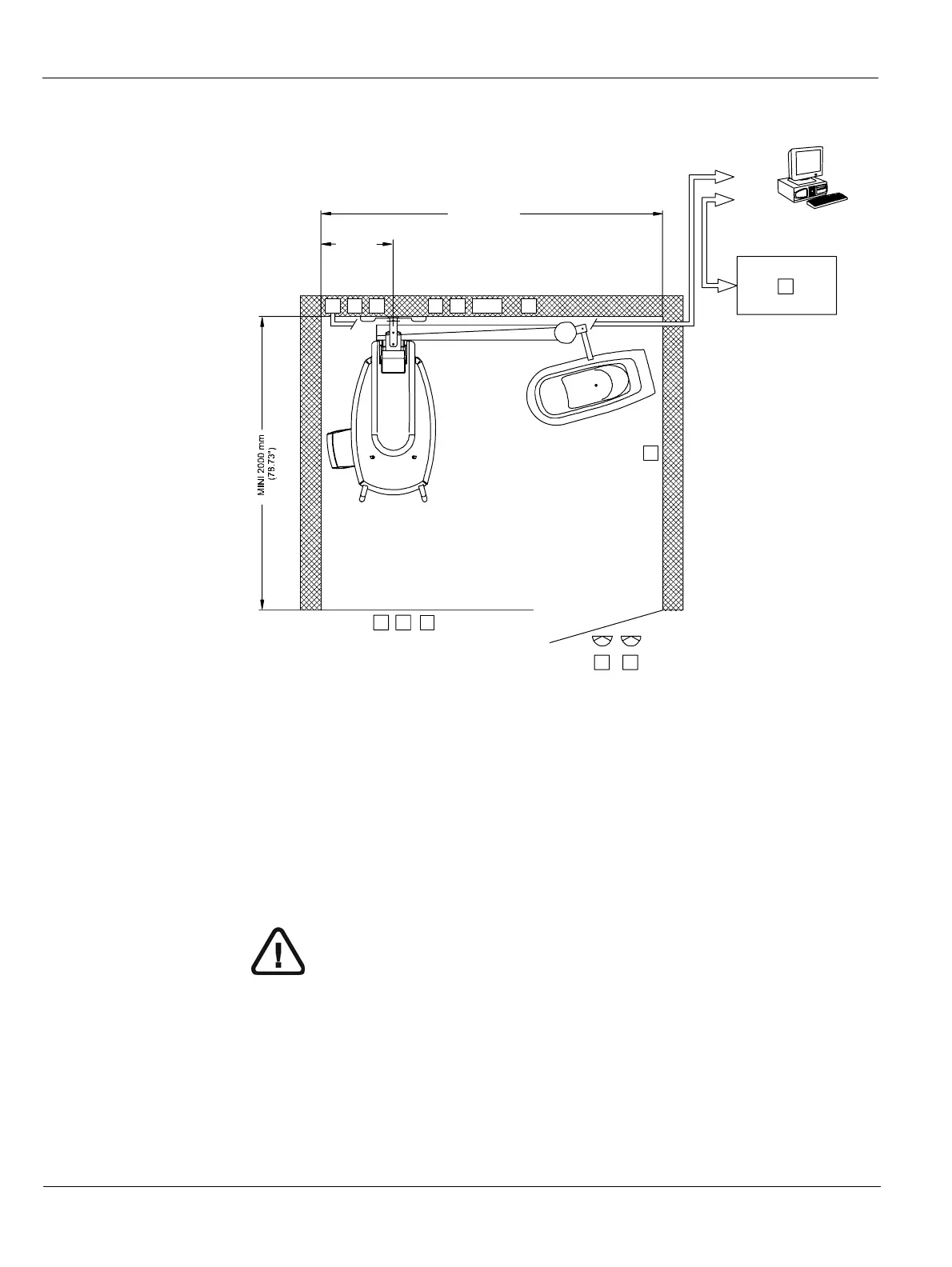

Figure 4–2 Minimum X-Ray Room Space Configuration for K8000 and K8000C
WARNING
You MUST prepare the appropriate electrical requirements and
configurations of the x-ray room before installing the unit. You MUST
locate separately the following low voltage and high voltage
connections:
- Low Voltage: (12), (9), (10)
- High Voltage: (6), (5), (7bis)
3 Red color actuator emergency stop push-button 9 X-ray remote control
4 Red color actuator emergency stop push-button 10 Door safety switch
5 Red warning lamp, power ON indicator 11 Mains outlet (for electrical tools)
6 Unit mains connecting terminal 12 Ethernet outlet (RJ45/1)
7 Green warning lamp, ready state indicator 13 Local Area Network (LAN), (RJ45/2)
7bis X-Ray warning lamp connecting terminal
13
RJ45/1
RJ45/2
57
4910
10 6 5 7bis 11
9
3
MINI 2350 mm
(92.52")
MINI 500 mm
(19.68")
12
To Next Page
