Fitting the Covers
5–22 INSTALLING THE CEPHALOSTAT
Fitting the Cephalostat Covers

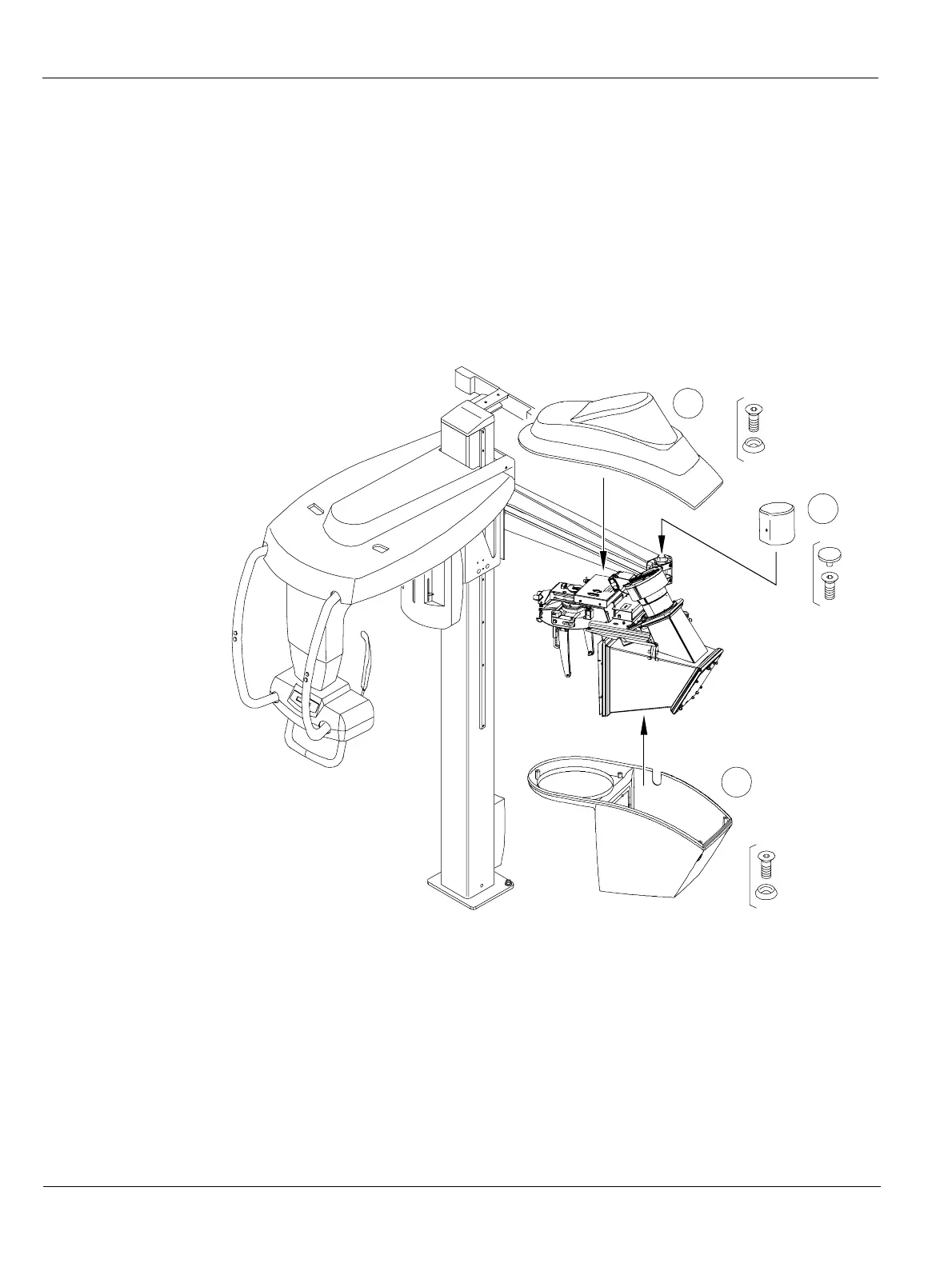

To fit the cephalostat covers, follow these steps:
1. Fit the cephalostat end of the arm cover (A) and screw the fixing screws.
2. Fit the cephalostat head side covers (B) and screw the fixing screws.
3. Fit the cephalostat head top cover (C) and screw the fixing screws.
B
5 x
M5x12
2 x
M5x16
A
C
4 x
M5x12
To Next Page
