MDC-1840BB/1841BB/1860BB/1810BB/1820BB Series Chapter 4
Operation Manual Installation
0093142122-11 4-25
off-centering, changing mode of operation, VRM, EBL, fixed rings, etc.

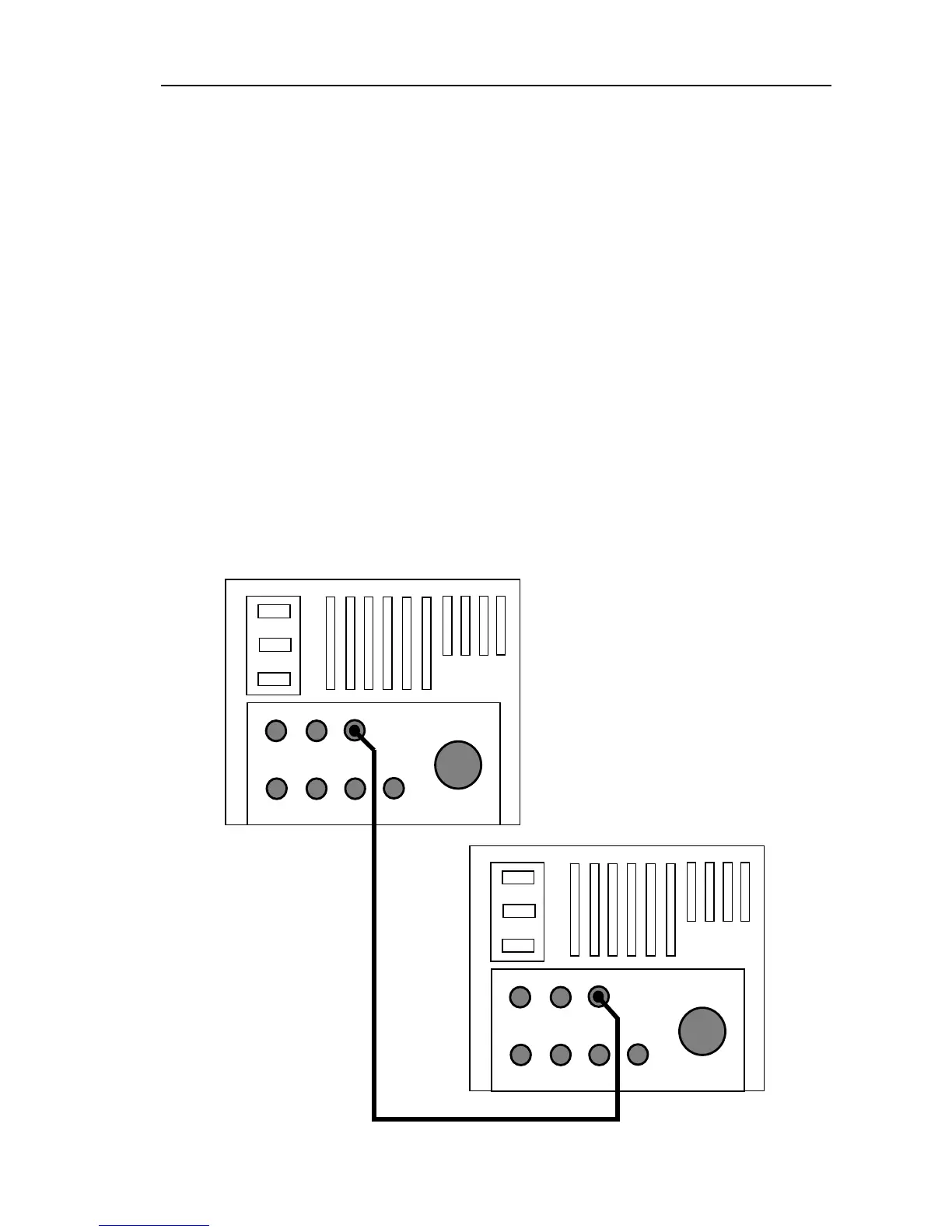

In the following circumstances, the display presentation becomes abnormal but is not
fault.
(1) When the transmission is turned off, the slave screen is displayed with plural
coaxial video caused by non-updated video data.
(2) When the master display is set to short range and the remote display to long
range, the remote screen will be shown with coaxial radar picture caused by
higher transmission rate video being supplied from the master display.
(1) On the contrary, when the master display is set to long range and remote display
to short range, the remote display screen will be shown with stretched video
towards range. In a particular case, the radar video display will be shown
halfway due to slower transmission rate.
NOTE: To utilize the nav data, true bearing mode, true motion mode and EPA/ATA
functions in remote display, relevant sensor units such as, gyro compass, speed log
and GPS receiver must be connected.
GYRO / LOG
