Chapter 4 MDC-1840BB/1841BB/1860BB/1810BB/1820BB Series
Installation Operation Manual
4-26 0093142122-11
Pin No. NAME
1 VIDEO OUT
2 TRIG OUT
3 GND
4 AZIP OUT
5 SHF OUT
6 GND
7 VIDEO IN
8 TRIG IN
9 GND
10 AZIP IN
11 SHF IN
12 +12Vdc(Not used)
1
2
3
4
5
6
7
8
9
12
10
11

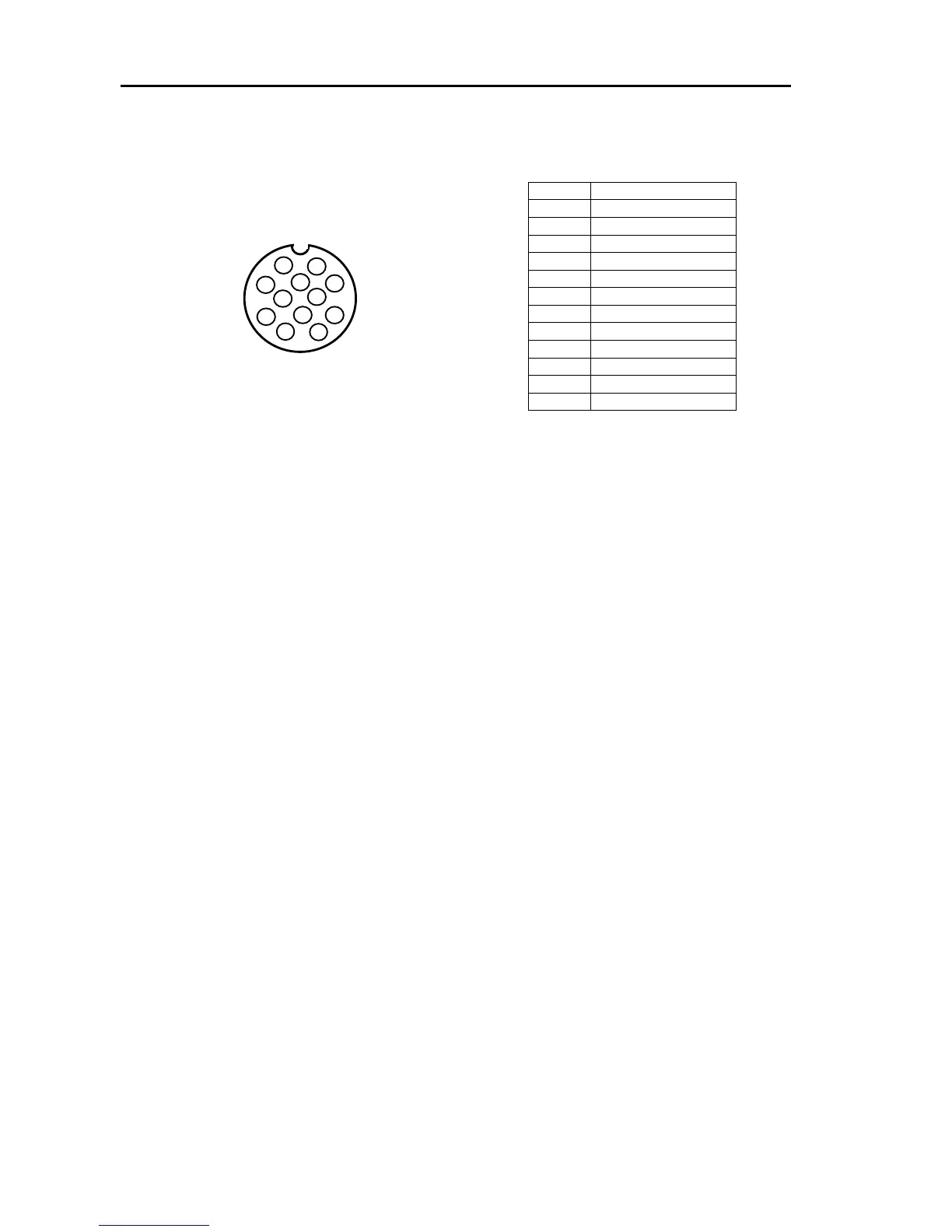

Pin assignment on
REMOTEConnector
(Top view)
Figure 4.21 Remote connector
