S300-S400-S600-S700 PROFIBUS | 3 Installation / Setup
3.2.3 Setup Software
3.2.3.1 Screen page PROFIBUS
This screen will only appear, if the PROFIBUS hardware is built into the servo amplifier. The
screen page displays the PROFIBUS-specific parameters, the bus status, and the data words in
the transmit and receive directions, as seen by the bus-master. This page is helpful when search-

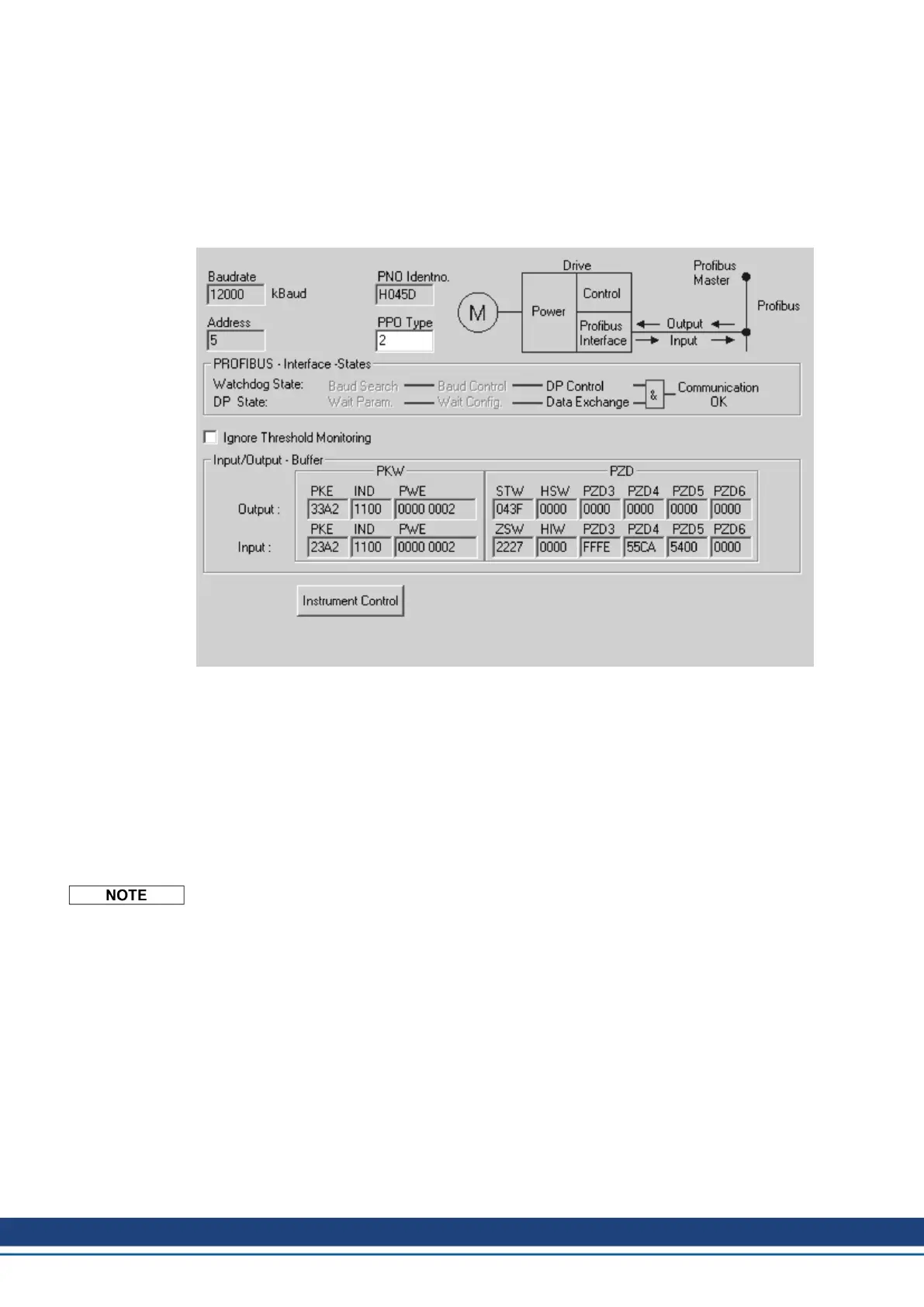

ing for errors and commissioning the bus communication. The picture below shows the
S300/S700 screen.
Baudrate The baud rate set by the PROFIBUS master.
PNO Identno. The PNO identification is the number for the servo amplifier from the list of
ID-numbers set by the PROFIBUS user organization.
Address Station address of the amplifier (setting see (➜ # 11))
PPO Type Servo amplifier only supports PPO-type 2 of the PROFIDRIVE profile.
PROFIBUS inter-
face states
Shows the present status of the bus communication. Data can only be trans-
ferred across the PROFIBUS when the “Communication OK” message is
black (not shown in gray).
Input The last PROFIBUS object received by the master.
Output The last PROFIBUS object sent by the master.
The data for input/output are only transferred, if the threshold monitoring for the servo amplifier
has been activated in the master’s hardware configuration.
16 Kollmorgen | kdn.kollmorgen.com | December 2019
