16. Functions of switches and parts on PWBs Field Service Ver. 1.0 Dec. 2008

234

bizhub 362/282/222

ADJUSTMENT/

SETTING

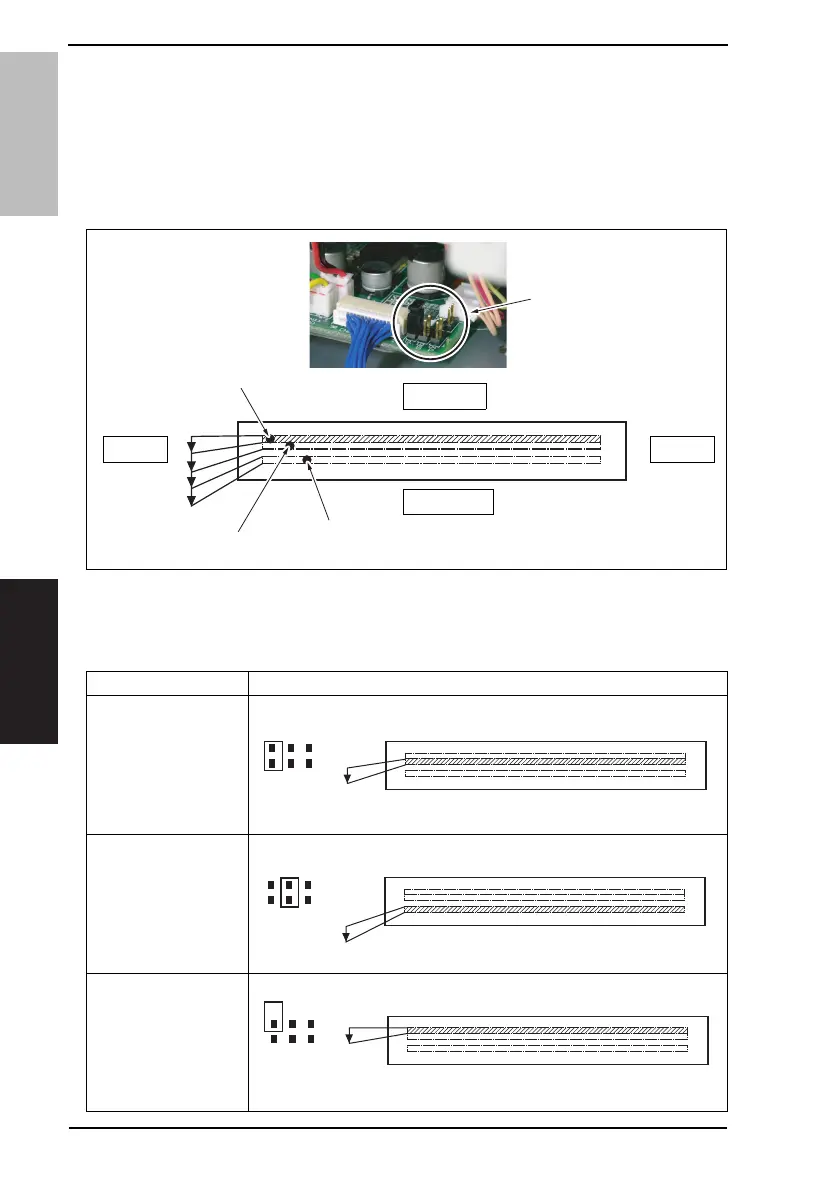

16.2 Read white reference position adjustment

16.2.1 Jumper switch setting

• If fine black lines occur on the copy, adjust the position of the read white reference posi-

tion of the Shading Sheet by using jumper switches.

NOTE

• NEVER make any settings other than the following for the jumper switch.

1. Turn OFF the Main Power Switch.

2. Remove the

Upper Rear Cover.

See P.51

3. Make the appropriate settings of the jumper switches on the BCRS Board.

4040F3C534DA

IR backIR front

IR left side

IR right side

Step 1

Default

Step 2

Jumper Switch

Scanning Position Jumper Switch Setting

Default scan position

Step 1 scan position

Step 2 scan position

4040F3C537DA

ABP

4040F3C538DA

ABP

4040F3C539DA

ABP
