Field Service Ver. 1.0 Dec. 2008 4. Other
11
FS-530/PU-501/OT-602MAINTENANCE
4.2 Precautions to be observed when option configuration is
changed
• The Exit Tray detection position must be changed depending on configuration of the
options mounted on the copier.

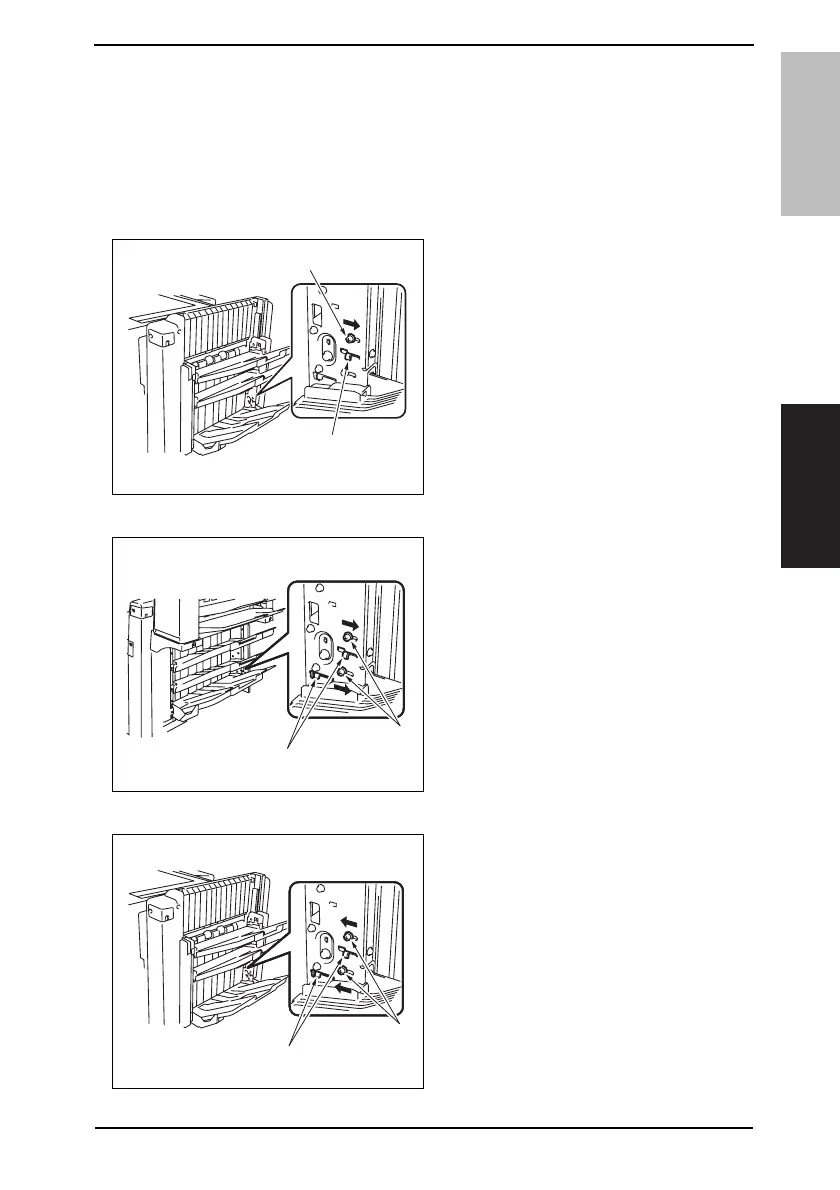

4.2.1 Setting the Exit Tray Detection Position
A. When only OT-602, MT-502, or SD-507 is mounted
1. Loosen the screw [1] and move it in
the direction of the arrow. Then,
tighten it at the new position.
NOTE
• This step should be done securely.
If not, any trouble may happen.
• Be sure to move the screw itself.
• Do not move the screw by using the
Adjust Plate [2].
B. When OT-602 + MT-502 or OT-602 + SD-507 are mounted
1. Loosen the two screws [1] and move
them in the direction of the arrow.
Then, tighten them at the corre-
sponding new positions.
NOTE
• This step should be done securely.
If not, any trouble may happen.
• Be sure to move the screw itself.
• Do not move the screw by using the
Adjust Plate [2].
C. When only FS-530 is mounted
1. Loosen the two screws [1] and move
them in the direction of the arrow.
Then, tighten them at the corre-
sponding new positions.
NOTE
• This step should be done securely.
If not, any trouble may happen.
• Be sure to move the screw itself.
• Do not move the screw by using the
Adjust Plate [2].
4349F2C541DA
[2]
[1]
4349F2C542DA
[2]
[1]
4349F2C543DA
[2]
[1]
