Konica Minolta Bizhub 282 Service Manual

6. Other Field Service Ver. 1.0 Dec. 2008
60
bizhub 362/282/222
MAINTENANCE

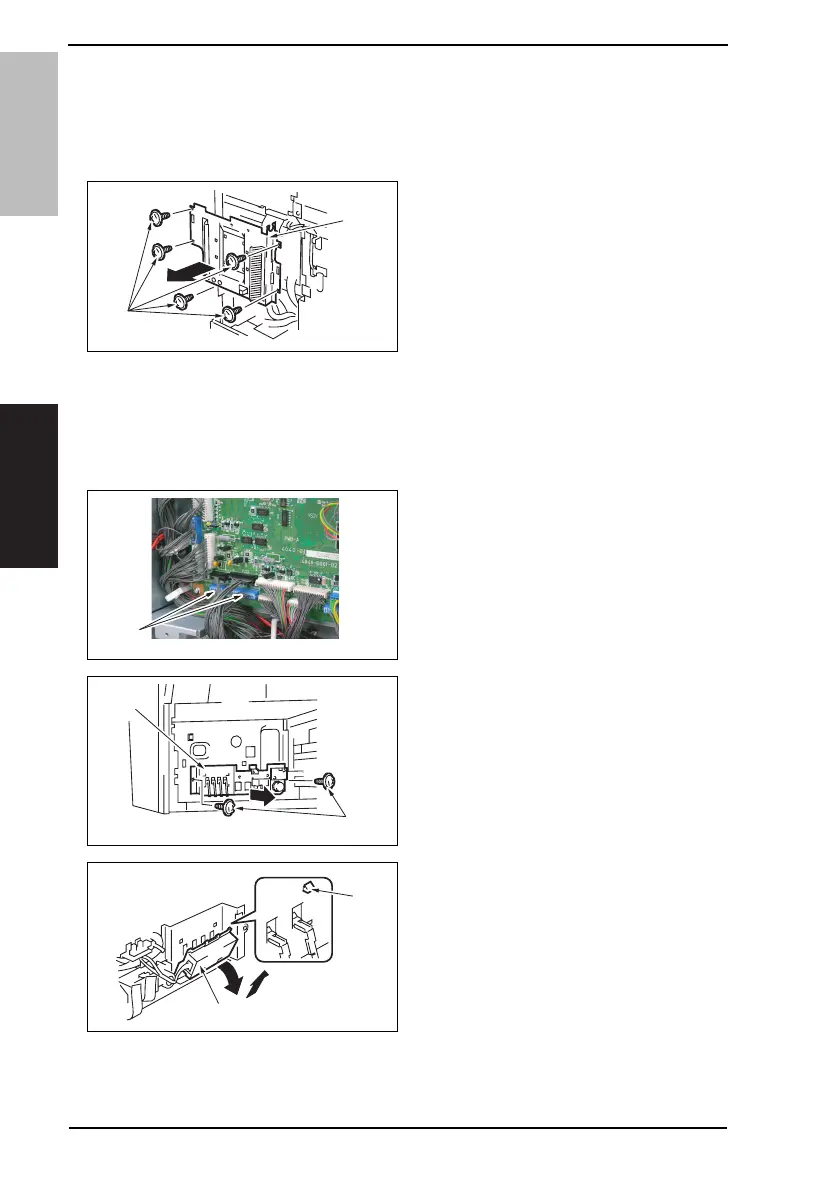

6.3.16 FD Paper Size Board 2
1. Remove the Upper Rear Cover.
See P.51
2. Remove the Rear Cover.
See P.52
3. Remove five screws [1] and the
Mechanical Control Board Cover [2].
4. Remove the Tray Rear Cover.
See P.50
5. Remove the Lower Rear Cover.
See P.50
6. Remove the Tray 2.
See P.58
7. Disconnect two connectors (PJ25,
PJ26) [3] from the Mechanical Con-
trol Board.
8. Remove two screws [4] and the Lift-
Up Assy [5].
9. Remove four tabs [6] and the FD
Paper Size Board Assy [7].
4040F2C561DA
[2]
[1]
4040F2C657DA
[3]
4040F2C571DA
[5]
[4]
4040F2C572DA
[6]
[7]
