Konica Minolta Bizhub 282 Service Manual

Field Service Ver. 1.0 Dec. 2008 2. Periodical check
3
PC-407MAINTENANCE
MAINTENANCE
2. Periodical check
2.1 Maintenance procedure (Periodical check parts)

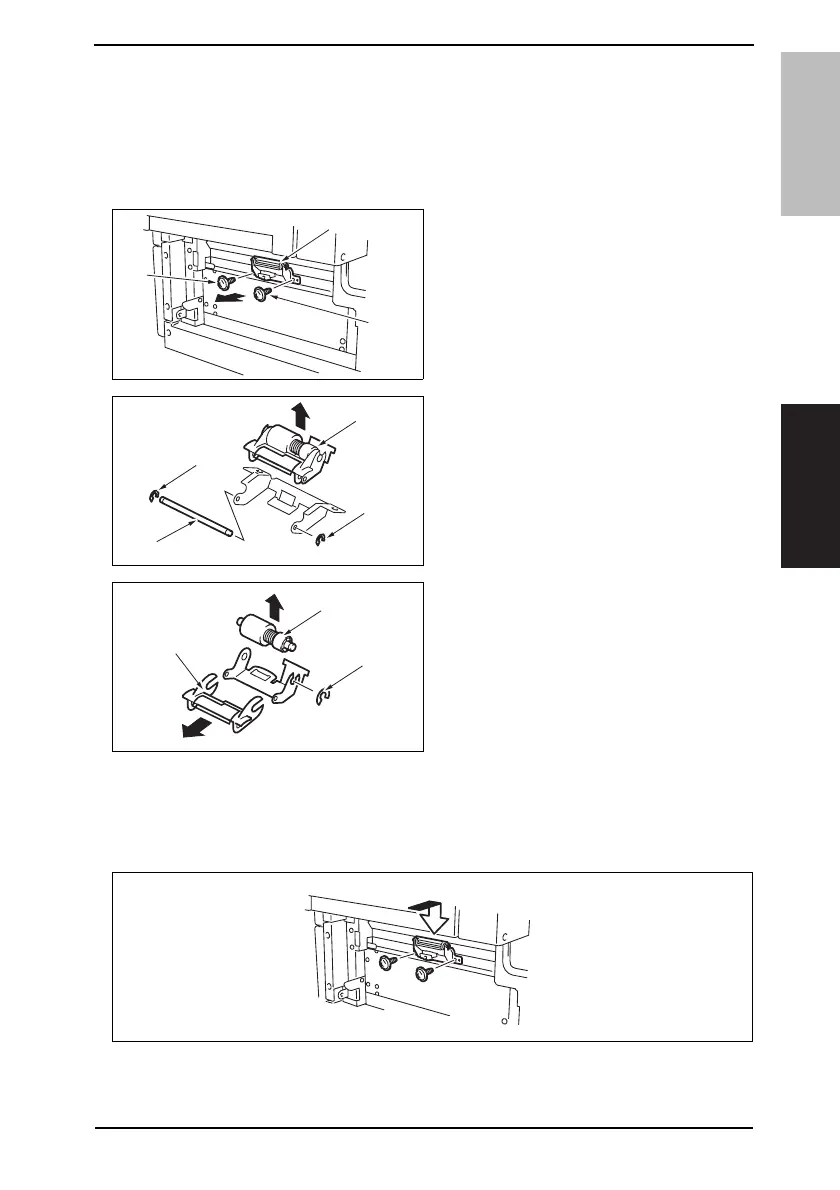

2.1.1 Replacing the Separation Roller Assy
1. Remove the Right Door.
See P.10
2. Remove two screws [1] and remove
the Paper Separation Roller Mount-
ing Bracket Assy [2].
3. Remove two C-rings [3] and the
shaft [4], and remove the Paper Sep-
aration Roller Fixing Bracket Assy
[5].
NOTE
• Be careful not to lose spring at this
time.
4. Remove the C-ring [6], the Guide [7],
and remove the Separation Roller
Assy [8].
NOTE
• Install the Separation Roller Assy while pressing the holder down so that it aligns
to the metal bracket of the machine.
• Make sure that the Separation Roller Assy is not tilted to the right or left when
installed.
NOTE
• Replace the Separation Roller Assy, Paper Take-up Roller and Pick-up Roller at the
same time.
4348fs2509c0
[2]
[1]
[1]
[3]
[5]
[3]
[4]
4061F2C507DA
[6]
[8]
[7]
4061F2C508DA
4348fs2623c0

Konica Minolta Bizhub 282 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A4
Duplex Printing	Yes
Printing Technology	Laser
Original Size	A4
Print Speed	28 ppm
Copy Speed	28 cpm
Network Connectivity	Ethernet
USB Connectivity	Yes
Zoom Range	25% - 400%
Scan Speed (B&W)	28 ipm
