Konica Minolta Bizhub 282 Service Manual

Field Service Ver. 1.0 Dec. 2008 9. Jam Display
37
SD-507
TROUBLESHOOTING
TROUBLESHOOTING

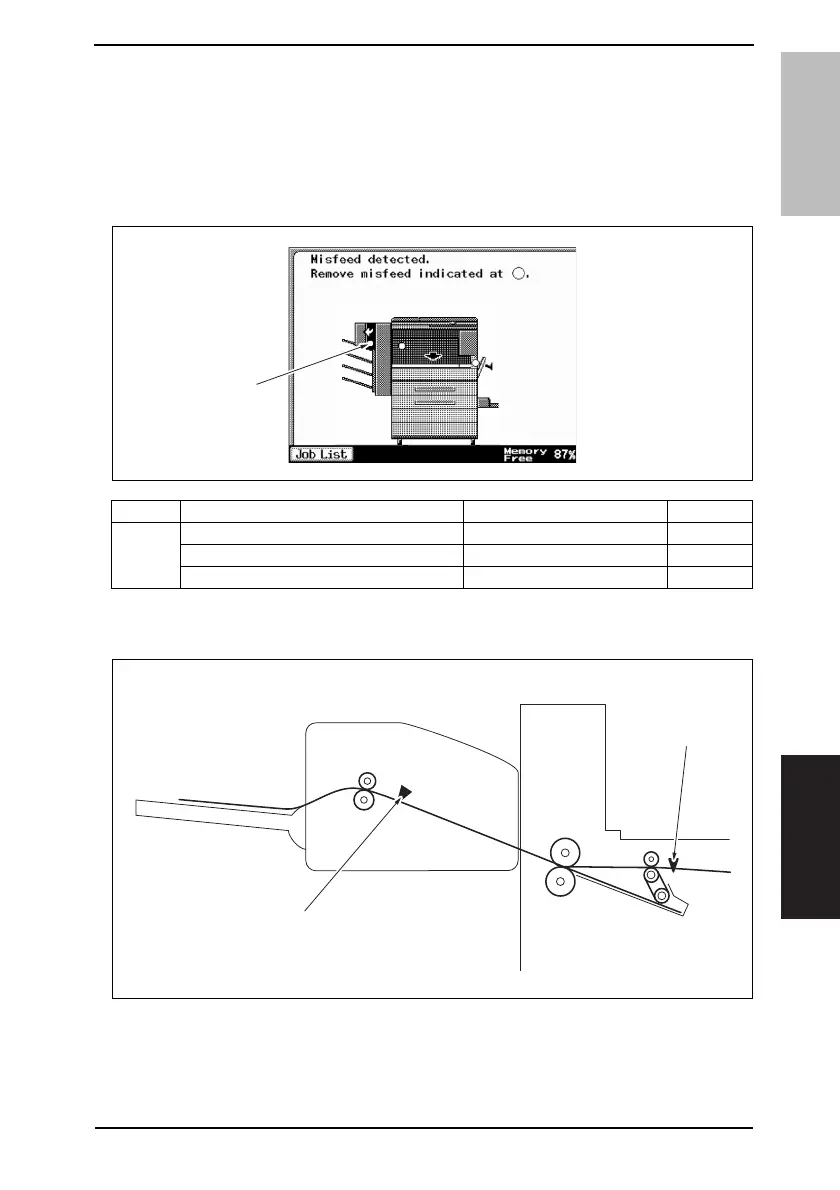

9. Jam Display
9.1 Misfeed Display
• When a paper misfeed occurs, the misfeed message, misfeed location, and paper loca-
tion are displayed on the Touch Panel of the machine.
9.2 Sensor layout
Display Misfeed Location Misfeed processing location Action
[1]
Folding Section Misfeed Front Door P. 3 8
Staple Unit Misfeed Front Door P. 3 9
Paper Bundle Exit Misfeed Front Door P. 4 0
4511F4E502DA
[1]
[1] Saddle Exit Sensor PC20-SK
[2] Transport Sensor PC5-FN
4511F4C501DA
[1]
[2]

Konica Minolta Bizhub 282 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A4
Duplex Printing	Yes
Printing Technology	Laser
Original Size	A4
Print Speed	28 ppm
Copy Speed	28 cpm
Network Connectivity	Ethernet
USB Connectivity	Yes
Zoom Range	25% - 400%
Scan Speed (B&W)	28 ipm
