12. Troubleshooting Field Service Ver. 1.0 Dec. 2008
212
FK-503
TROUBLESHOOTING

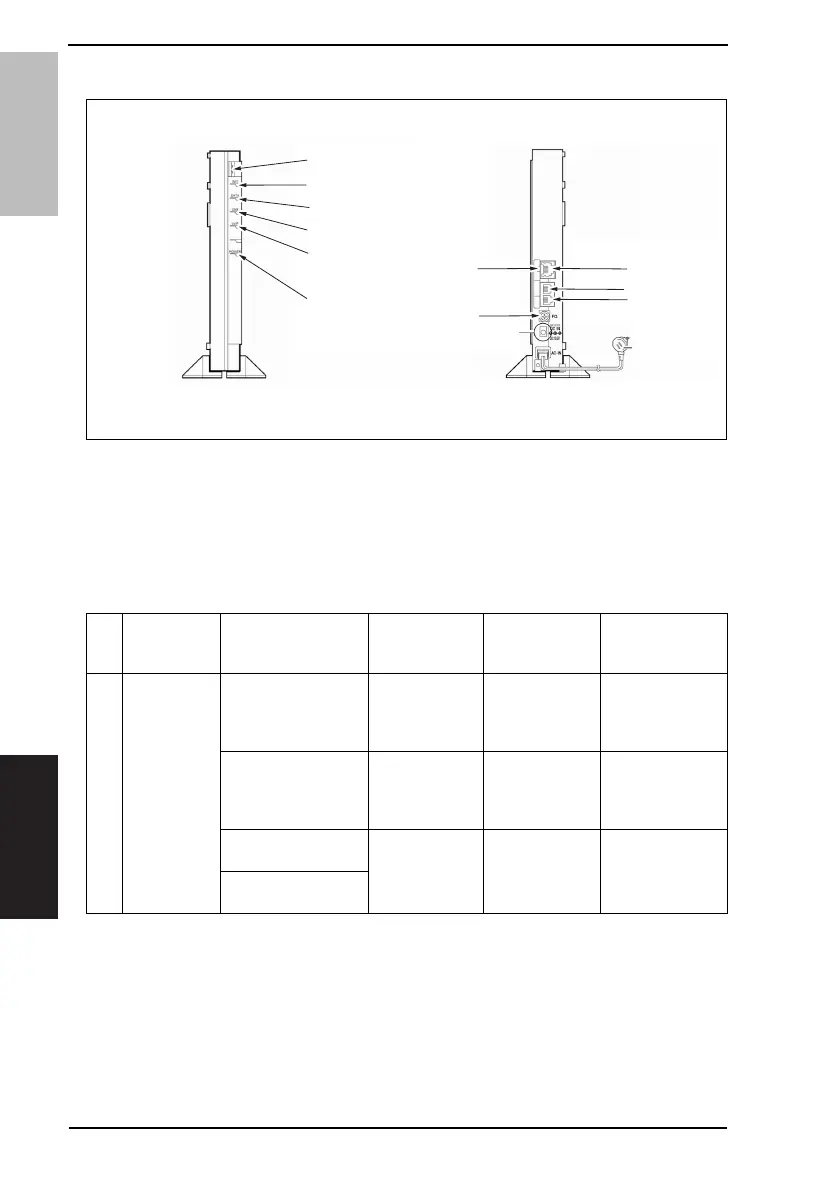

12.5.3 SIP-FAX Adaptor
[1] Initialization Button [7] LAN Port Status Display Lamp
[2] INIT (Initialization) Lamp [8] Grounding Terminal
[3] DATA Lamp [9] LAN Port
[4] LINK Lamp [10] PSTN Port
[5] VoIP Lamp [11] MFP Port
[6] POWER Lamp
Item
No.
Condition Confirmation Item Analysis
Action to be
Ta ke n
(or next Analysis)
Action to be Taken
(or next Analysis)
1The power
lamp does not
light.
The electrical cord
plug has discon-
nected from the wall
outlet.
→ Securely insert
the electrical
plug.
If the problem still
is not resolved,
refer to the next
procedure.
The electrical cord is
inserted into an outlet
linked to the PC
power.
→ Insert the electri-
cal cord directly
into a wall outlet.
If the problem still
is not resolved,
refer to the next
procedure.
The electrical cord is
broken.
→ Replace SIP-FAX
Adaptor.
None of the above
causes are applicable.
4040F4C514DA
[1]
[2]
[3]
[4]
[5]
[6]
[7] [9]
[10]
[11]
[8]
