Konica Minolta Bizhub 282 Service Manual

6. Other Field Service Ver. 1.0 Dec. 2008
58
bizhub 362/282/222
MAINTENANCE

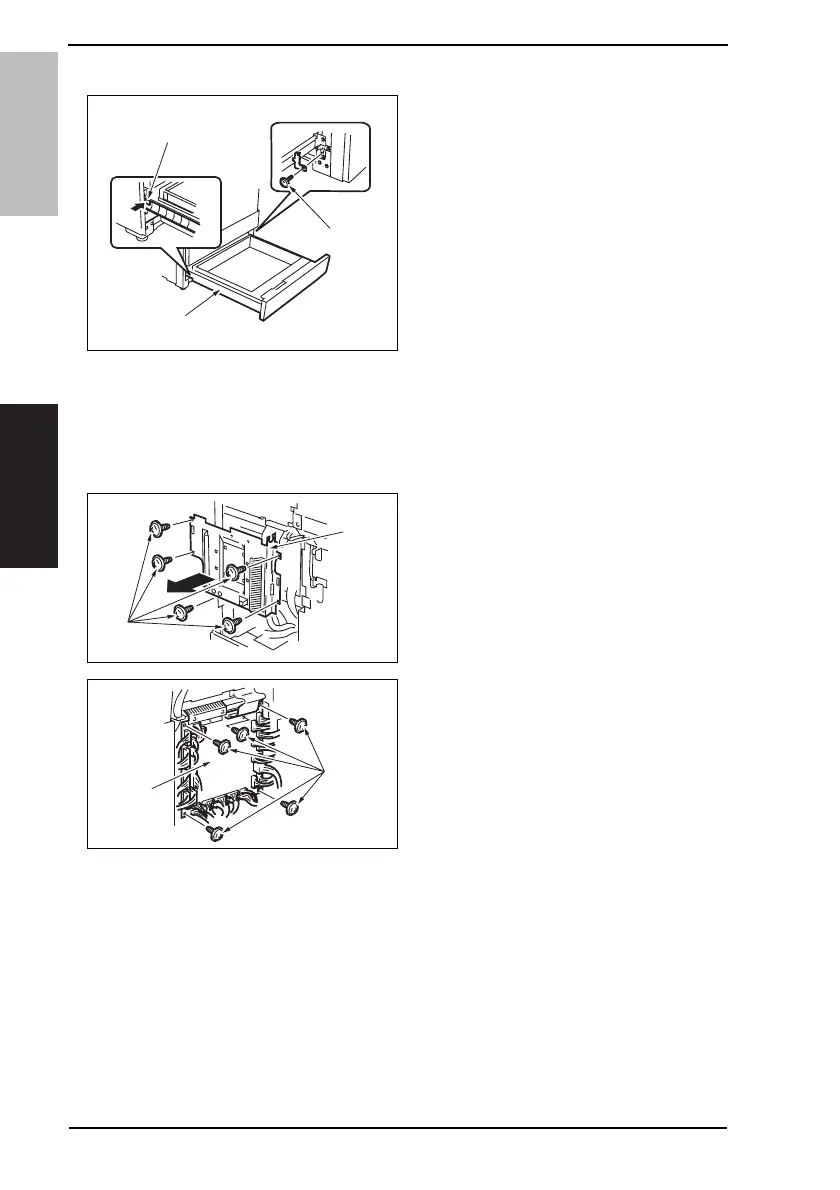

6.3.13 Tray 2
1. Slide out the Tray 2 [1].
2. Remove the screw [2] and, holding
the stopper [3], remove the Tray 2
[1].
6.3.14 Mechanical Control Board Cover
1. Remove the Upper Rear Cover.
See P.51
2. Remove the Rear Cover.
See P.52
3. Remove five screws [1] and the
Mechanical Control Board Cover [2].
4. Unplug the all connectors.
5. Remove five screws [3] and the
Mechanical Control Board [4].
NOTE
• When replacing the Mechanical
Control Board, be sure to replace
the EEPROM.
See P.111
• When the Mechanical Control Board
has been replaced with a new one,
check the ROM version and
upgrade the firmware to the latest
version.
See P.41
A11UF2C503DA
[2]
[3]
[1]
4040F2C561DA
[2]
[1]
4040F2C562DA
[3]
[4]

Konica Minolta Bizhub 282 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A4
Duplex Printing	Yes
Printing Technology	Laser
Original Size	A4
Print Speed	28 ppm
Copy Speed	28 cpm
Network Connectivity	Ethernet
USB Connectivity	Yes
Zoom Range	25% - 400%
Scan Speed (B&W)	28 ipm
