Konica Minolta Bizhub 282 Service Manual

Field Service Ver. 1.0 Dec. 2008 22. Parts layout drawing
291
bizhub 362/282/222APPENDIX
APPENDIX

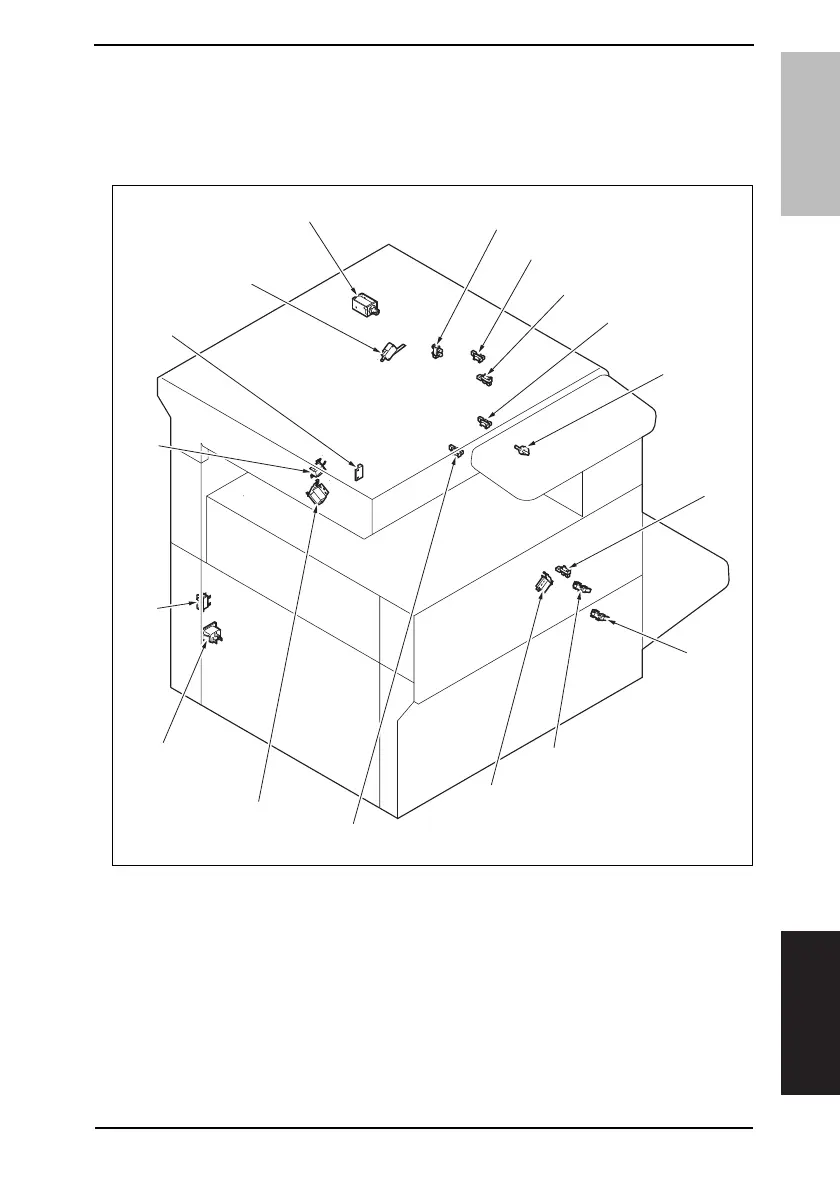

22. Parts layout drawing
22.1 Main body
[1] Duplex Unit Door Sensor (PC23) [10] Duplex Unit Lower Transport Sensor (PC25)
[2] Switch Back Unit Sensor (PC26) [11] Sub Hopper Solenoid (SL1)
[3] Duplex Unit Upper Transport Sensor (PC24) [12] AC Power Source
[4] Paper Exit Sensor (PC4) [13] Main Power Switch (S1)
[5] Fusing Roller Thermostat (TS1) [14] Main Hopper Solenoid (SL2)
[6] Bypass Lift Sensor (PC29) [15] Sub Hopper Empty Switch (S4)
[7] Right Lower Door Sensor (PC3) [16] Right Side Door Interlock Switch 1 (S2)
[8] Bypass Paper Empty Sensor (PC18) [17] Switchback Solenoid (SL4)
[9] Bypass Pick-Up Solenoid (SL3)
4040F5C500DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]

Konica Minolta Bizhub 282 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A4
Duplex Printing	Yes
Printing Technology	Laser
Original Size	A4
Print Speed	28 ppm
Copy Speed	28 cpm
Network Connectivity	Ethernet
USB Connectivity	Yes
Zoom Range	25% - 400%
Scan Speed (B&W)	28 ipm
