Konica Minolta Bizhub 282 Service Manual

4. Other Field Service Ver. 1.0 Dec. 2008
14
SD-507
MAINTENANCE

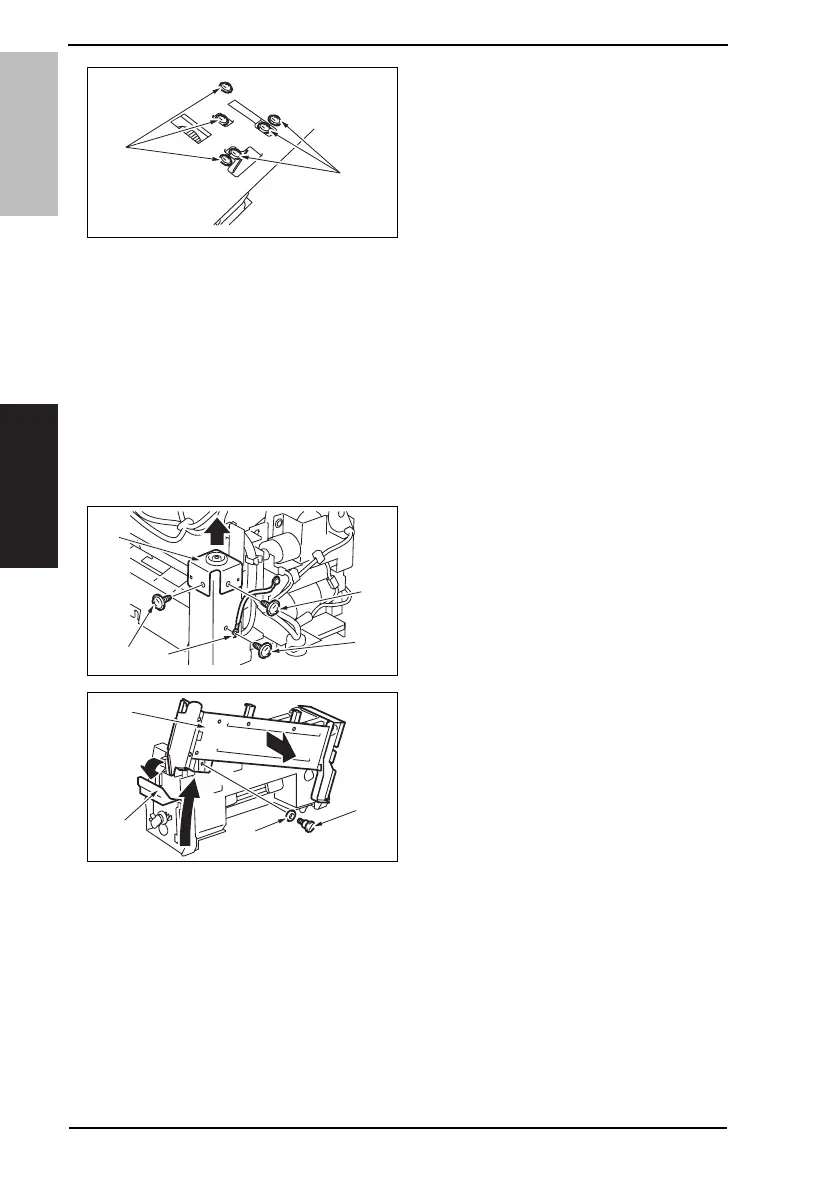

7. Tighten six screws [10].
NOTE
• Turn the gear again and check to
see that the protrusion of the
Clincher smoothly fits into the
recess in the jig.
8. Turn the gear and remove the jig.
4.3.7 In & Out Guide Drive Motor (M13-SK)
1. Remove the Saddle Unit.
See P.7
2. Remove the Paper Output Tray.
See P.5
3. Remove the Front Cover.
See P.5
4. Remove the Rear Cover.
See P.6
5. Remove the Upper Cover.
See P.6
6. Remove the screw [1], and remove
the ground terminal [2].
7. Remove two screws [3], and remove
the holder [4].
8. Release the lock release lever [5],
and slide the Saddle Unit Mounting
Plate [6].
9. Remove the screw [7] and the
washer [8], and remove the Saddle
Unit Mounting Plate [6].
4511F2C554DA
[10]
[10]
4511F2C513DA
[1]
[2]
[3]
[3]
[4]
4511F2C515DA
[7]
[8]
[5]
[6]

Konica Minolta Bizhub 282 Specifications

General

Functions	Print, Copy, Scan, Fax
Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Maximum Paper Size	A4
Duplex Printing	Yes
Printing Technology	Laser
Original Size	A4
Print Speed	28 ppm
Copy Speed	28 cpm
Network Connectivity	Ethernet
USB Connectivity	Yes
Zoom Range	25% - 400%
Scan Speed (B&W)	28 ipm
