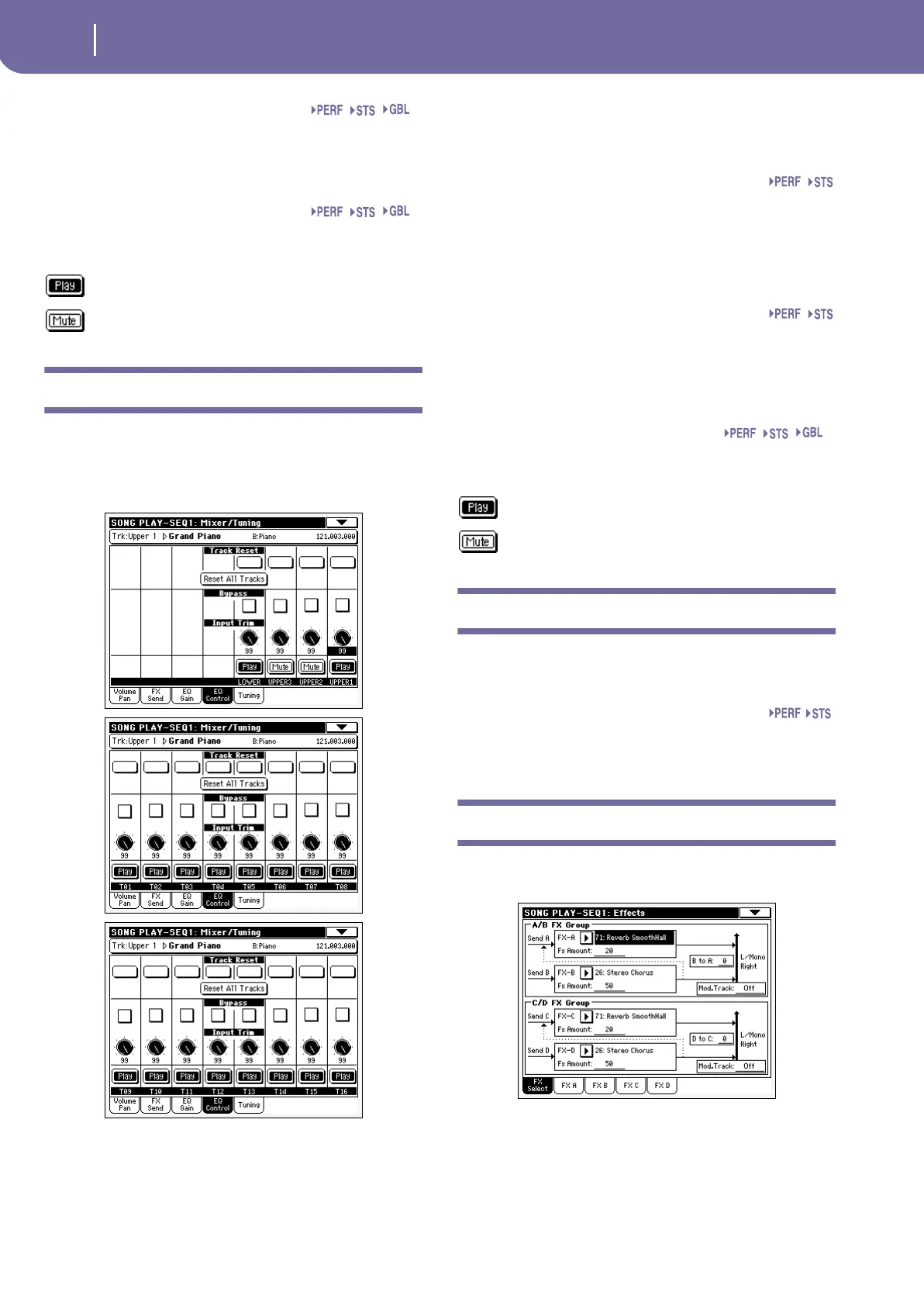

158
Song Play operating mode
Mixer/Tuning: EQ Control
Low Gain
This parameter lets you adjust the low frequencies equalization
on each individual track. This is a shelving curve filter. Values are
shown in decibels (dB).
Play/Mute icon
Track’s play/mute status. See “Keyboard track status” on
page 150 for more information.
Play status. The track can be heard.
Mute status. The track cannot be heard.
Mixer/Tuning: EQ Control
This page lets you reset or bypass track equalization, pro-
grammed in the previous page.
Use the TRACK SELECT button to switch from the Keyboard to
the Song tracks, and vice-versa.
Track Reset buttons
Use these buttons to reset (i.e., “flatten”) equalization for the
corresponding track.
Reset All Tracks button
Press this button to reset (i.e., “flatten”) equalization for all
tracks.
Bypass
Check any of these checkboxes to bypass equalization for the
corresponding track. When bypassed, equalization has no effect
on the track, but all parameters are preserved. When the box is
unchecked, equalization is activated again with the original set-
tings.
Input Trim
This knob allows you to limit the level of the signal passing
through the equalizer. Extreme equalization values can overload
the audio circuits and lead to distorsion. This control lets you set
equalization as desired, and at the same time avoid overloading.
Play/Mute icon
Track’s play/mute status. See “Keyboard track status” on
page 150 for more information.
Play status. The track can be heard.
Mute status. The track cannot be heard.
Mixer/Tuning: Tuning
Parameters in this page let you set various tuning settings. See
“Mixer/Tuning: Tuning” on page 89 for details.
Parameters
Note: Song track values edited in this page are not saved, and are
only intended for realtime use.
Effects: FX Select
This page allows you to select effects to be assigned to the four
Internal FX processors (A-D).
Note: When you stop the Song, or select a different Song, the
default effects are selected again. You can, however, stop the Song,
change the effects, then start the Song again with the new effects.
Edit the Song in Sequencer mode to permanently change the effects.
Sng
Sng
Sng
Pa500-110UM-ENG.book Page 158 Friday, March 28, 2008 11:12 AM
