14. S.Delay (Stereo Delay)
This is a stereo delay, and can by used as a cross-feed-
back delay effect in which the delay sounds cross over
between the left and right by changing the feedback
routing.
Type [Stereo, Cross]
Selects the delay type. With the Stereo setting, this will
be a conventional stereo delay. With the Cross setting,
this will be a cross-feedback delay in which the delay
sound bounces between left and right.
BPM Sync (Delay Time BPM Sync) [Off, On]
Specifies whether the delay tempo will be synchronized.
☞ p.13 LCR Delay “BPM Sync (Delay Time BPM Sync)”
TimRatio (Time Ratio)
[BPM Sync Off: 000.5…400.0% (OVER)
BPM Sync On: 012.5…400.0% (OVER)]
☞ p.13 LCR Delay “TimRatio (Time Ratio)”
L Delay, R Delay (L, R Delay Time)
[BPM Sync Off IFX: 000…500msec
BPM Sync Off MFX: 000…700msec
BPM Sync Off: 1/64…1/1]
These set the left and right channel delay times. The de-
lay time is determined by these settings and the “TimRa-
tio” value.
If “BPM Sync” is Off, these delay times are set in msec
units. The range of this parameter will differ depending
on whether the effect is an insert effect or a master effect.
If “BPM Sync” is On, these delay times are set as a tim-
ing resolution relative to the tempo specified by the
[TEMPO] knob or MIDI clock.
Feedback [000…127]
Sets the amount of feedback for the left and right chan-
nels.
HighDamp [000…100%]
Sets the damping amount in the high range.
Low Damp [000…100%]
Sets the damping amount in the low range.
Trim [000…127]
Sets the input level.
Spread [000…127]
Sets the width of the stereo image of the effect sound.
☞ p.13 LCR Delay “Spread”
15. AtPanDly (Auto Panning Delay)
This stereo delay effect pans the delay sound left and
right using the LFO.
BPM Sync (Delay Time BPM Sync) [Off, On]
Specifies whether the delay tempo will be synchronized.
☞ p.13 LCR Delay “BPM Sync (Delay Time BPM Sync)”
TimRatio (Time Ratio)
[BPM Sync Off: 000.5…400.0% (OVER)
BPM Sync On: 012.5…400.0% (OVER)]
☞ p.13 LCR Delay “TimRatio (Time Ratio)”
L Delay, R Delay (L, R Delay Time)
[BPM Sync Off IFX: 0000…1000msec
BPM Sync Off MFX: 0000…1400mse
BPM Sync On: 1/64… 1/1]
These set the left and right channel delay times. The de-
lay time is determined by these settings and the “TimRa-
tio” value.
If “BPM Sync” is Off, these delay times are set in msec
units. The range of this parameter will differ depending
on whether the effect is an insert effect or a master effect.
If “BPM Sync” is On, these delay times are set as a tim-
ing resolution relative to the tempo specified by the
[TEMPO] knob or MIDI clock.
Feedback [000…127]
Sets the feedback amount for the left channel.
ModDepth (Modulation Depth) [000…127]
Sets the depth of modulation.
LFO Sync (LFO BPM Sync) [Off, On]
Specifies whether the internal LFO cycle will be syn-
chronized with the tempo specified by the [TEMPO]
knob or MIDI clock.
☞ p.5 “LFO Sync (LFO BPM Sync)”
LFO Freq (LFO Frequency) [0.01…100.0Hz]
Sets the internal LFO frequency if “BPM Sync” is Off.
☞ p.5 “LFO Freq (LFO Frequency)”
SyncNote (LFO SyncNote) [8/1…1/64]
Sets the internal LFO frequency as a proportion of the
tempo set by the [TEMPO] knob if “BPM Sync” is On.
☞ p.5 “SyncNote (LFO SyncNote)”
LFO Wave (LFO Waveform)
[Saw, Square, Triangle, Sine, S&H]
Selects the internal LFO waveform.
☞ p.5 “LFO Wave (LFO Waveform)”
LFO Shape [–63…+63]
☞ p.5 “LFOShape”

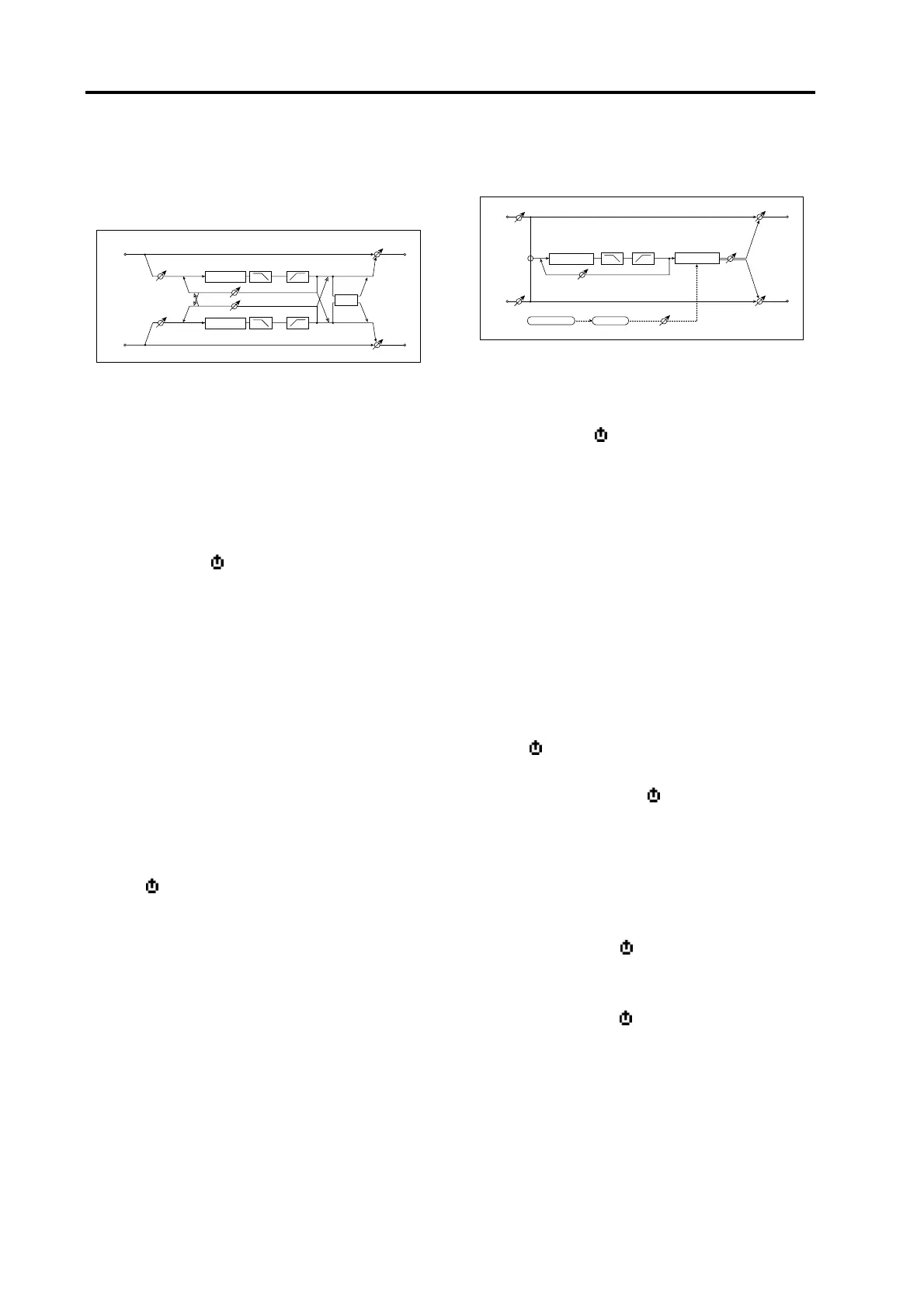

Delay
Delay
Stereo/Cross
Left
Right
Feedback
Dry / Wet
Dry / Wet
Stereo In - Stereo Out
Trim
Trim
High Damp Low Damp
High Damp
Low Damp
Spread
Stereo/Cross
Left
Right
Dry / Wet
Dry / Wet
Wet: Mono In - Stereo Out / Dry: Stereo In -Stereo Out
LFO Spread
LFO Shape
Pan
LFO
Depth
Delay
High Damp Low Damp
Feedback
Trim
Trim
+
