Preparations
Connect your monitor amp or mixer to
the output jack
Connect the RK-100S 2’s Output jack to the input jacks of
your mixer or powered monitor speakers.
Note: We recommend that you output in stereo in order
to take full advantage of the RK-100S 2’s sound. When
a cable with standard mono plugs is used, only sound
from the left channel will be output.
Connecting the mic
To use the RK-100S 2 as a vocoder, connect the headset/
mic (not plug-in powered) to the INPUT jack, and then
use your voice as the modulator signal (see 11 page
“Playing a vocoder program”).
Note: The INPUT jack is monaural.
Do not use excessive force when connecting or
disconnecting the mic.
Be careful of the mic output level when connecting a
mic.
Connecting an audio player
The RK-100S 2’s INPUT jack can be used as an AUX IN
jack.
1. Set the Input select switch (on the side panel) to
LINE.
When an audio device is connected to the INPUT
jack, be sure to set the Input select switch to LINE.
Otherwise, the connected device may be damaged.
2. Connect the audio device to the INPUT jack.
3. Hold down the SHIFT button and press the SHORT
RIBBON button.
The RK-100S 2 will enter the Audio In Through
mode, where the audio signal that’s input to the
INPUT jack is simply output directly from the
Output jack.
When there is an input at the INPUT jack, the SHIFT
buonislitup.Iftheinputisoverloaded,thebuon
is lit up in red.
Note: The INPUT jack is compatible with a stereo plug,
but the audio signal that is output from the Output jack
is monaural.
Connections

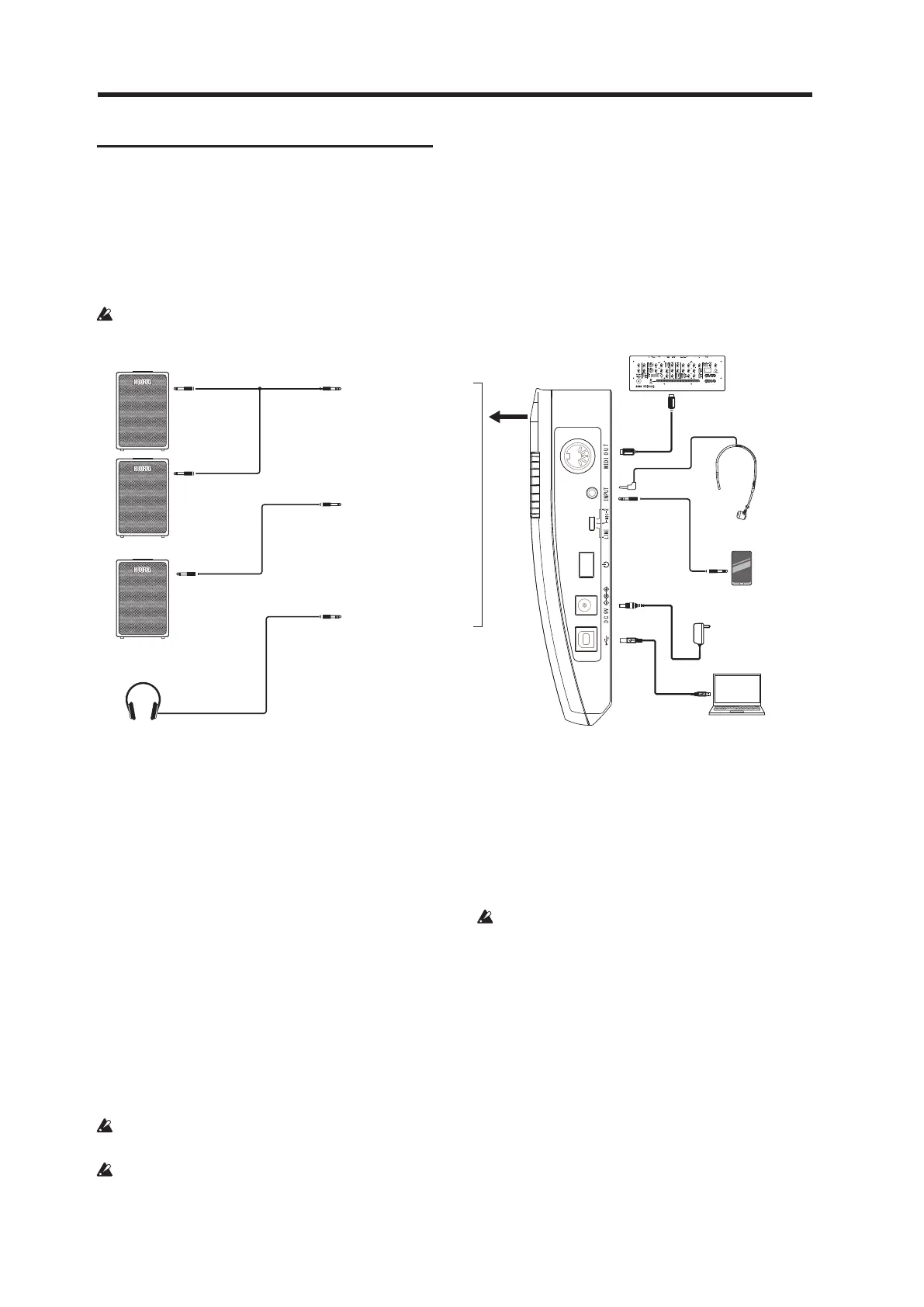

The illustration below shows a typical example of connections for the RK-100S 2. Connect your equipment as appropriate
for your needs.
 Youmustconnectalldeviceswiththepowerturnedo.Failuretoobservethisprecautionmaycausemalfunctionsor
damage to your speaker system.
Computer
USB cable
AC adapter
(Sold separately)
Headset mic
Digital audio player etc.
External tone
generator
MIDI IN
MIDI cable
Stereo plug
Mono plug
Mono plug
Mono plug
For a monaural output
(left channel output only)
When using headphones
Monitor amplier etc.
headphones
Mono plug
For a stereo output
Output jack
Stereo plug
INPUT
INPUT
INPUT
