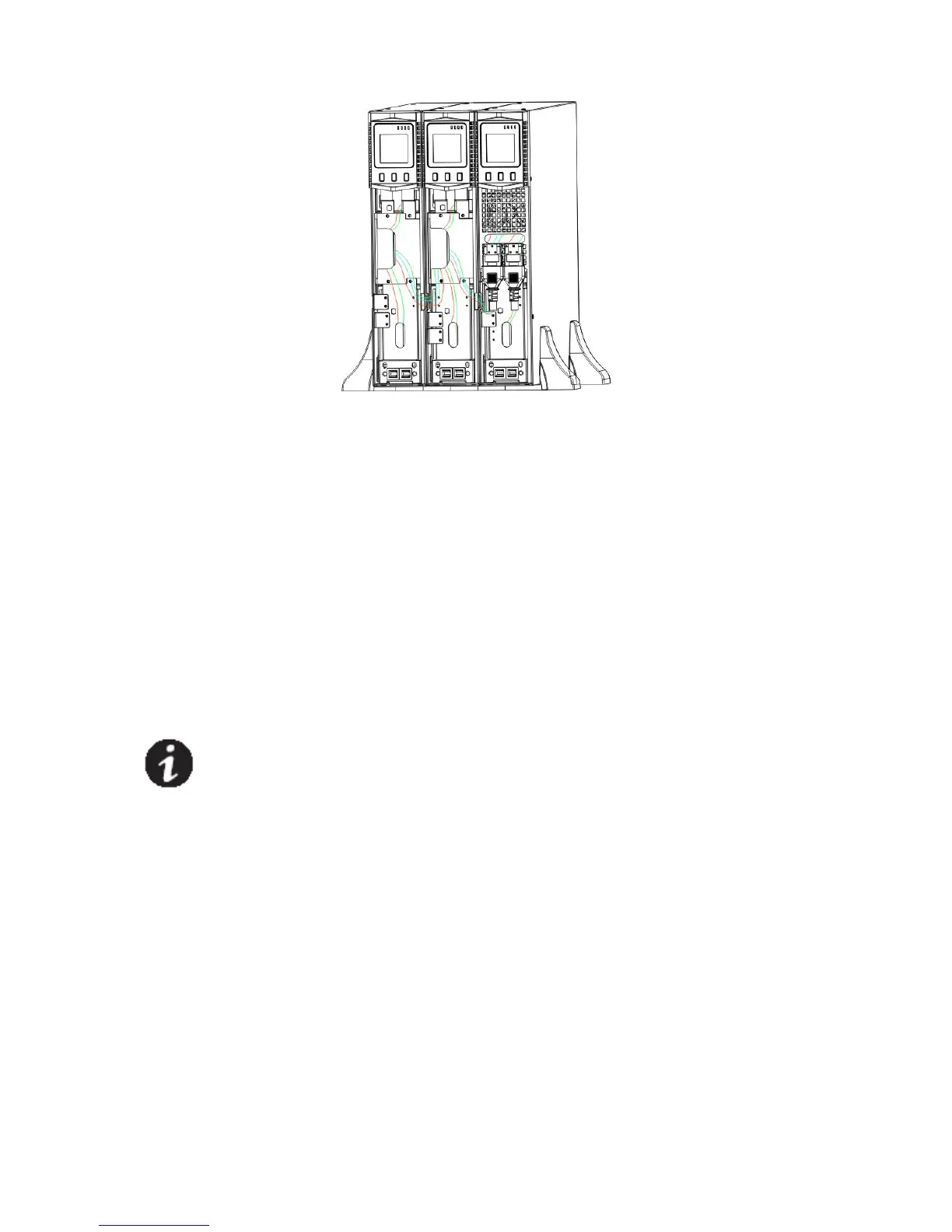

Figure15 The installation for UPS and battery box
1.Install the base, then place the RT UPS on the base one by one as Fig.15 shows.
2. The cover installation and cable connection of the UPS and EBPS are the same as RT. (To install the
optional EBP(s) for a UPS)
UPS Initial Startup
To start up the UPS:
0TNOTE Verify that the total equipment ratings do not exceed the UPS capacity to
prevent an overload alarm.
0T１. If optional EBPs are installed, verify that the EBPs are connected to the UPS.
0T２. Plug the equipment to be protected into the UPS, but do not turn on the
protected equipment.
0T３. Make any necessary provisions for cord retention and strain relief.
0T４. Plug the detachable UPS power cord into the input connector on the UPS rear
cover.
0T５. Plug the UPS power cord into a power outlet. The UPS front cover display
illuminates.
0T6. The ＵＰＳ will do self-test when power on. After that, the charger will
charge the battery. If the output displayed on LCD is “0”, there is no output. If
you need the UPS output the utility without starting the UPS when plug into
the utility，you need to set bPS option to “ON” on the setting mode,refer to
Page 26.
