0TCharger-status
graphics
section
0TDisplay the status of the charger.
0TWhen charger works normally, the
corresponding icon will vary
dynamically and orderly.
0Twhen charger works abnormally, the
icon will keep flashing
0TWhen UPS is in battery mode, the
number of the icons of the
charger-state section will vary
according to the changeable capacity
of the battery (pane).
Parameters inquiring
0TPress and hold the scroll key or for more than half a second(less than 2 seconds) to inquire
about items. The inquired items include input, battery, output, load, temperature.。Press and hold the
scroll key for more than 2 seconds, LCD begins to display the items circularly and orderly which
transfer to another every 2 seconds. Press and hold the key for some time again, it will return to
output status.

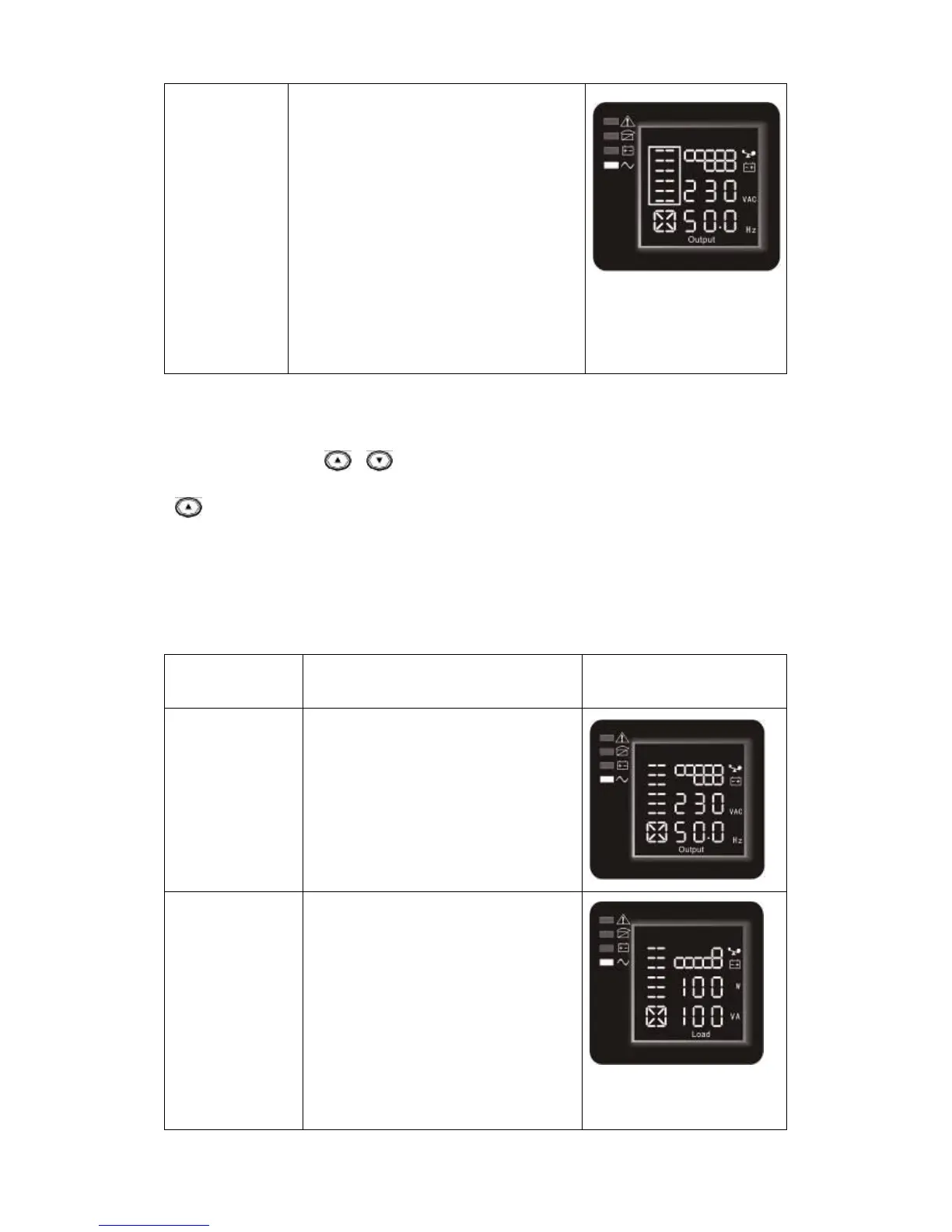

Table 5. Parameters inquiring
0TDisplay the output voltage and
output frequency of the UPS. As the
following graphic shown, the
output voltage is 230v & the output
frequency is 50Hz.
0TDisplay the numerical value of the
active power(WATT) and apparent
power(VA) of the load. For example,
as the following graphics shown:
the WATT of the load is 100w, VA is
100VA (when disconnect load, it is a
normal phenomenon to show a
small numerical value of WATT and
VA).
