4.Operation
0TThis chapter contains information on how to use the UPS, including front cover operation,
operating modes, UPS startup and shutdown, transferring the UPS between modes, and
configuring bypass settings, load segments, and battery settings.
Control Cover Functions
0TThe UPS has a three-button segmental LCD with backlight. It provides useful information about

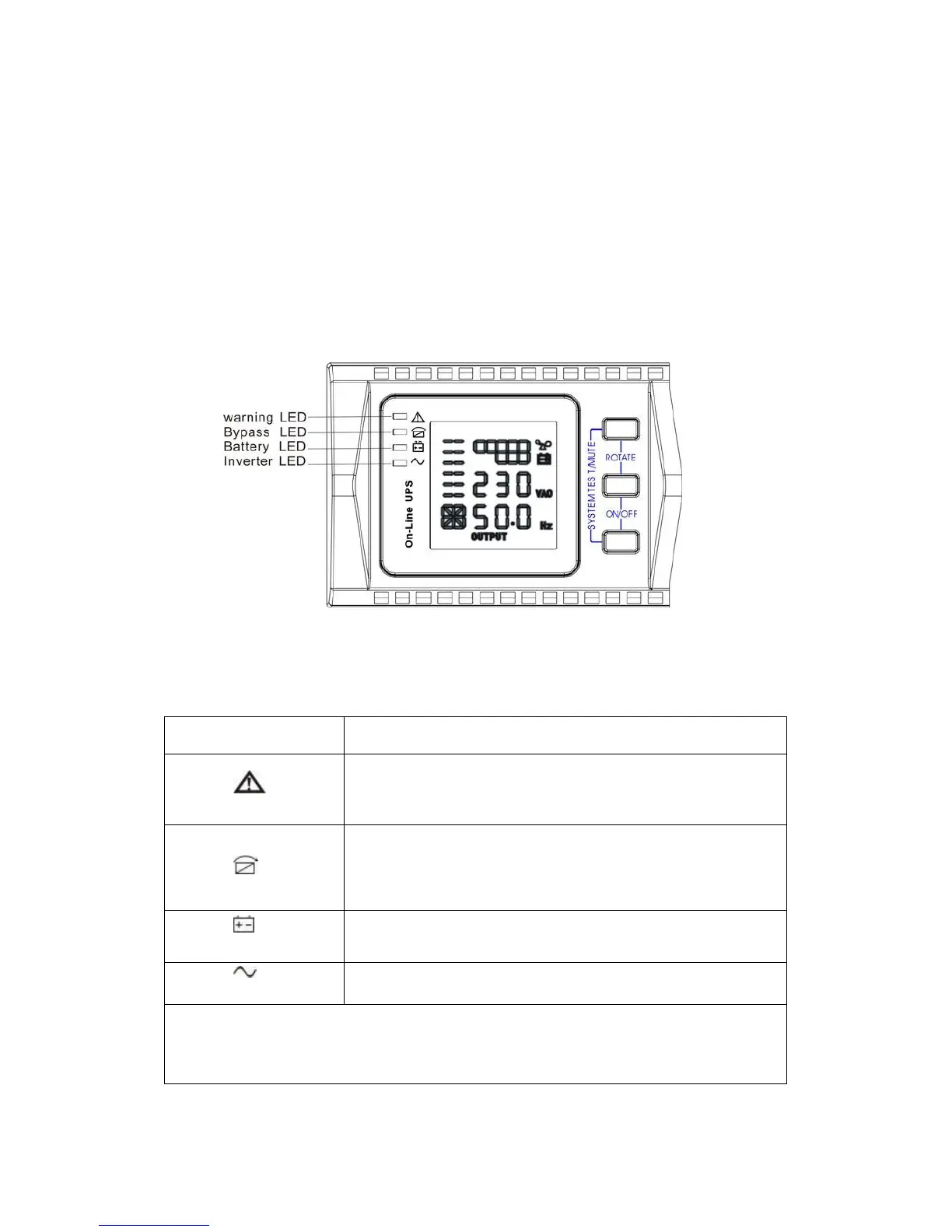

the UPS itself, load status, measurements, and settings (see Figure 16).0T
0TFigure16. 0TControl Cover
Table 1. Indicator Descriptions
Indicator
Description
0TRed
On 0T The UPS has an active alarm or fault.0T
0TYellow
On 0TThe UPS is in Bypass mode.
0TThe UPS is operating normally on bypass
during High Efficiency operation.
0TYellow
On 0T The UPS is in Battery mode.
0TGreen
On 0TThe UPS is operating normally.
NOTE 0T When power on or startup , these indicators will turn on and off sequentially.
NOTE0T On different operation modes , these indicators will indicate differently.
Refer to Table 7.
