5. Communication
0TThis section describes the:
0T● Communication ports (RS-232 and USB)
0T● Connectivity cards
0T● Emergency Power-off (EPO)
0T● Load Segments
0T● UPSilon2000 Power Management Software
0TSee “Rear Covers” on page 49 for rear cover diagrams for each model.

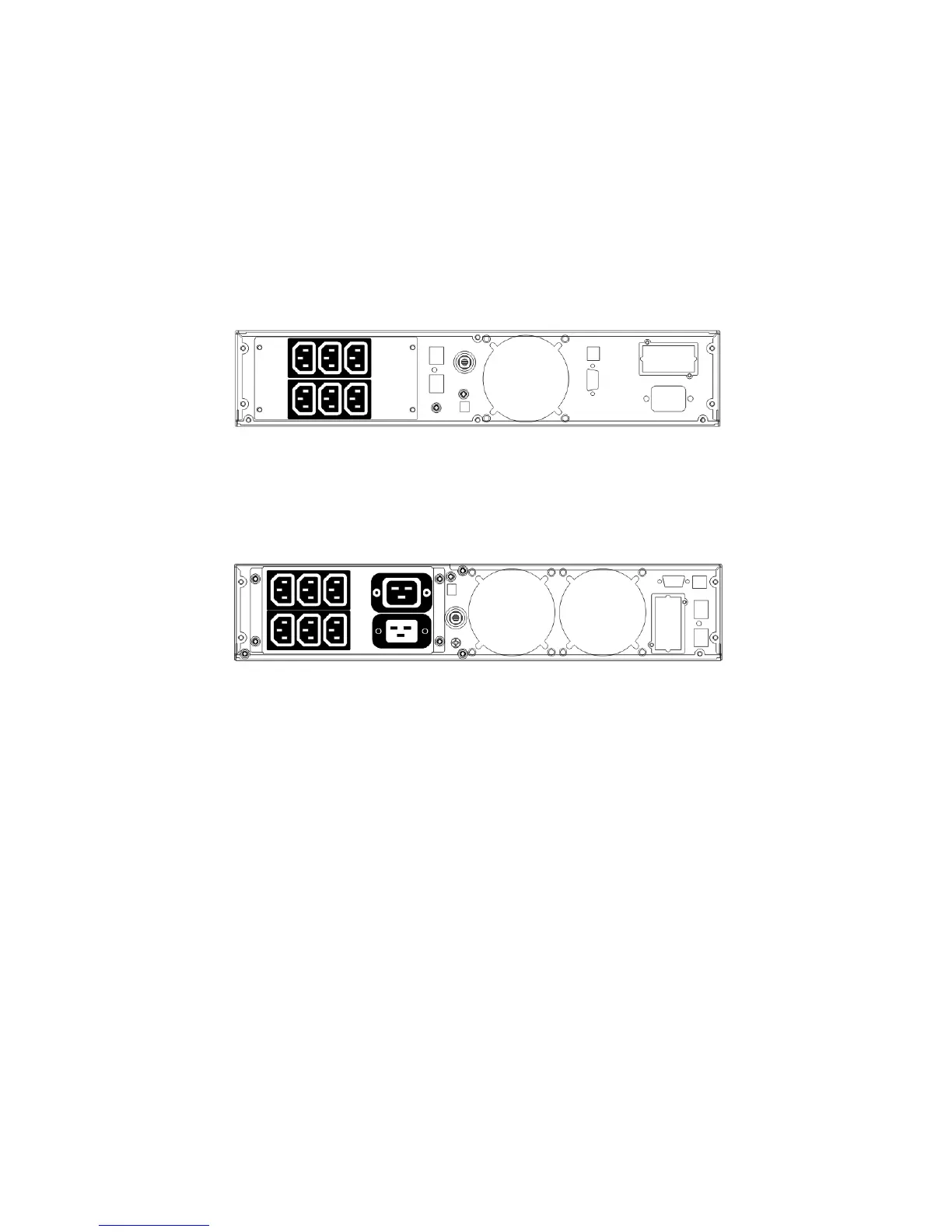

Figure 17.
Figure18
0TCommunication Options and Control Terminals
Installing Communication Options and Control Terminals
0TTo install the communication options and control terminals:
0T1. Install the appropriate connectivity card and/or necessary cable(s) and connect
the cables to the appropriate location.
0T2. Route and tie the cable(s) out of the way.
0T3. Continue to “Operation” on page 17/18 to start up the UPS.
Communication Options
0TThe UPS has serial communication capabilities through the USB and RS-232
communication ports or through a connectivity card in the available communication
bay. The UPS supports two serial communication devices according to the following
table:0T
