0T● _indicator lights for a long time
0T★ _indicator flashes
0T▲ _the status of indicator depends on other conditions
Display Functions
0TAs the default or after 5 minutes of inactivity, the LCD displays the
0Toutput parameters.
0TThe backlit LCD automatically dims after 5 minutes of inactivity. Press
0Tany button to restore the screen.
0TLCD display comprises numerical value section, capacity graphics section, fan-status graphics section
and charger-status graphics section , refer to Table 4 for detail.

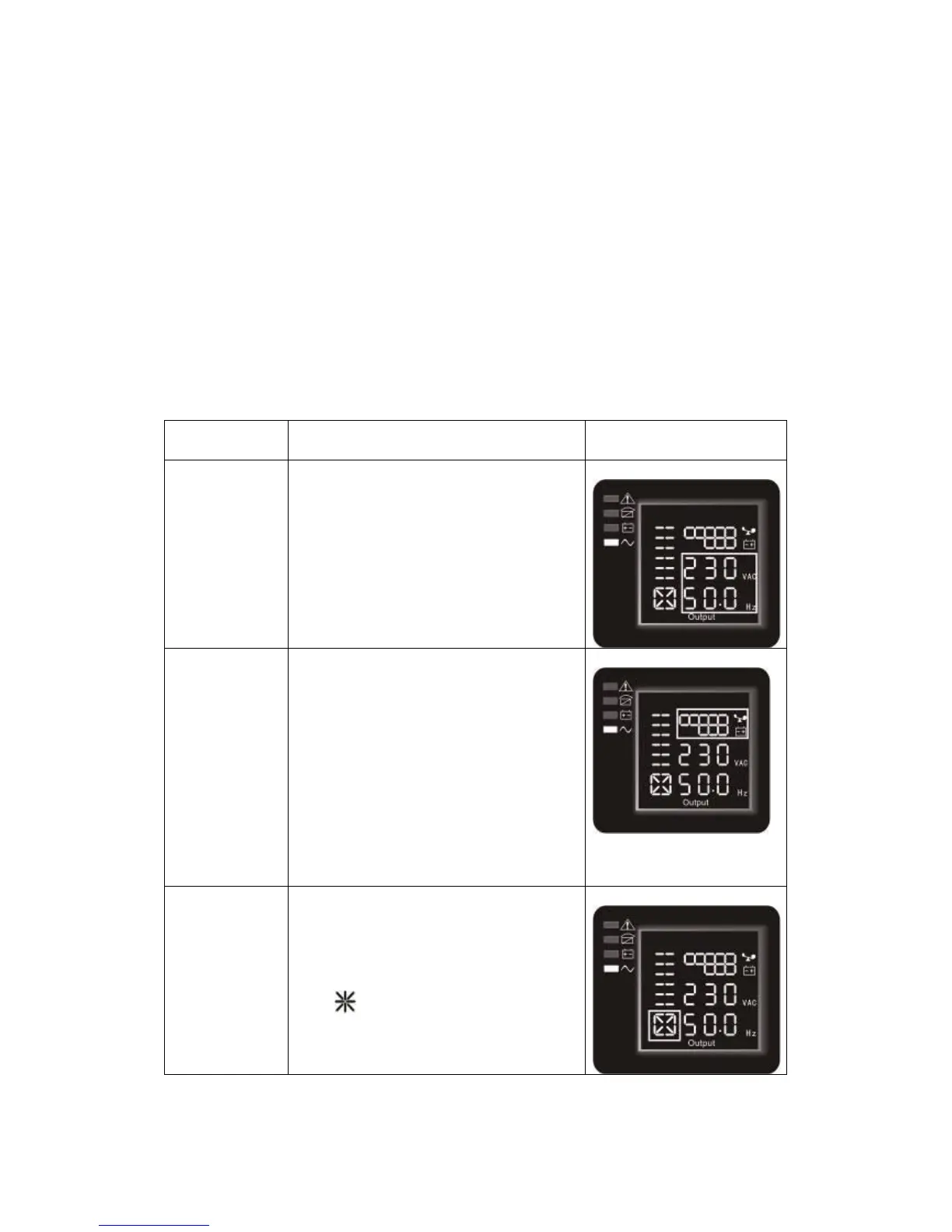

0TTable 4. LCD display section
0TSection
0TDescription
0TGraphic
0TNumerical
0Tvalue
0Tsection
0TDisplay the corresponding numerical
value of inquiring items(output, load,
temperature, input, battery), for
example, as the graphics shows above,
the output voltage is 230v, the output
frequency is 50Hz.
0TCapacity
0Tgraphics
0Tsection
0TDisplay the capacity of the battery and
load. Every pane represents 20
capacity. As graphics shown above,
the capacity of the battery is 80
-100( 5 panes), the load reaches
40 -60 (3 panes). When UPS is
overloaded, the icon will flash, when
battery is weak or disconnected, the
icon will also flash.
0TFan-status
graphics
section
0TDisplay if the fan works normally.
When the fan works normally, it will
show the dynamic fan blades rotating;
when the fan works abnormally, the
icon will keep on flashing with the
warning .
