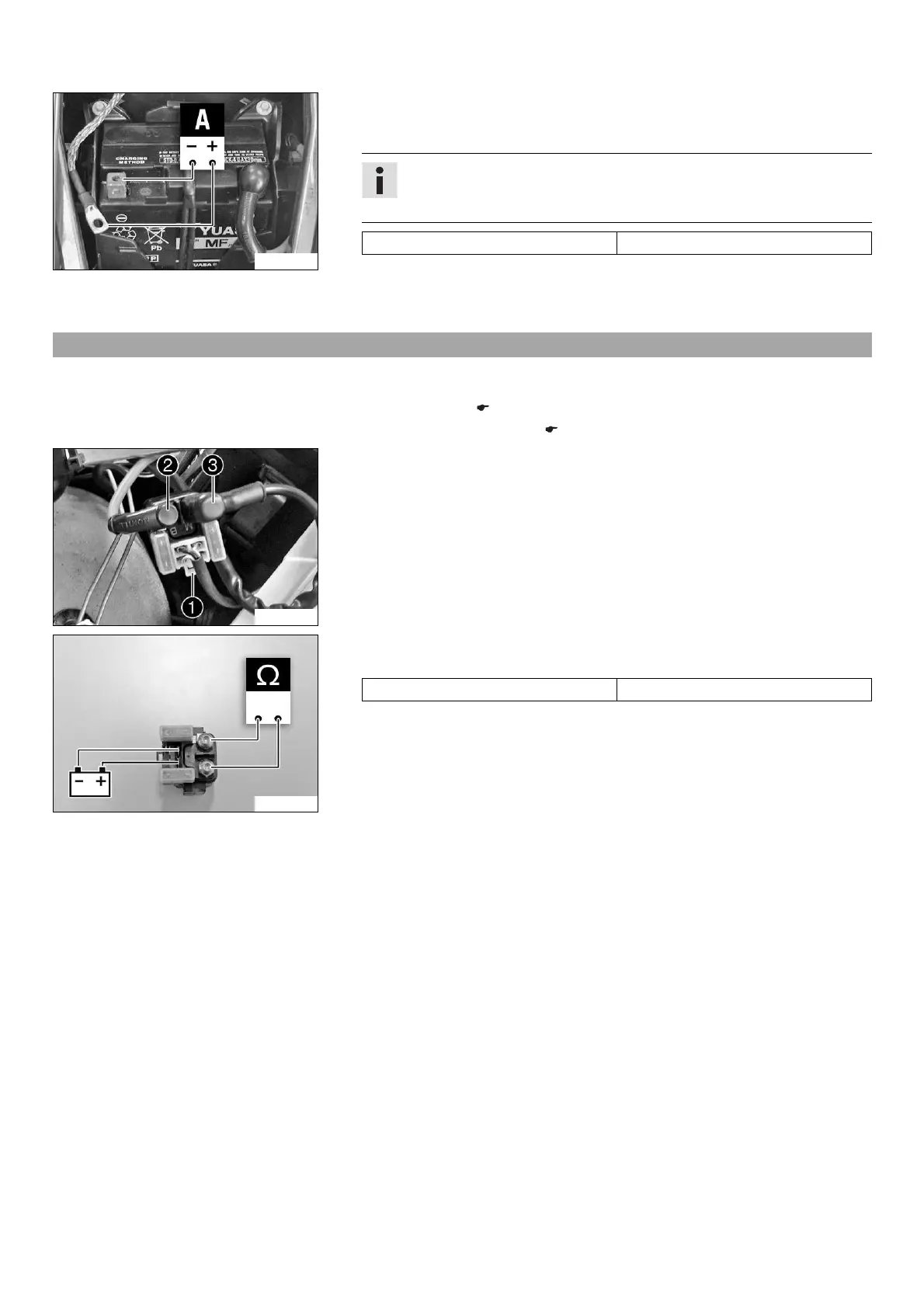

15 WIRING HARNESS, BATTERY 105
601203-10
Main work
– Disconnect the negative (minus) cable of the battery.
– Measure the current between battery ground (−) and the negative cable.
Info
The value of the open-circuit current applies only to vehicles in the original
state, i.e. without additional power consumers.
Maximum closed current < 1.0 mA
» If the measured value is higher than the specified value:
– Disconnect the voltage regulator from the wiring harness and perform the
measurement again.
15.11 Checking the starter relay
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 85)
– Remove the air filter box lid. ( p. 83)
601206-10
Main work
– Disconnect the negative (minus) cable of the battery.
– Pull the starter relay off of the bracket.
– Pull off connector
1
.
– Disconnect cables
2
and
3
from the starter relay.
601201-10
– Connect the starter relay to a 12 V power supply as shown in the figure.
– Measure the resistance between the specified points.
Resistance of open circuit 0 Ω
» If the display does not equal the setpoint value:
– Change the starter relay.
