KTM 250 EXC EU User Manual

18 ENGINE 139
308149-10

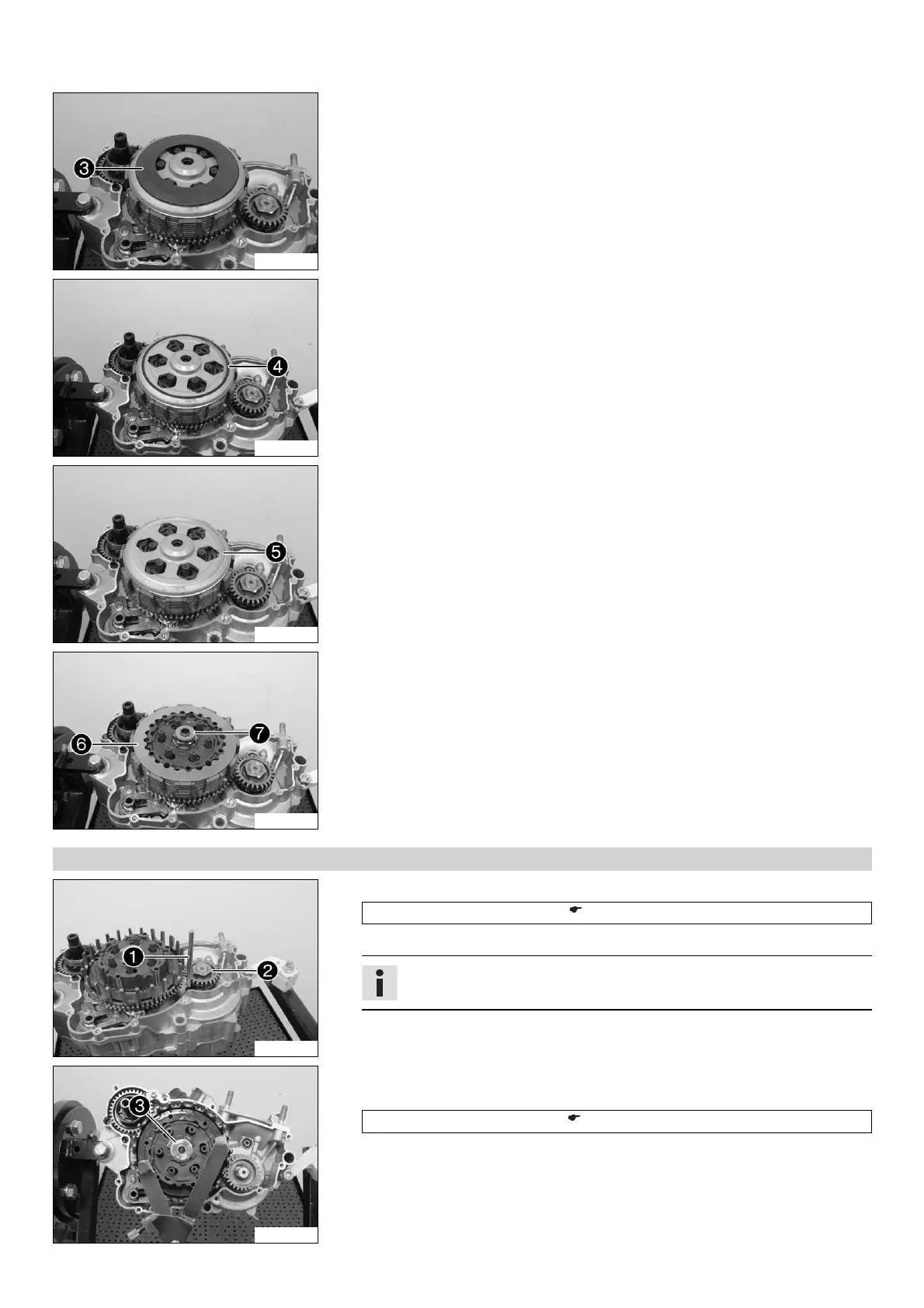

– Take off spring washer
3
.
308150-10
– Take off pretension ring
4
.
308151-10
– Take off pressure cap
5
.
308152-10
– Remove clutch disc pack
6
entirely.
– Remove clutch pressure piece
7
.
18.3.15 Removing the clutch basket
308155-10
– Hold the primary gear using special tool
1
.
Gear segment (56012004000) ( p. 274)
– Remove nut
2
with the washer.
Info
Left-handed thread!
308156-10
– Bend up the lock washer.
– Hold the inner clutch hub with the special tool. Loosen nut
3
.
Clutch holder (51129003000) ( p. 273)
– Remove the nut with the lock washer.

KTM 250 EXC EU Specifications

General

Transmission	6-speed
Ignition	Kokusan
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 18"
Seat Height	960 mm
Engine Type	2-stroke
Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid-cooled
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR shock absorber with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Capacity	9 l
