KTM 250 EXC EU User Manual

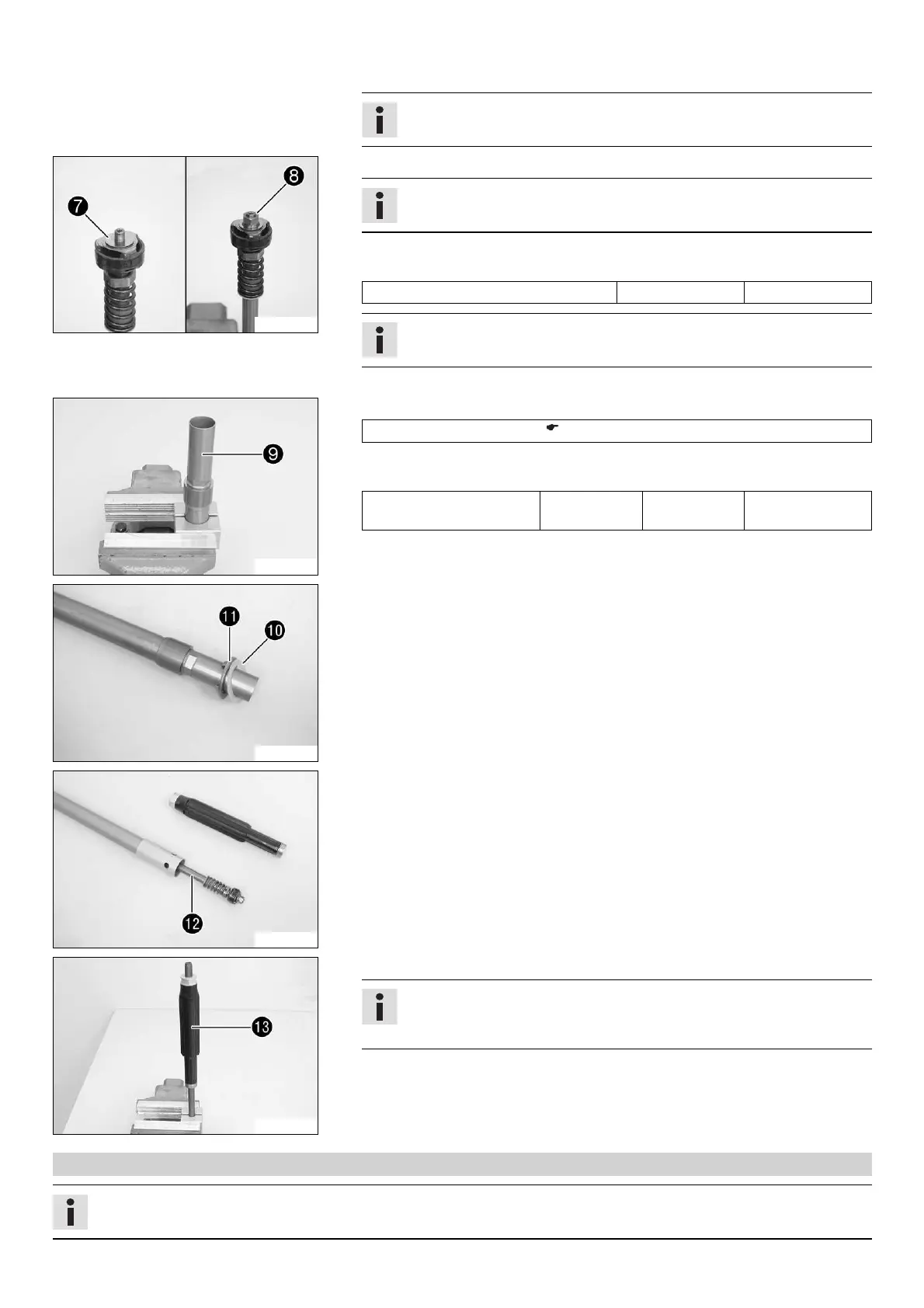

6 FORK, TRIPLE CLAMP 24
Info
The side with the largest inside diameter faces downward.
200720-10
– Mount shim stack
7
.
Info
Align the triangular plate exactly with the piston opening.
– Mount and tighten nut
8
.
Guideline
Tap rebound nut M6x0.5 5 Nm (3.7 lbf ft)
Info
Mount the nut with the collar facing downward.
– Secure the nut by locking.
200749-11
– Degrease the cartridge and clamp using the special tool.
Clamping stand (T14015S) ( p. 278)
– Mount and tighten screwsleeve
9
.
Guideline
Screwsleeve M29x1 46 Nm
(33.9 lbf ft)
Loctite
®
241
200748-11
– Mount washer
bk
and spring seat
bl
.
200747-11
– Push piston rod
bm
into the cartridge.
200746-11
– Screw on fluid barrier
bn
to the stop.
Info
The fluid barrier must be screwed on tightly against the stop. Do not use a
tool.
6.1.19 Assembling the fork legs
Info
The steps are identical for both fork legs.

KTM 250 EXC EU Specifications

General

Transmission	6-speed
Ignition	Kokusan
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 18"
Seat Height	960 mm
Engine Type	2-stroke
Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid-cooled
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR shock absorber with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Capacity	9 l
