KTM 250 EXC EU User Manual

18 ENGINE 124
18.1 Removing the engine
Preparatory work
(250/300 SIX DAYS)
– Remove the engine guard. ( p. 57)
– Raise the motorcycle with the lift stand. ( p. 10)
– Remove the seat. ( p. 85)
– Remove the fuel tank. ( p. 86)
– Disconnect the negative (minus) cable of the battery. ( p. 102)
– Drain the coolant. ( p. 196)
– Remove the main silencer. ( p. 81)
308540-10
Main work

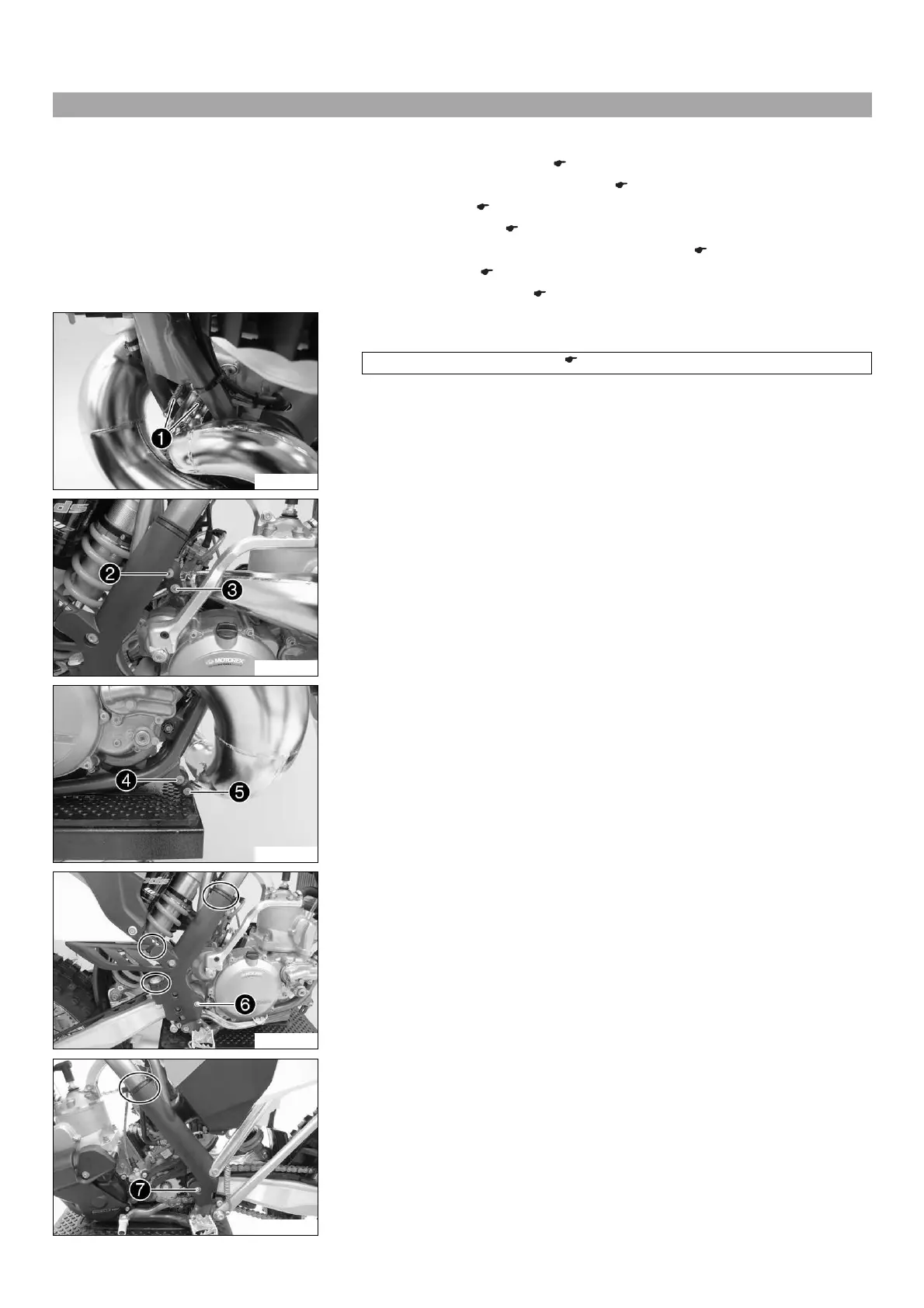

– Remove springs
1
.
Spring hooks (50305017000) ( p. 272)
308541-10
– Loosen screw
2
.
– Remove screw
3
.
308542-10
– Loosen screw
4
.
– Remove screw
5
.
– Take off the exhaust manifold.
308543-10
– Loosen screw
6
.
– Remove the cable binders.
– Take off the frame protector.
308544-10
– Loosen screw
7
.
– Remove the cable binder.
– Take off the frame protector.

KTM 250 EXC EU Specifications

General

Transmission	6-speed
Ignition	Kokusan
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 18"
Seat Height	960 mm
Engine Type	2-stroke
Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid-cooled
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR shock absorber with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Capacity	9 l
