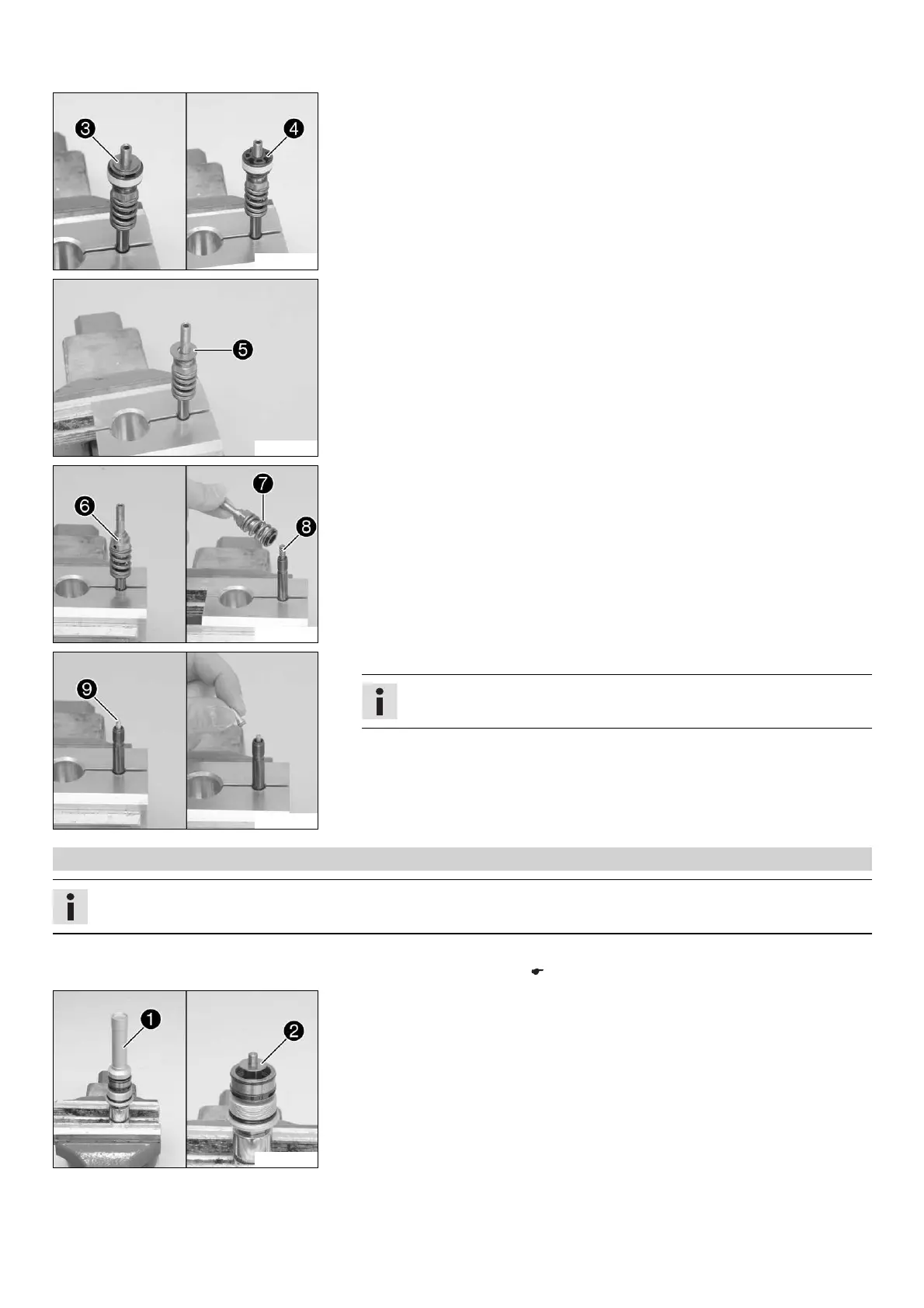

6 FORK, TRIPLE CLAMP 41
201729-10
– Remove the rebound shim stack
3
.
– Remove piston
4
.
201730-10
– Remove the compression shim stack
5
.
– Remove spring.
201788-10
– Remove adapter
6
with spring
7
and washer.
– Remove spring
8
.
201789-10
– Remove valve needle
9
from the piston rod.
Info
The adjusting tube can be used for this.
6.2.16 Disassembling the hydrostop unit
Info
The steps are identical for both fork legs.
Preparatory work
– Disassemble the fork legs. ( p. 36)
201780-10
Main work
– Mount the hydrostop unit on a fitting hexagon socket and clamp into a vice.
– Remove sleeve
1
.
– Remove shim stack
2
.
