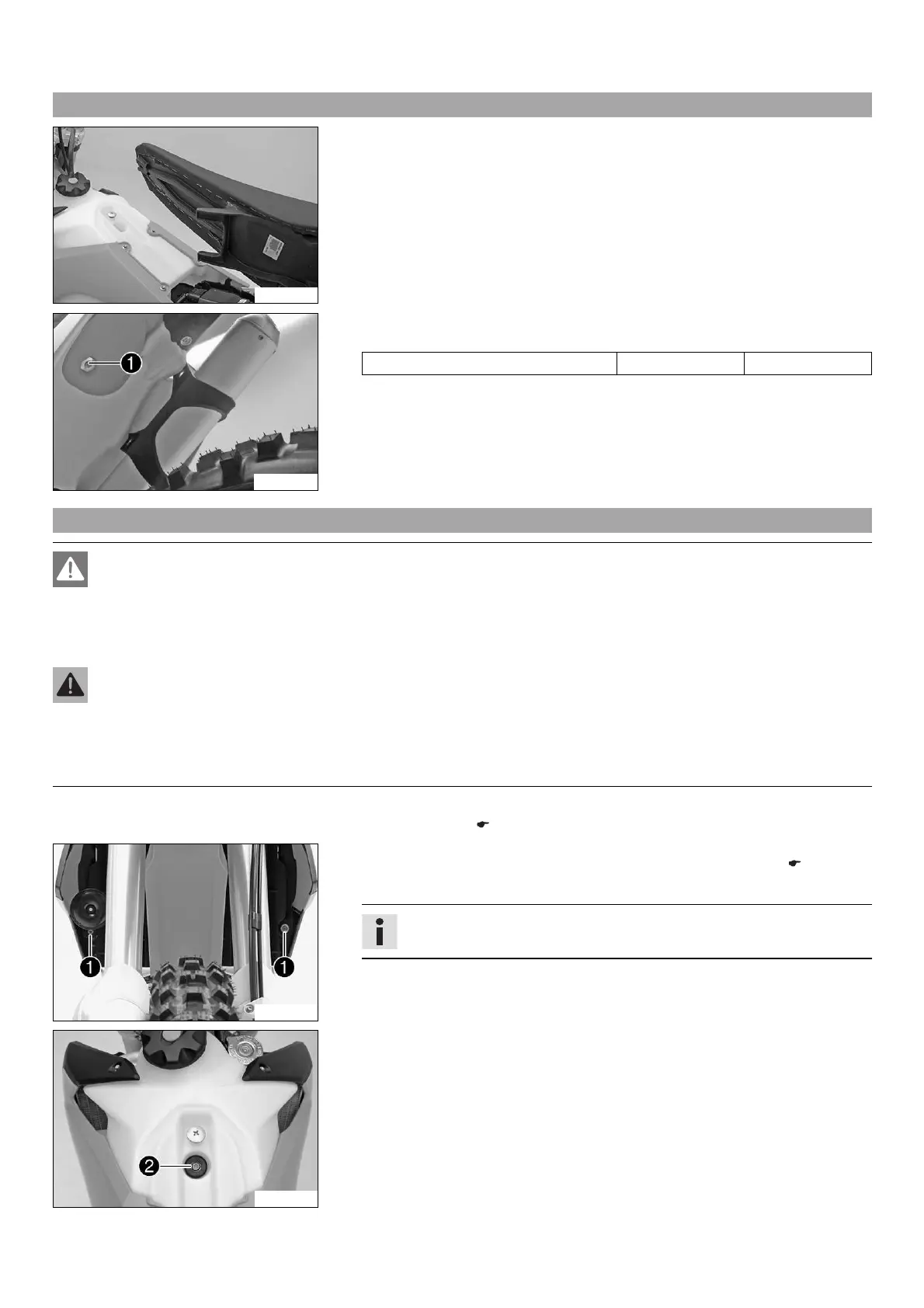

12 FUEL TANK, SEAT, TRIM 86
12.4 Mounting the seat
602715-01
– Hook in the front of the seat at the collar bushing of the fuel tank, lower at the rear
and simultaneously push forward.
– Make sure that the seat is correctly locked in.
B00817-10
– Mount and tighten screw
1
of the seat fixation.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
12.5 Removing the fuel tank
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Preparatory work
– Remove the seat. ( p. 85)
602742-10
Main work
– Turn handle
1
of the fuel tap to the OFF position. (Figure 602702-10 p. 88)
– Pull off the fuel hose.
Info
Remaining fuel may run out of the fuel hose.
– Remove screws
1
with the collar sleeve.
(All 250/300 EXC models)
– Hang the horn and horn bracket to one side.
602720-11
– Remove screw
2
with the rubber bushing.
– Remove the tube from the fuel tank vent line.
