7 HANDLEBAR, CONTROLS 55

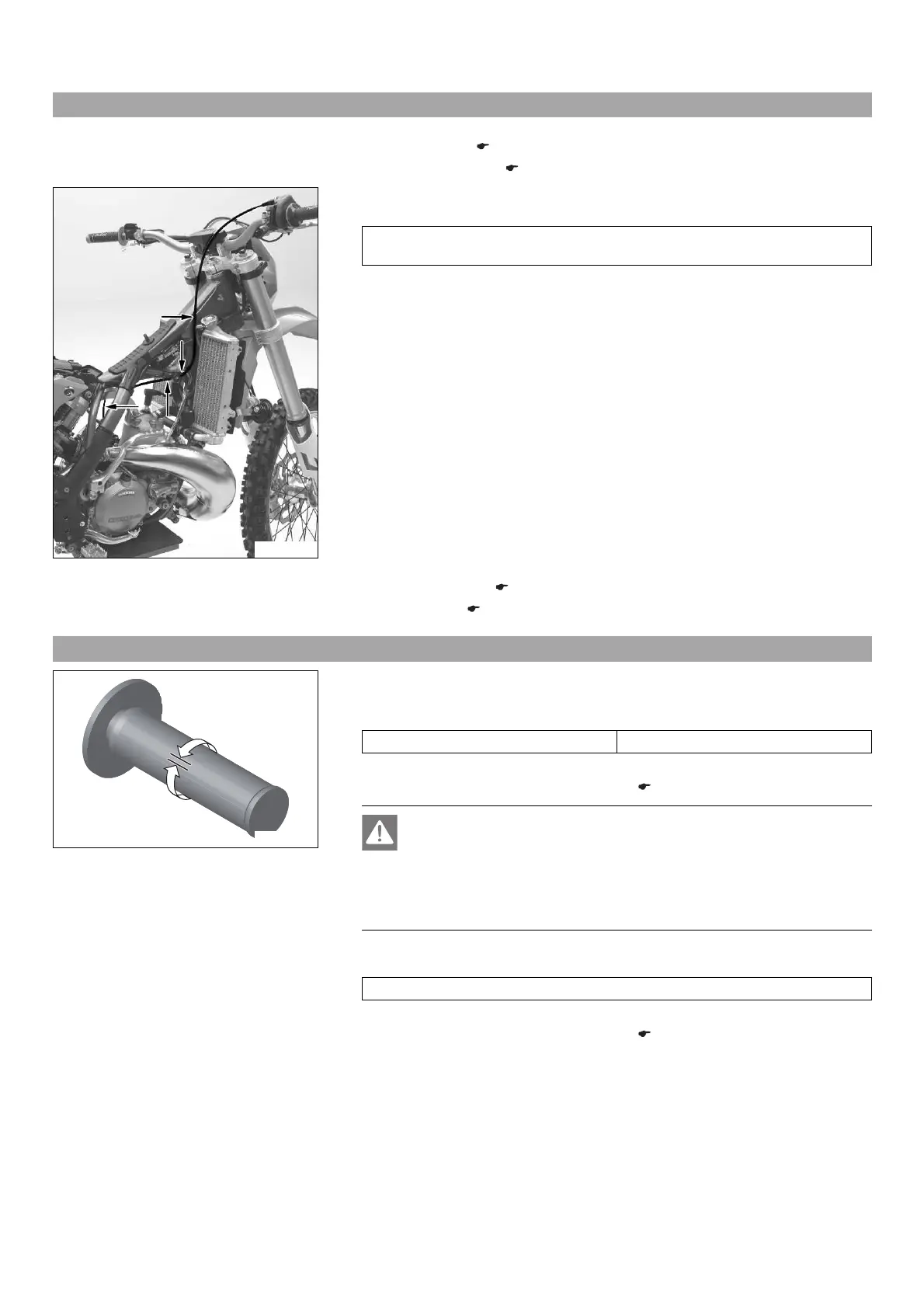

7.4 Checking the routing of the throttle cable
Preparatory work
– Remove the seat. ( p. 85)
– Remove the fuel tank. ( p. 86)
C00502-10
Main work
– Check the routing of the throttle cable.
The throttle cable must be routed behind the handlebar, on the right of the
upper frame tube, and to the carburetor.
» If the throttle cable is not routed as specified:
– Correct the routing of the throttle cable.
Finishing work
– Install the fuel tank. ( p. 87)
– Mount the seat. ( p. 86)
7.5 Checking the play in the throttle cable
400192-10
– Check the throttle grip for smooth operation.
– Move the handlebar to the straight-ahead position. Move the throttle grip back-
wards and forwards to ascertain the play in the throttle cable.
Play in throttle cable 3… 5 mm (0.12… 0.2 in)
» If the throttle cable play does not meet specifications:
– Adjust the play in the throttle cable. ( p. 56)
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result
in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
– Start the engine and let it run idle. Move the handlebar to and fro over the entire
steering range.
The idle speed must not change.
» If the idle speed changes:
– Adjust the play in the throttle cable. ( p. 56)
