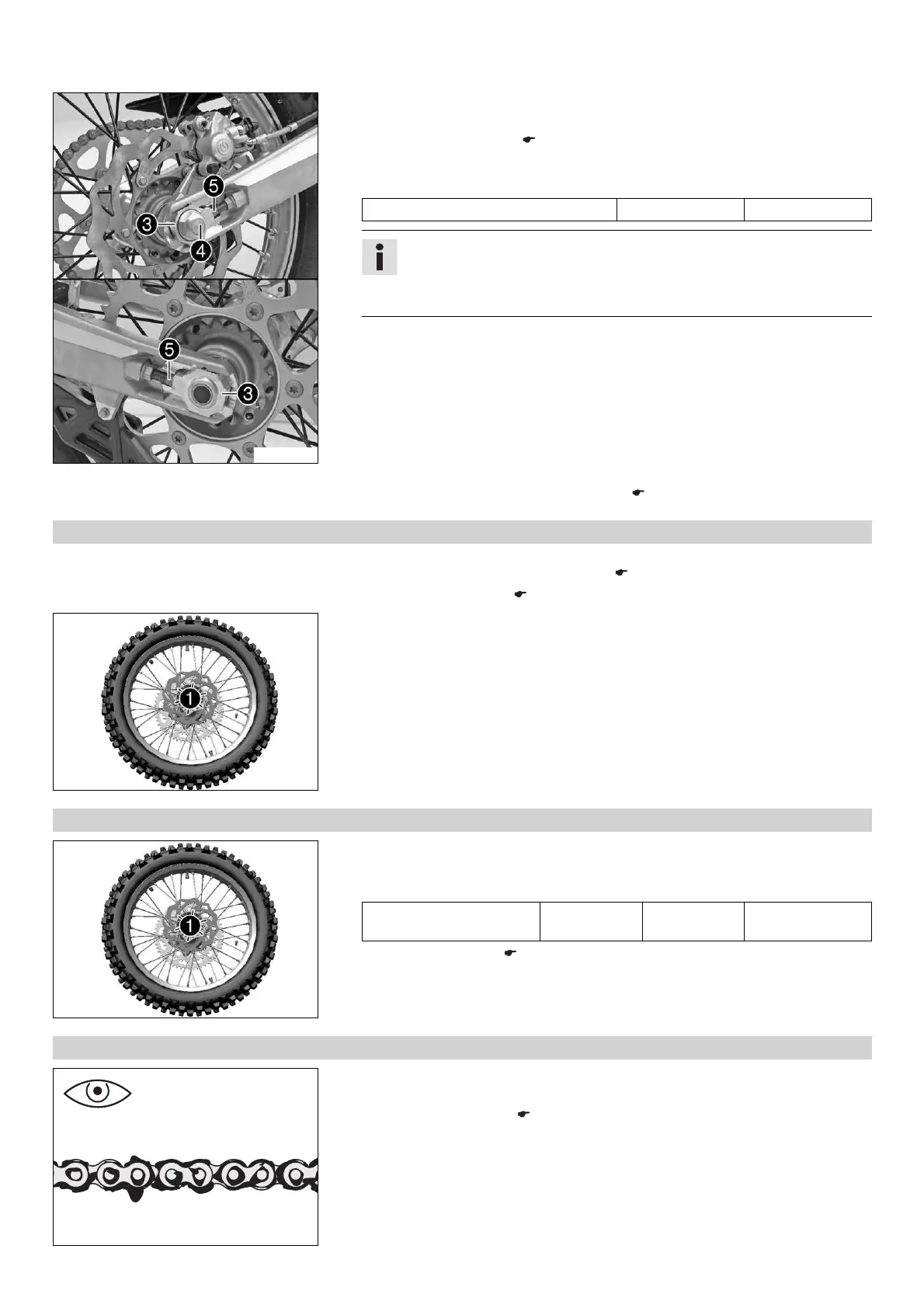

14 WHEELS 96
B01556-10
– Position chain adjuster
3
. Mount nut
4
, but do not tighten it yet.
– Make sure that chain adjusters
3
are fitted correctly on adjusting screws
5
.
– Check the chain tension. ( p. 97)
– Tighten nut
4
.
Guideline
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters (32 mm (1.18 in))
enables different secondary ratios with the same chain length.
Chain adjusters
3
can be turned by 180°.
– Operate the foot brake lever several times until the brake linings are lying correctly
against the brake disc and there is a pressure point.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 10)
14.6.3 Removing the brake disc of the rear brake
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 10)
– Remove the rear wheel. ( p. 94)
303560-10
Main work
– Remove screws
1
. Take off the brake disc.
14.6.4 Installing the brake disc of the rear brake
303560-10
– Clean the contact surface of the brake disc.
– Position the brake disc with the label facing outward. Mount and tighten screws
1
.
Guideline
Screw, rear brake disc M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
– Install the rear wheel. ( p. 95)
14.6.5 Checking the chain for dirt
400678-01
– Check the chain for heavy soiling.
» If the chain is very dirty:
– Clean the chain. ( p. 97)
