KTM 250 EXC EU User Manual

6 FORK, TRIPLE CLAMP 29

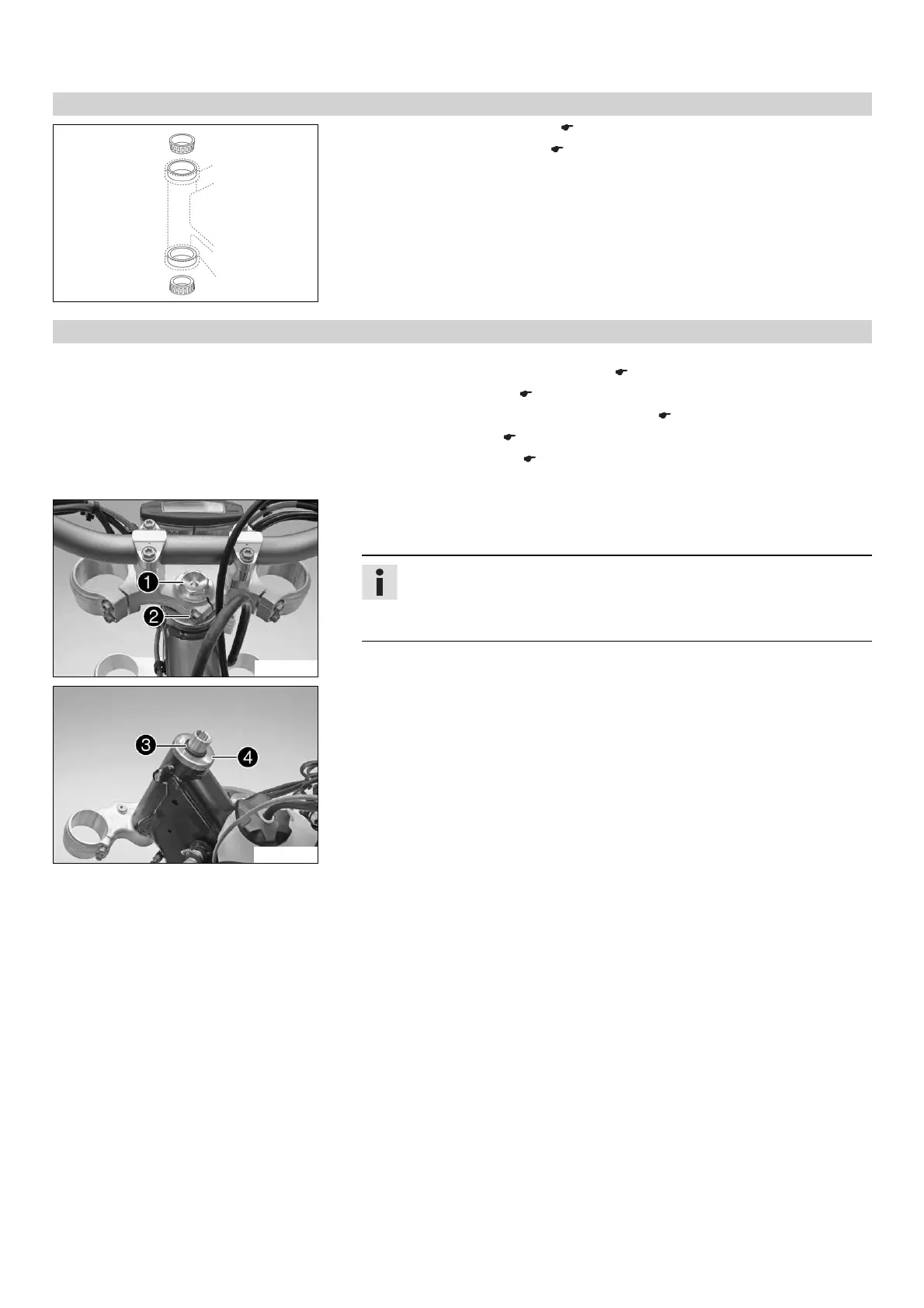

6.1.20 Greasing the steering head bearing
800010-10
– Remove the lower triple clamp. ( p. 29)
– Install the lower triple clamp. ( p. 30)
6.1.21 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 10)
– Remove the front wheel. ( p. 93)
– Remove the headlight mask with the headlight. ( p. 89)
– Remove the fork legs. ( p. 34)
– Remove the front fender. ( p. 89)
– Remove the handlebar cushion.
602725-10
Main work
– Remove screw
1
. Loosen screw
2
. Take off the upper triple clamp with the han-
dlebar and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
B00806-10
– Remove O-ring
3
. Remove protective ring
4
.
– Take out the lower triple clamp with the steering stem.
– Take out the upper steering head bearing.

KTM 250 EXC EU Specifications

General

Transmission	6-speed
Ignition	Kokusan
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 18"
Seat Height	960 mm
Engine Type	2-stroke
Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid-cooled
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR shock absorber with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Capacity	9 l
