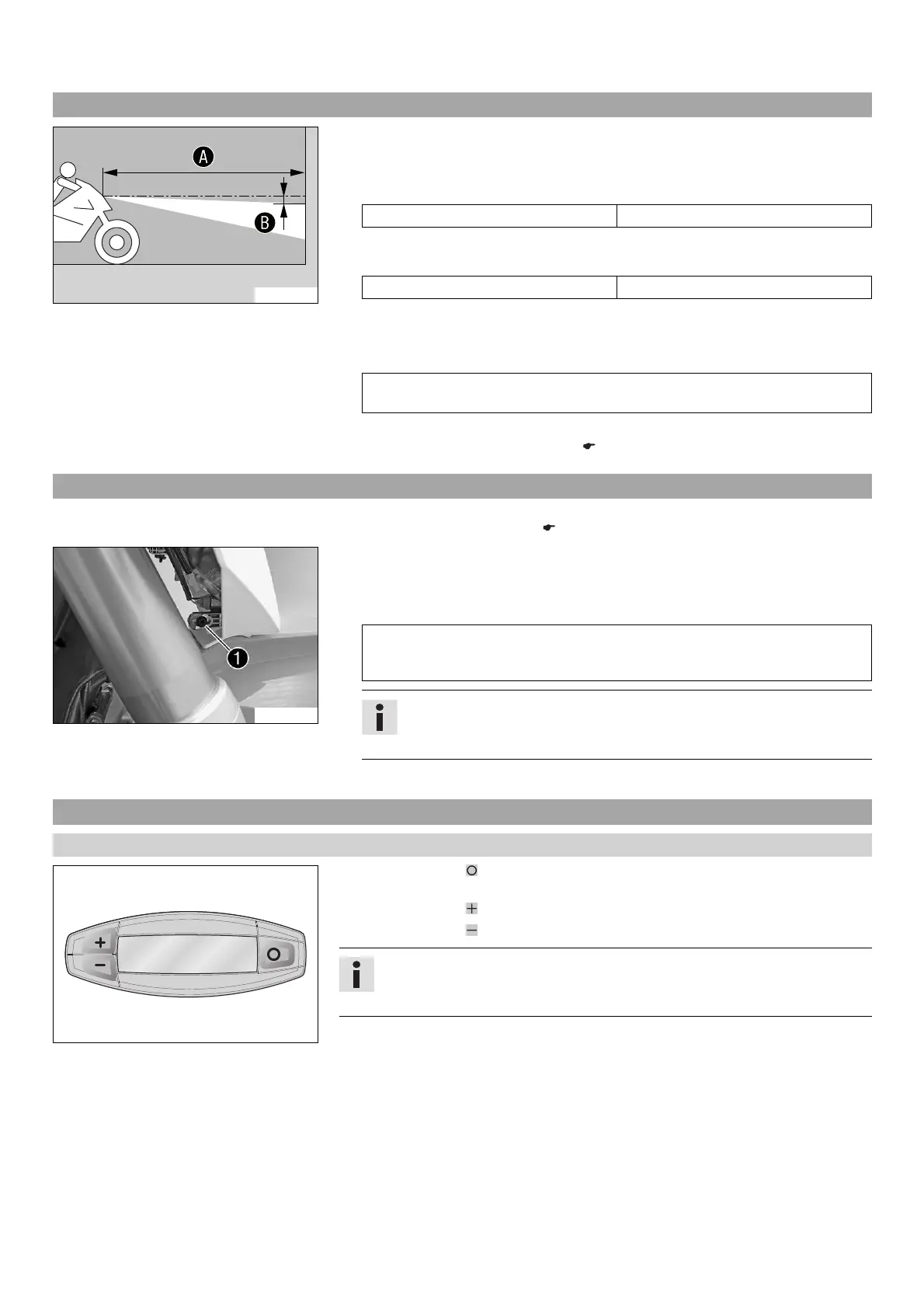

17 LIGHTING SYSTEM, INSTRUMENTS 117
17.1 Checking the headlight setting
400726-10
Position the vehicle upright on a horizontal surface in front of a light wall and make
a mark at the height of the center of the low beam headlight.
Make another mark a distance
B
under the first mark.
Guideline
Distance
B
5 cm (2 in)
Position the vehicle vertically a distance
A
away from the wall.
Guideline
Distance
A
5 m (16 ft)
The rider now sits down on the motorcycle.
Switch on the low beam.
Check the headlight setting.
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver.
» If the light-dark border does not meet specifications:
Adjust the headlight range. ( p. 117)
17.2 Adjusting the headlight range
Preparatory work
Check the headlight setting. ( p. 117)
602764-10
Main work
Loosen screw
1
.
Adjust the headlight range by swiveling the headlight.
Guideline
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver (instructions on how to apply the mark: Checking the
headlight setting).
Info
The headlight range may need to be corrected if luggage is carried on the
vehicle.
Tighten screw
1
.
17.3 EXC EU/AUS, XCW
17.3.1 Speedometer overview
400312-01
Press the button to change the display mode or change to one of the Setup
menus.
Press the button to control different functions.
Press the button to control different functions.
Info
When the vehicle is delivered, only the SPEED/H and SPEED/ODO display modes
are activated.
