KTM 250 EXC EU User Manual

9 SHOCK ABSORBER, SWINGARM 68
200806-10

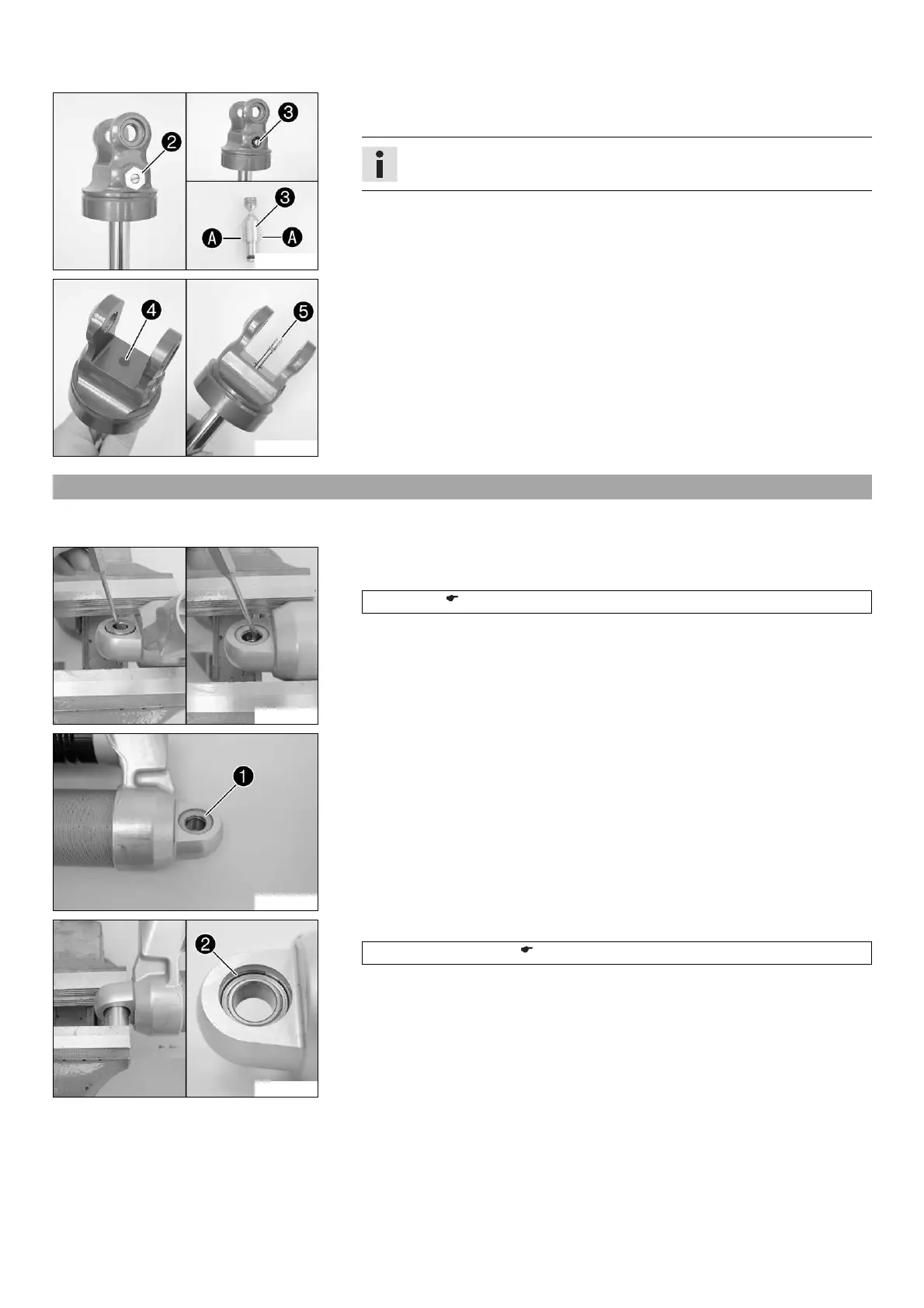

– Remove screwsleeve
2
.
– Remove adjusting screw
3
.
Info
Do not lose balls
A
and spring.
200807-10
– Remove rubber plug
4
.
– From the opposite side, press rebound needle
5
out of the piston rod.
9.19 Removing the heim joint
Condition
The shock absorber has been demounted.
200799-10
– Clamp the shock absorber in a vise using soft jaws.
– Remove the collar bushing of the heim joint.
Pin (T120) ( p. 276)
– Turn the shock absorber around and remove the second heim joint collar bushing.
200800-10
– Remove seal ring
1
on both sides.
200801-10
– Press the heim joint against a lock ring using the special tool.
Pressing tool (T1207S) ( p. 277)
– Remove the second lock ring
2
.

KTM 250 EXC EU Specifications

General

Transmission	6-speed
Ignition	Kokusan
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 18"
Seat Height	960 mm
Engine Type	2-stroke
Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid-cooled
Front Suspension	WP Xplor 48, USD fork
Rear Suspension	WP XPLOR shock absorber with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Capacity	9 l
