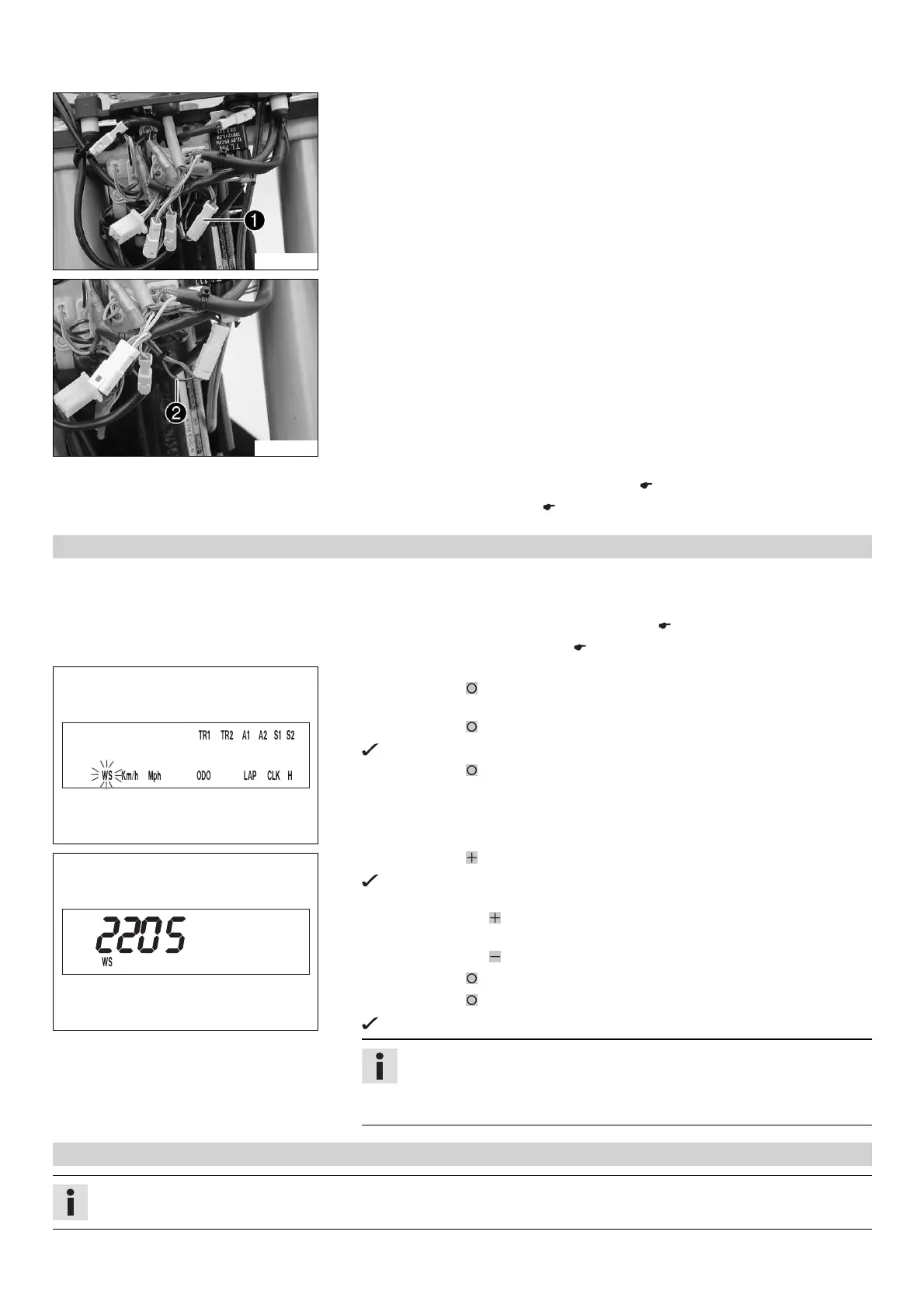

17 LIGHTING SYSTEM, INSTRUMENTS 120
301287-10
Main work
– Expose connector CZ
1
.
301288-10
– Sever the black/brown cable
2
.
– Insulate both cable ends.
Finishing work
– Refit the headlight mask with the headlight. ( p. 90)
– Check the headlight setting. ( p. 117)
17.3.7 Setting the wheel circumference
Condition
The motorcycle is stationary.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 89)
– Activate the additional functions. ( p. 119)
400315-01
Main work
– Press the button briefly and repeatedly until H appears at the bottom right of the
display.
– Press the button for 3 - 5 seconds.
The setup menu is displayed and the active functions shown.
– Press the button until the WS indicator blinks.
400314-01
– Press the button .
The wheel circumference is displayed in millimeters.
Enlarging the wheel circumference
– Press the button .
Reducing the wheel circumference
– Press the button .
– Press the button briefly.
– Press the button for 3 - 5 seconds.
The settings are stored and the setup menu is closed.
Info
If no button is pressed for 20 seconds, or if no impulse comes from the
wheel speed sensor, the settings are automatically saved and the Setup
menu is closed.
17.3.8 Querying lap time
Info
This function can be called up only if lap times are measured.
