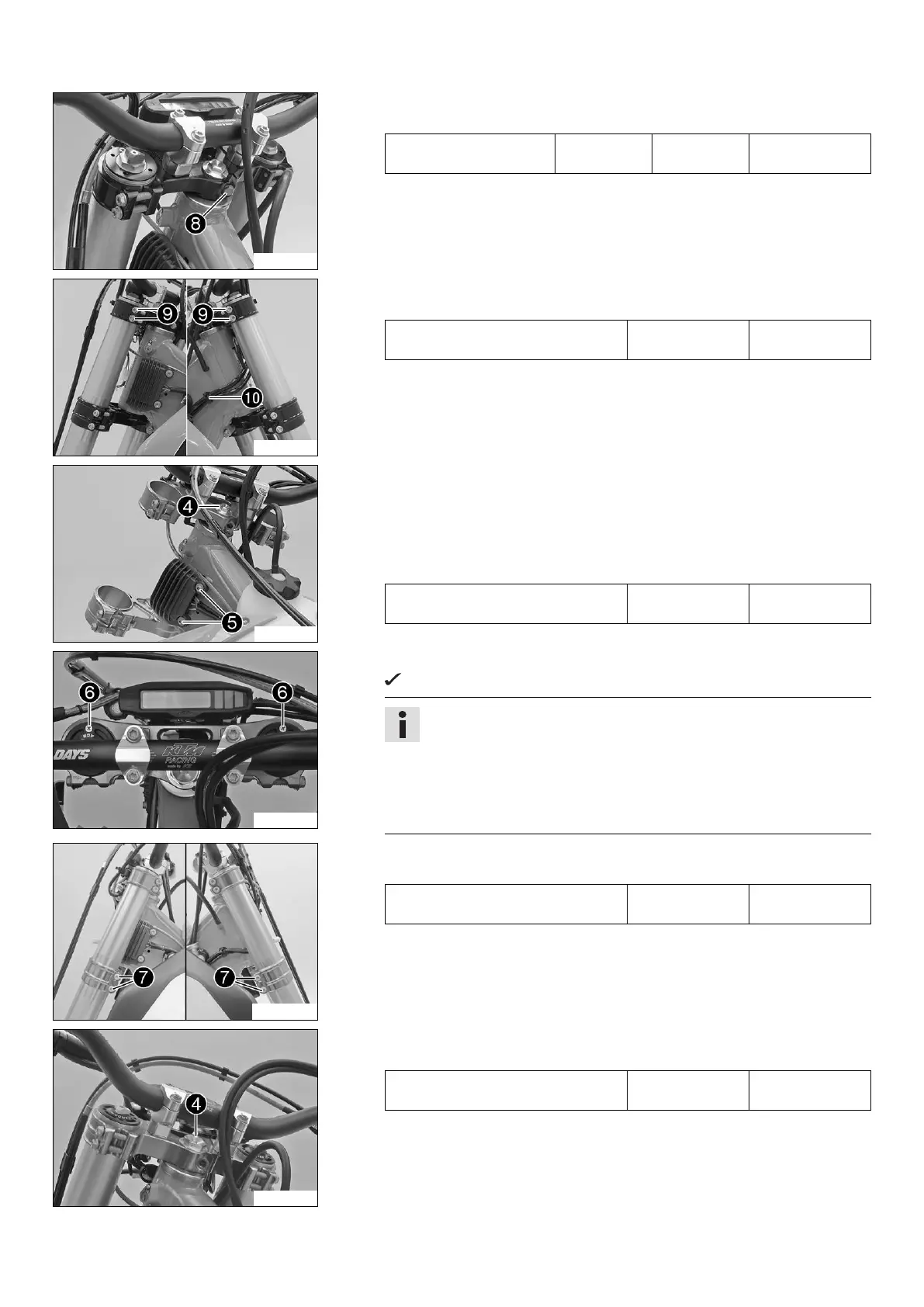

12 SERVICE WORK ON THE CHASSIS 57
K00092-10
–
Mount and tighten screw
.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
K00090-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Secure the wiring harness with cable holder
.
S00652-10
(EXC Six Days)
– Position the upper triple clamp with the handlebar.
–
Mount screw
but do not tighten yet.
– Position the clutch line, wiring harness, and voltage regulator. Mount and
tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
B01598-10
– Position the fork legs.
Bleeder screws
are positioned toward the front.
Info
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP
(white adjusting screw).
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
M00139-10
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
B01232-10
–
Tighten screw
.
Guideline
Screw, top steering head M20x1.5 12 Nm
(8.9 lbf ft)
