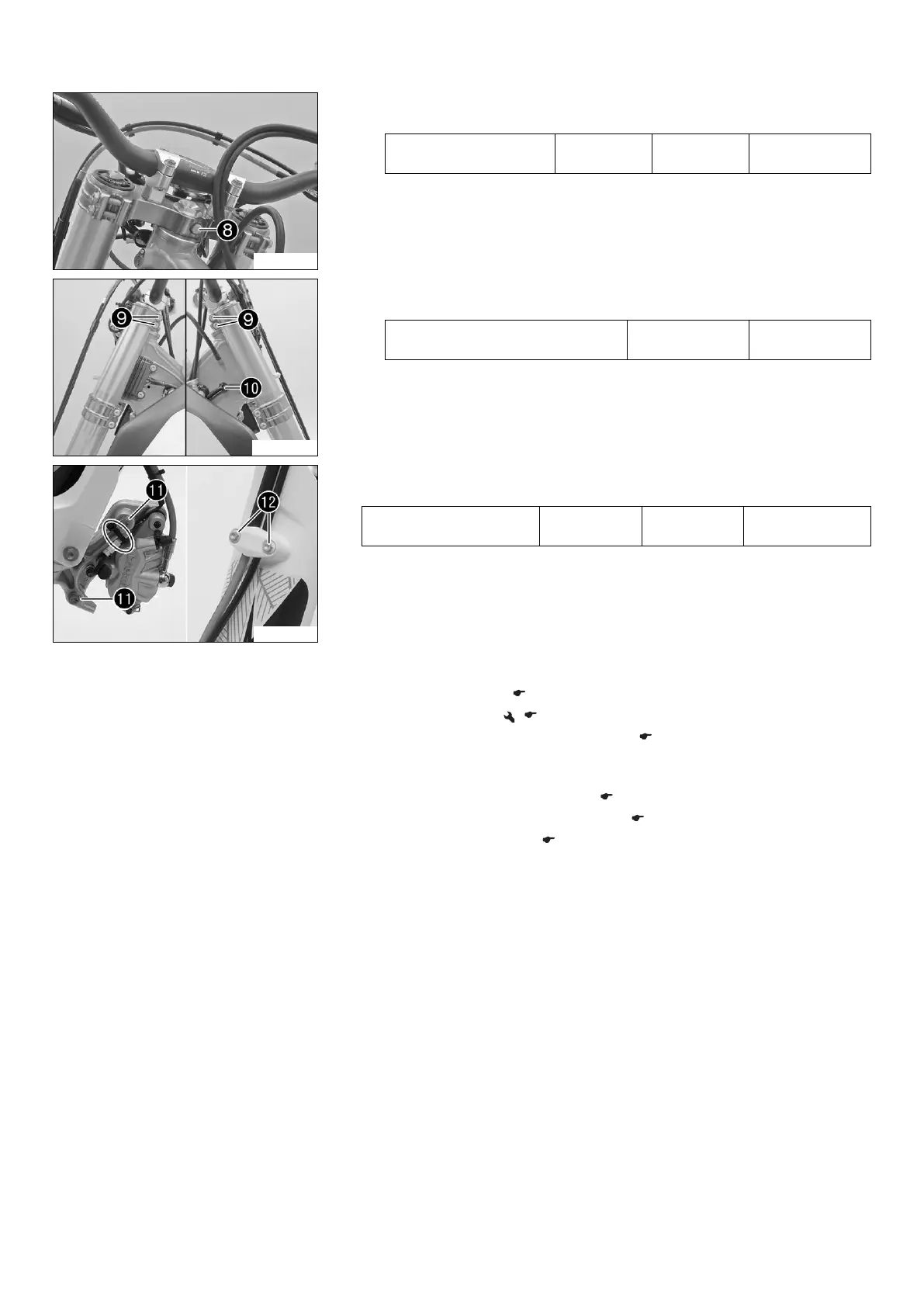

12 SERVICE WORK ON THE CHASSIS 58
B01233-10
–
Mount and tighten screw
.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
M00139-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Secure the wiring harness with cable holder
.
K00088-11
–
Position the brake caliper. Mount and tighten screws
.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Mount the cable binder.
–
Position the brake line, wiring harness, and clamp. Mount and tighten screws
.
Finishing work
– Mount the handlebar cushion.
– Install the front fender. ( p. 63)
– Install the front wheel. ( p. 88)
– Refit the headlight mask with the headlight. ( p. 97)
– Check that the wiring harness, throttle cables and brake and clutch lines can move
freely and are routed correctly.
– Check the steering head bearing play. ( p. 60)
– Remove the motorcycle from the lift stand. ( p. 50)
– Check the headlight setting. ( p. 99)
