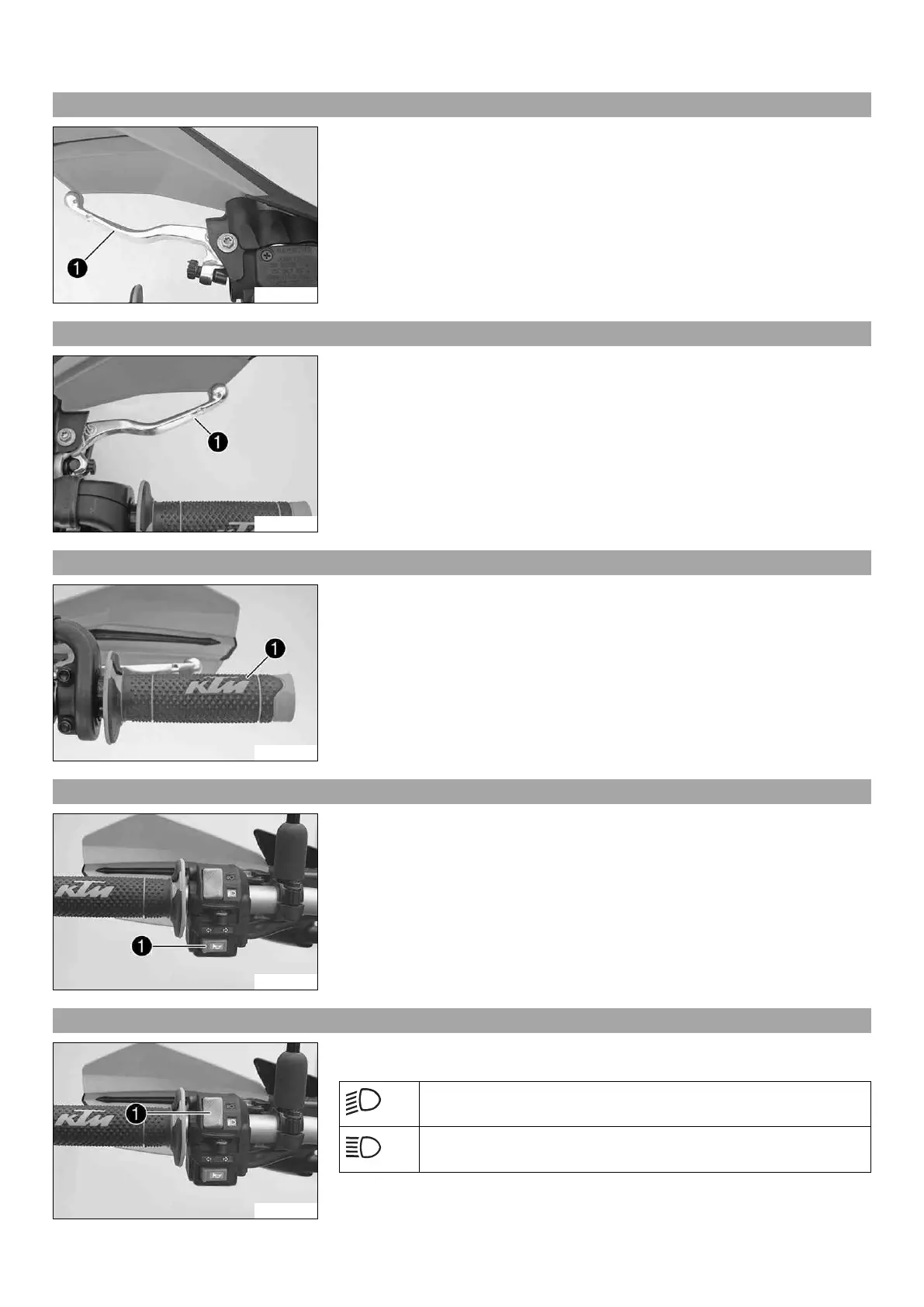

6 CONTROLS 16
6.1 Clutch lever
S00052-11
The clutch lever 1 is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
101629-10
Hand brake lever 1 is located on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
101630-10
The throttle grip 1 is fitted on the right side of the handlebar.
6.4 Horn button
S00019-10
The horn button 1 is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
6.5 Light switch
S00019-11
The light switch 1 is fitted on the left side of the handlebar.
Possible states
Low beam on – The light switch is turned downward. In this position,
the low beam and tail light are switched on.
High beam on – The light switch is turned upward. In this position, the
high beam and the tail light are switched on.
