14 ELECTRICAL SYSTEM 86

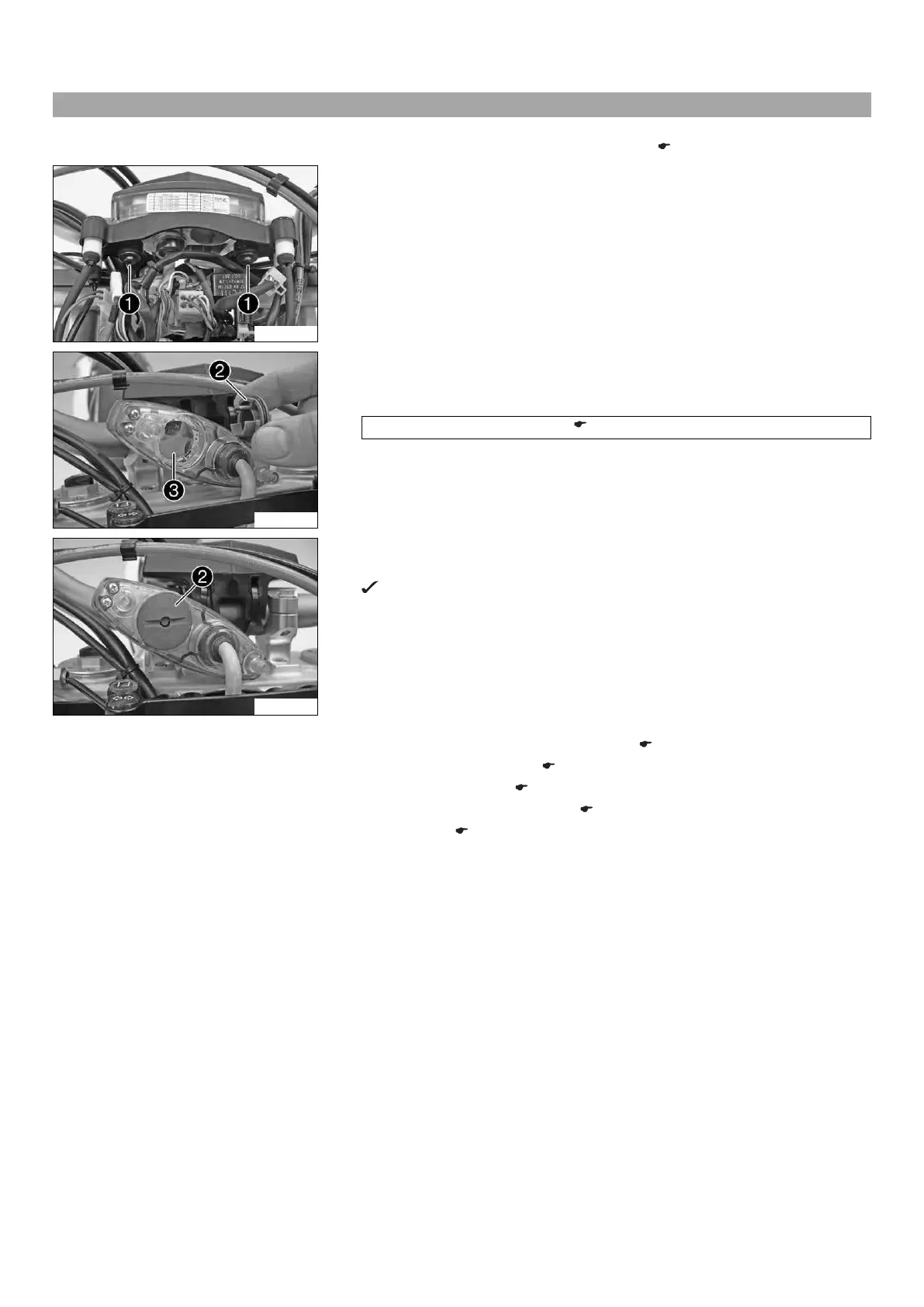

14.13 Changing the speedometer battery
Preparatory work
– Remove the headlight mask with the headlight. ( p. 83)
101405-10
Main work
– Remove screws 1.
– Pull the speedometer upward out of the holder.
101406-10
– Using a coin, turn protection cap 2 all the way counterclockwise and remove it.
– Remove speedometer battery 3.
– Insert the new battery with the label facing upward.
Speedometer battery (CR 2430) ( p. 106)
– Check the O-ring of the protection cap for correct seating.
101407-10
– Position protection cap 2 and turn all the way clockwise using a coin.
– Press any button on the speedometer.
The speedometer is activated.
– Position the speedometer in the holder.
– Mount and tighten the screws with washers.
Finishing work
– Refit the headlight mask with the headlight. ( p. 83)
– Check the headlight setting. ( p. 85)
– Set kilometers or miles. ( p. 18)
– Adjust the speedometer functions. ( p. 19)
– Set the clock. ( p. 19)

KTM 500 EXC Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XPLOR PDS shock absorber
Ground Clearance	355 mm
Seat Height	960 mm
ABS	No
Displacement	510.9 cm³
Fuel System	Keihin EFI, throttle body 42 mm
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP Xplor 48, USD fork
Front Brake	260 mm disc
Rear Brake	220 mm disc
Fuel Tank Capacity	8.5 liters
