11 SERVICE WORK ON THE CHASSIS 53

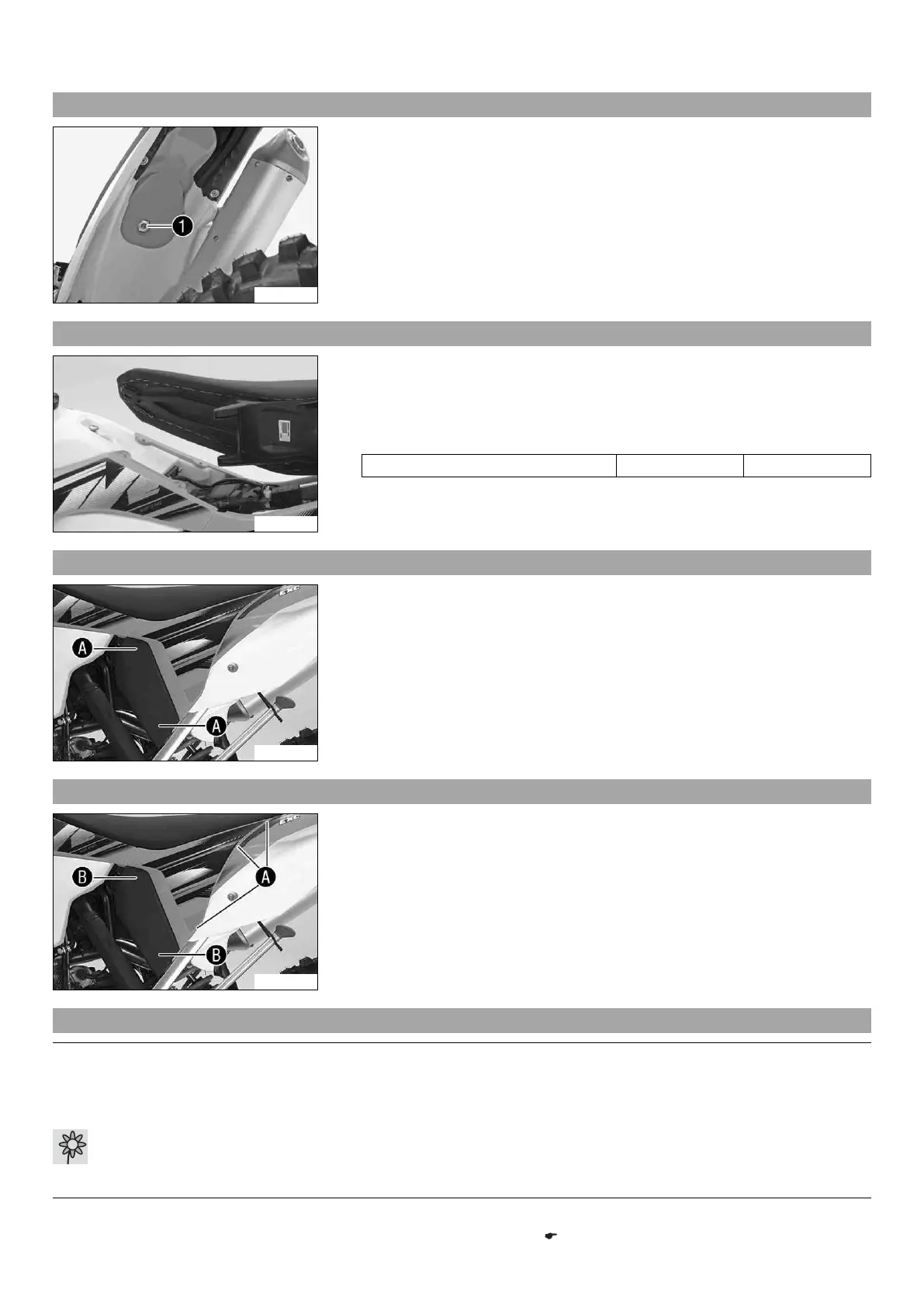

11.20 Removing the seat
101346-10
– Remove screw 1.
– Lift up the seat at the rear, pull it back and then remove it from above.
11.21 Mounting the seat
S00033-10
– Hook in the front of the seat at the collar sleeve of the fuel tank, lower it at the rear
and simultaneously push it forward.
– Make sure that the seat is correctly locked in.
– Mount and tighten the screw of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
11.22 Removing the air filter box lid
S00031-10
– Pull off the air filter box lid in area A to the side and remove to the front.
11.23 Installing the air filter box lid
S00031-11
– Insert the air filter box lid into the rear area A and clip it into the front area B.
11.24 Removing the air filter x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the air filter box lid. ( p. 53)
