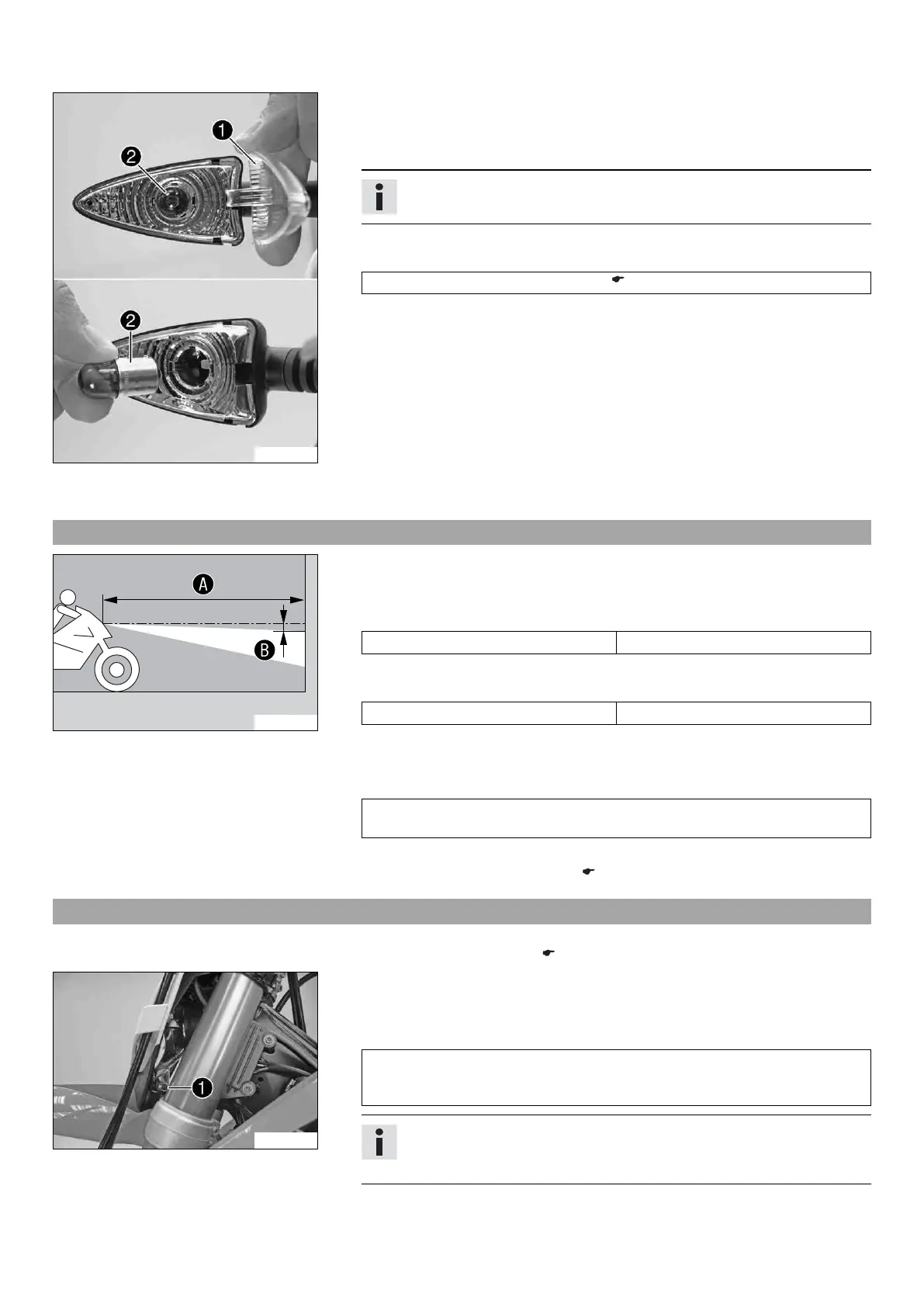

14 ELECTRICAL SYSTEM 85
101723-10
Main work
– Remove the screw and carefully remove diffuser 1.
– Press the turn signal bulb 2 carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise until
it stops.
Turn signal (RY10W / socket BAU15s) ( p. 106)
– Position the diffuser.
– Insert the screw and first turn it counterclockwise until it engages in the thread.
Tighten the screw slightly.
Finishing work
– Check that the turn signal system is functioning properly.
14.11 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of a light wall and make
a mark at the height of the center of the low beam headlight.
– Make another mark a distance B under the first mark.
Guideline
Distance B 5 cm (2 in)
– Position the vehicle vertically a distance A away from the wall.
Guideline
Distance A 5 m (16 ft)
– The rider now sits down on the motorcycle.
– Switch on the low beam.
– Check the headlight setting.
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver.
» If the light-dark border does not meet specifications:
– Adjust the headlight range. ( p. 85)
14.12 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 85)
101404-10
Main work
– Loosen screw 1.
– Adjust the headlight range of the headlight by moving it up or down.
Guideline
The boundary between light and dark must be exactly on the lower mark for a
motorcycle with driver (instructions on how to apply the mark: Checking the
headlight setting).
Info
A change in weight on the vehicle may require a correction of the headlight
range.
– Tighten screw 1.
