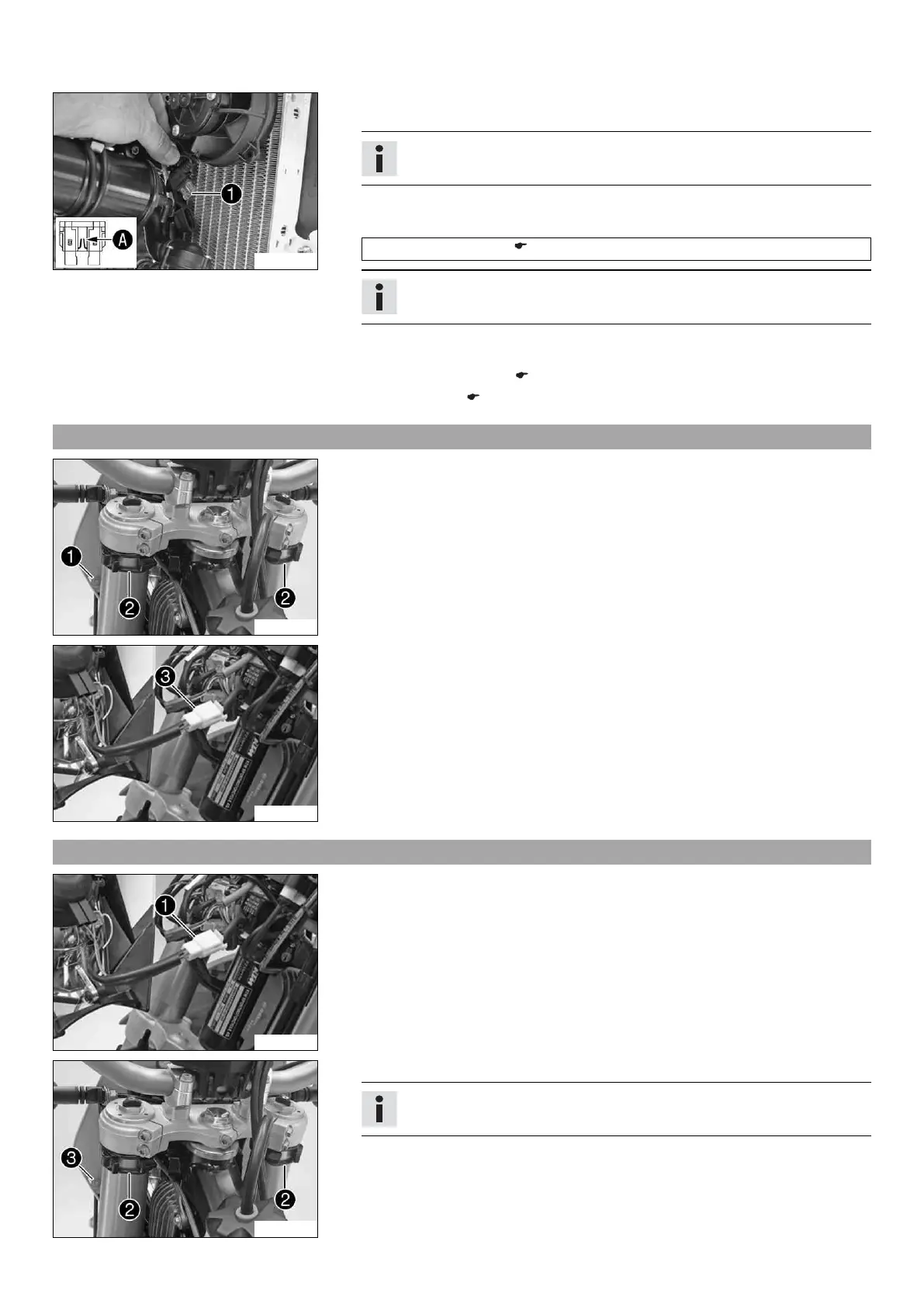

14 ELECTRICAL SYSTEM 83
101498-10
Main work
– Take off the protection cap.
Info
Fuse 1 of the radiator fan is located in the vicinity of the right radiator.
– Remove the faulty fuse.
– Insert the new fuse.
Fuse (58011109105) ( p. 106)
Info
Always replace faulty fuses with fuses of the same quality.
– Mount the protection cap.
Finishing work
–
Install the fuel tank. x ( p. 57)
– Mount the seat. ( p. 53)
14.7 Removing headlight mask with headlight
101401-10
– Switch off all electrical equipment.
– Remove screw 1 and take off clamp.
– Loosen the rubber band 2. Push up the headlight mask and swing it forwards.
C00124-11
– Pull out the electric plug connector 3 and remove the headlight mask with the
headlight.
14.8 Refitting the headlight mask with the headlight
C00124-10
Main work
– Connect the electric plug connector 1.
101401-11
– Position the headlight mask and fix it with the rubber band 2.
Info
Ensure that the retaining lugs engage in the fender.
– Position the brake line and wiring harness. Put the clamp on, mount and tighten
screw 3.
