6 CONTROLS 17

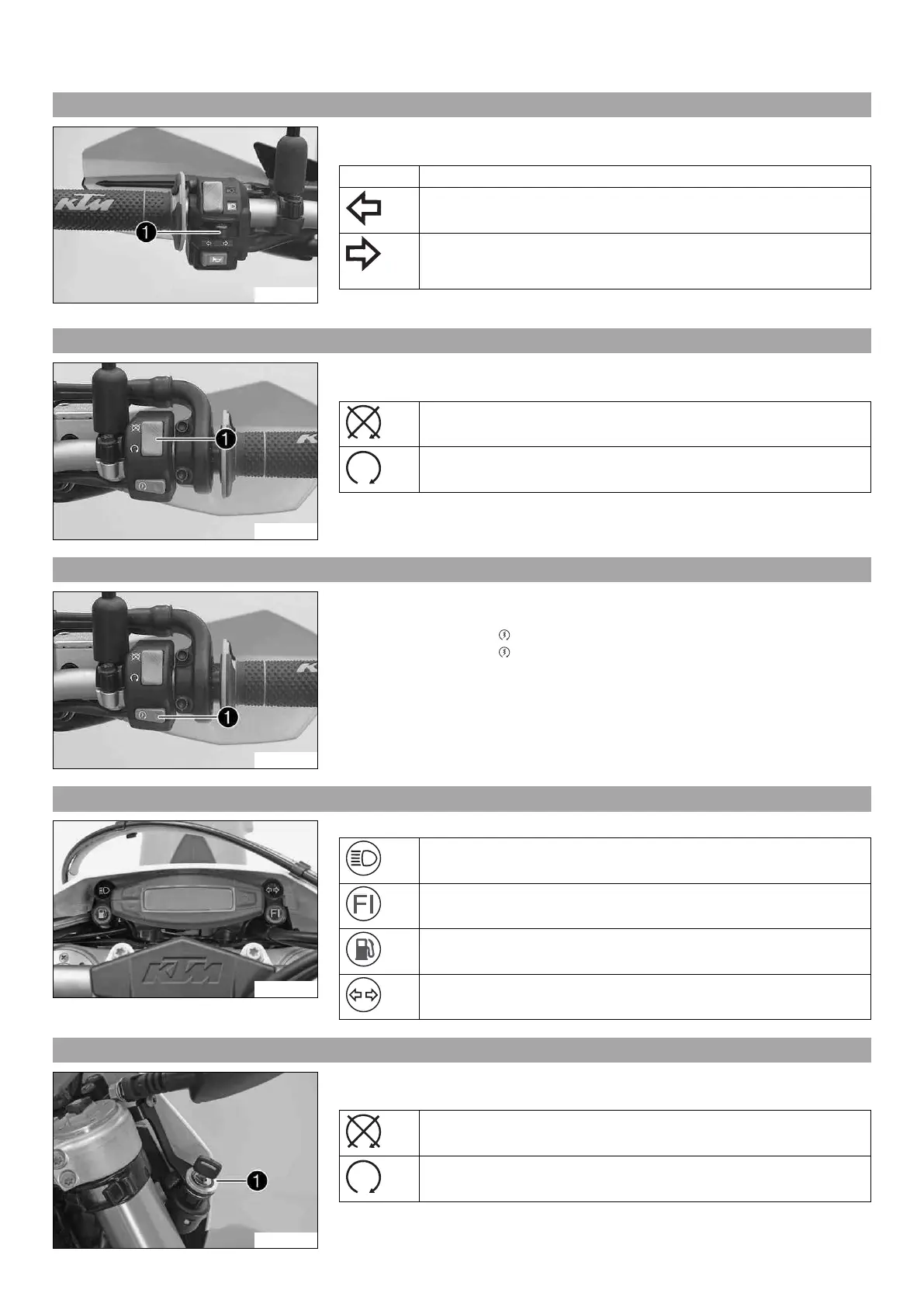

6.6 Turn signal switch
S00019-12
Turn signal switch 1 is fitted on the left side of the handlebar.
Possible states
Turn signal light off
Turn signal light, left, on – The turn signal switch is pressed to the left.
The turn signal switch returns to the middle position after activation.
Turn signal light, right, on – The turn signal switch is pressed to the
right. The turn signal switch returns to the middle position after activa-
tion.
To switch off the turn signal, press the turn signal switch toward the switch housing.
6.7 Emergency OFF switch
S00020-10
The emergency OFF switch 1 is fitted on the right side of the handlebar.
Possible states
Ignition off – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on – In this position, the ignition circuit is closed and the
engine can be started.
6.8 Electric starter button
S00020-11
Electric starter button 1 is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
6.9 Overview of indicator lamps
101304-01
Possible states
High beam indicator light lights up blue – High beam is switched on.
FI warning lamp (MIL) lights up/flashes orange – The OBD has detected
an emission- or safety-critical fault.
The fuel level warning lamp lights up orange – The fuel level has
reached the reserve mark.
Turn signal indicator light flashes green – Turn signal is switched on.
6.10 Ignition lock
101485-10
The ignition lock 1 is on the right behind the headlight mask.
Possible states
Ignition off – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on – In this position, the ignition circuit is closed, and the
engine can be started.
