CONTROLS 21

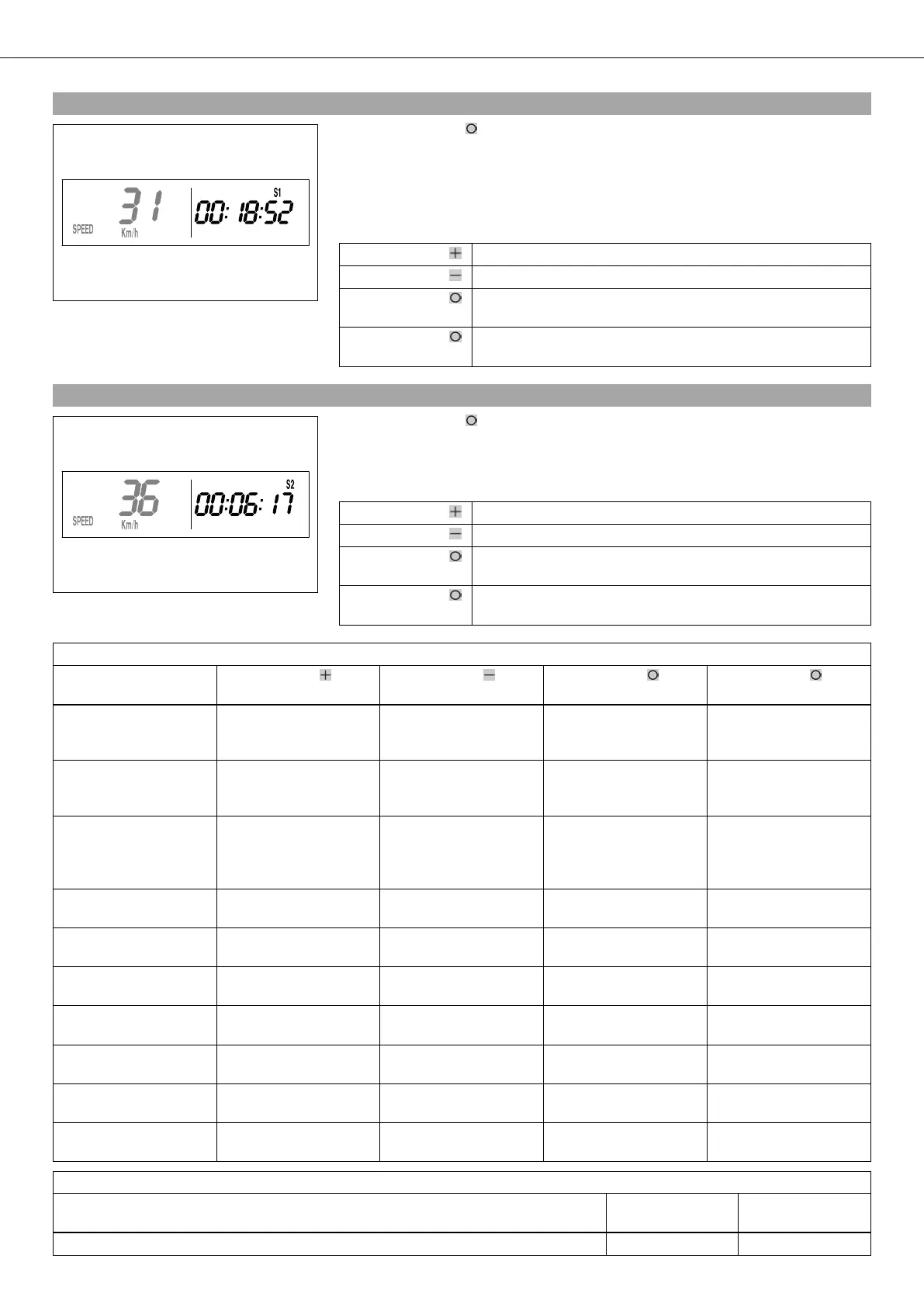

5.27SPEED/S1 display mode (stop watch 1)
400327-01
– Press the button briefly and repeatedly until S1 appears at the top right of the
display.
S1 (stop watch 1) shows the trip time on the basis of TR1 and continues running when
an impulse is received from the wheel speed sensor.
The calculation of this value starts with the first impulse of the wheel speed sensor and
ends three seconds after the last impulse.
Press the button . No function
Press the button . No function
Press the button
for 3 - 5 seconds.
The TR1, A1 and S1 displays are reset to 0.0.
Press the button
briefly.
next display mode
5.28SPEED/S2 display mode (stop watch 2)
400328-01
– Press the button briefly and repeatedly until S2 appears at the top right of the
display.
S2 (stop watch 2) is a manual stop watch.
If S2 is running in the background, the S2 display flashes in the speedometer display.
Press the button . Starts or stops S2.
Press the button . No function
Press the button
for 3 - 5 seconds.
The S2 and A2 displays are reset to 0.0.
Press the button
briefly.
next display mode
Table of functions
Display Press the button . Press the button . Press the button for 3 -
5 seconds.
Press the button
briefly.
SPEED/H display mode
(service hours)
No function No function The display changes to
the Setup menu of the
speedometer functions.
next display mode
SPEED/CLK display mode
(time)
No function No function The display changes to
the Setup menu of the
clock.
next display mode
SPEED/LAP display mode
(lap time)
Starts or stops the
clock.
Stops the current lap
time and saves it, and
the stop watch starts
the next lap.
The stop watch and the
lap time are reset.
next display mode
SPEED/ODO display mode
(odometer)
No function No function – next display mode
SPEED/TR1 display mode
(trip master 1)
No function No function The TR1, A1 and S1 dis-
plays are reset to 0.0.
next display mode
SPEED/TR2 display mode
(trip master 2)
Increases value TR2. Decreases value TR2. Clears value TR2. next display mode
SPEED/A1 display mode
(average speed 1)
No function No function The TR1, A1 and S1 dis-
plays are reset to 0.0.
next display mode
SPEED/A2 display mode
(average speed 2)
No function No function – next display mode
SPEED/S1 display mode
(stop watch 1)
No function No function The TR1, A1 and S1 dis-
plays are reset to 0.0.
next display mode
SPEED/S2 display mode
(stop watch 2)
Starts or stops S2. No function The S2 and A2 displays
are reset to 0.0.
next display mode
Table of conditions and activability
Display Vehicle at a stand-
still
Menu can be acti-
vated
SPEED/H
display mode (service hours) •
