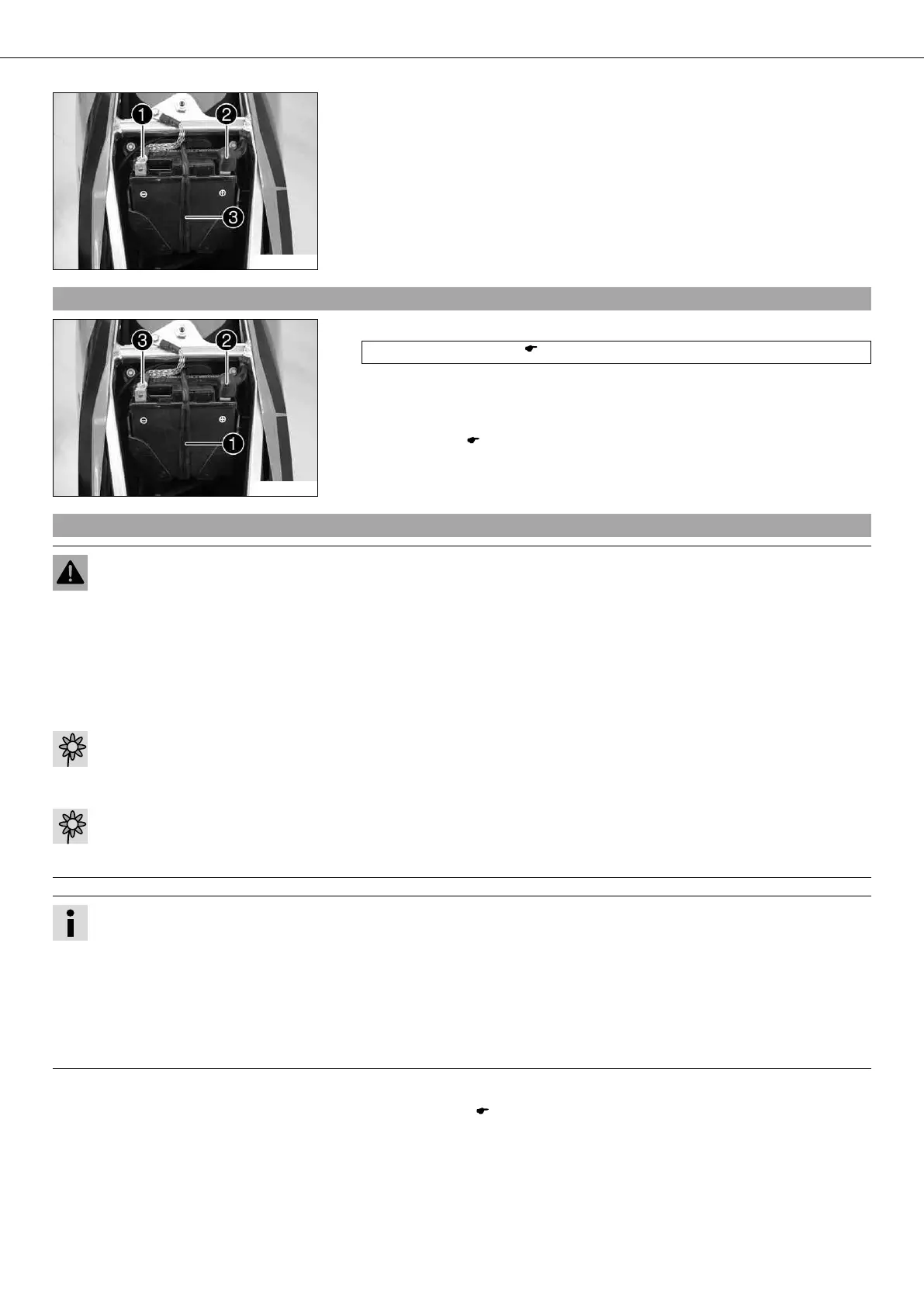

MAINTENANCE WORK ON CHASSIS AND ENGINE 64
500069-10
– Disconnect the negative (minus) cable of the battery.
– Pull back the plus pole cover and disconnect the positive (plus) cable of the bat-
tery.
– Hang the rubber band out to the bottom.
– Lift the battery up.
9.76Installing the battery x
500069-11
– Place the battery in the battery holder.
4Ah battery (YTX5L-BS) ( p. 89)
– Reconnect the rubber band .
– Attach the plus cable and replace the plus pole cover .
– Attach the minus cable .
– Mount the seat. ( p. 66)
9.77Recharging the battery x
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep the battery away from sparks or open fire. Charge only in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Warning
Environmental hazard Components and battery acid are a danger to the environment.
– Do not dispose of batteries in normal household waste. Take defective or used batteries to a battery recycling operator.
Warning
Environmental hazard Problem materials cause environmental damage.
– Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
Info
Even if there is no load on the battery, it loses power every day.
The charge state and the type of charge are very important for the service life of the battery.
Fast recharging with a high charge current shortens the battery's service life.
If the charge current, the charge voltage and the charge time are exceeded, electrolyte escapes through the breathing holes.
The battery capacity is then reduced.
If the battery is discharged from starting, it must be recharged immediately.
If it stands for a long time in a discharged state, the battery becomes over-discharged and sulfated, and then it is destroyed.
The battery is maintenance-free, i.e., the acid level does not have to be checked.
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 65)
– Disconnect the minus (negative) cable of the battery to avoid damage to the motor-
cycle's electronics.
