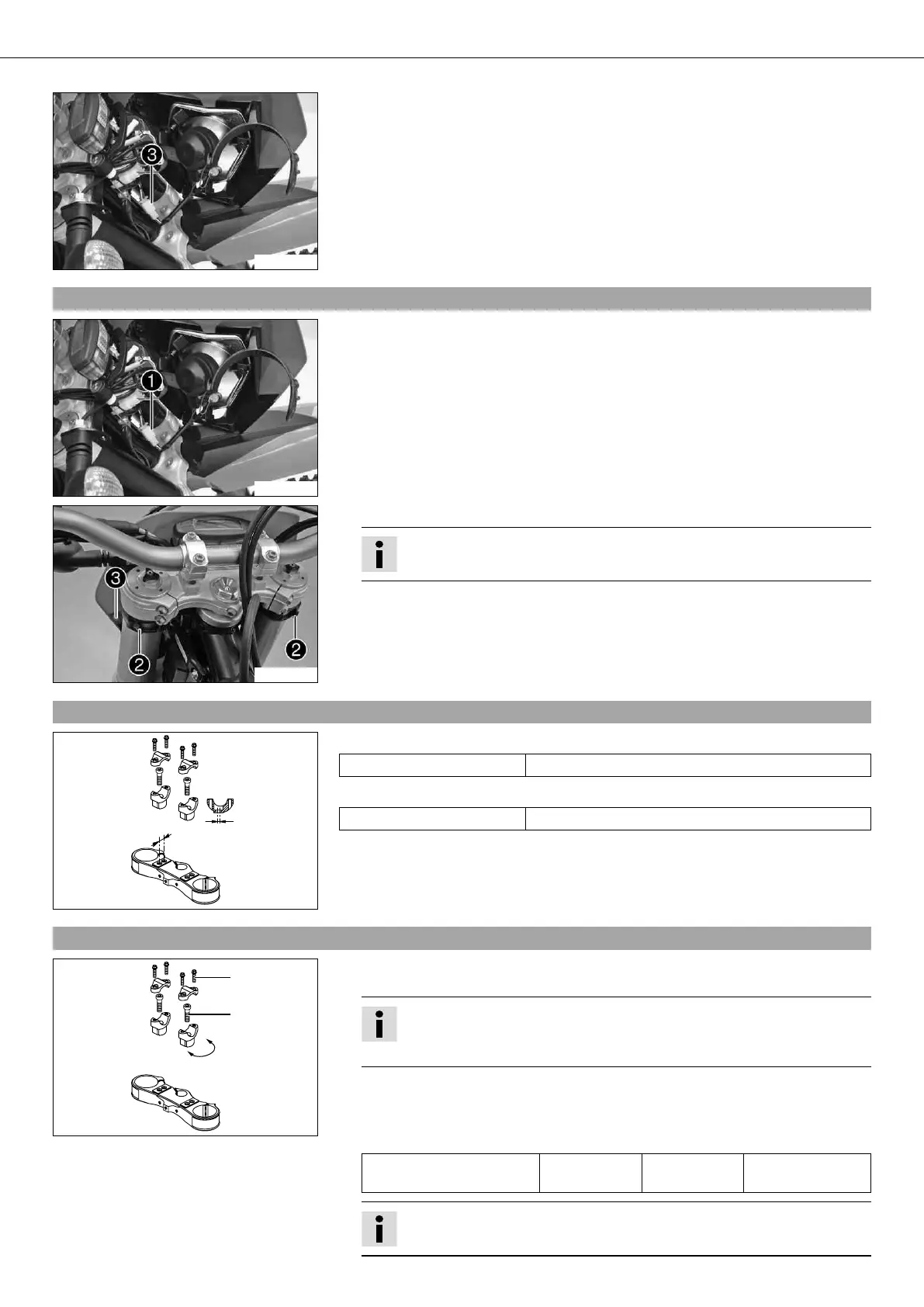

MAINTENANCE WORK ON CHASSIS AND ENGINE 46
500156-10
– Pull out the electric plug connector and remove the headlight mask with the
headlight.
9.35Refitting the headlight mask with the headlight
500156-11
– Connect the electric plug connector .
800018-11
– Position the headlight mask and fix it with the rubber band .
Info
Take care with the contact of the holding lug at the fender.
– Position the brake line and cable harness. Put the clamp on, mount and tighten
screw .
– Check the headlamp setting.
9.36Handlebar position
400271-11
On the upper triple clamp, there are 2 holes at a distance of to each other.
Distance between holes 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance of from the center.
Distance between holes 3.5 mm (0.138 in)
The handlebar supports can be mounted in 4 different positions.
9.37Adjusting the handlebar position x
400271-10
– Remove the four screws . Remove the handlebar clamp. Remove the handlebar
and lay it to one side.
Info
Protect the motorcycle and its attachments from damage by covering them.
Do not bend the cables and lines.
– Remove the two screws . Remove the handlebar support.
– Place the handlebar support in the required position. Mount and tighten the two
screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position evenly the left and right handlebar supports.
