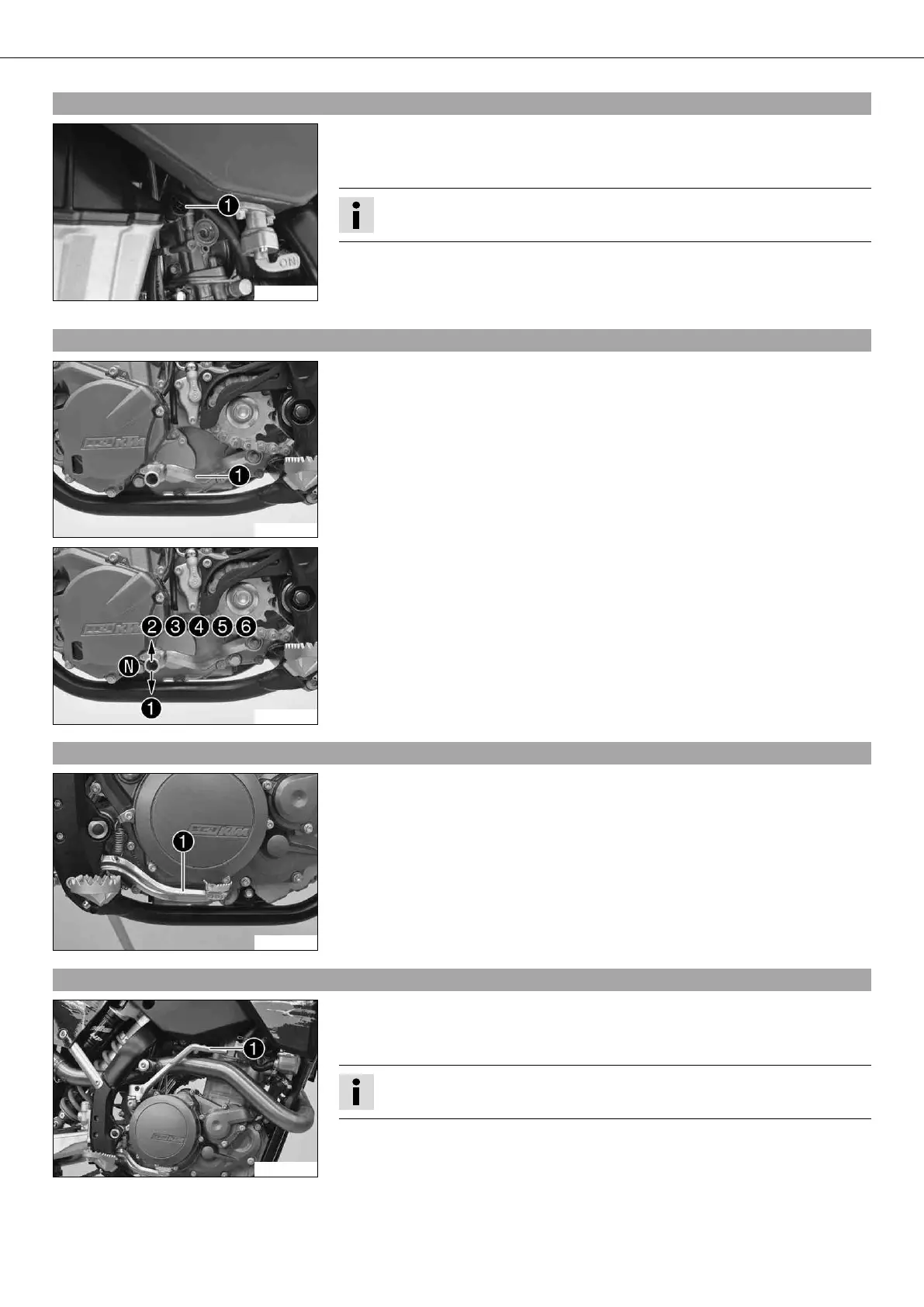

CONTROLS 23
5.32Choke
500135-10
Choke is fitted on the left side of the carburetor.
Activating the choke function frees an opening through which the engine can draw
extra fuel. This gives a richer fuel-air mixture, which is needed for a cold start.
Info
If the engine is warm, the choke function must be deactivated.
Possible states
• Choke function activated – The choke lever is pulled out to the stop.
• Choke function deactivated – The choke lever is pushed in to the stop.
5.33Shift lever
500138-10
Shift lever is mounted on the left side of the engine.
500138-11
The gear positions can be seen in the photograph.
The neutral or idle position is between the first and second gears.
5.34Foot brake pedal
500139-10
Foot brake pedal is located in front of the right footrest.
The foot brake pedal is used to activate the rear brake.
5.35Kickstarter
500148-10
Kickstarter is fitted on the right of the engine.
The engine can be started with either the kickstarter or the electric starter.
The upper part of the kickstarter can be swung out.
Info
Before riding, swing the upper part of the kickstarter inward toward the engine.
