27 LIST OF SYMBOLS
124

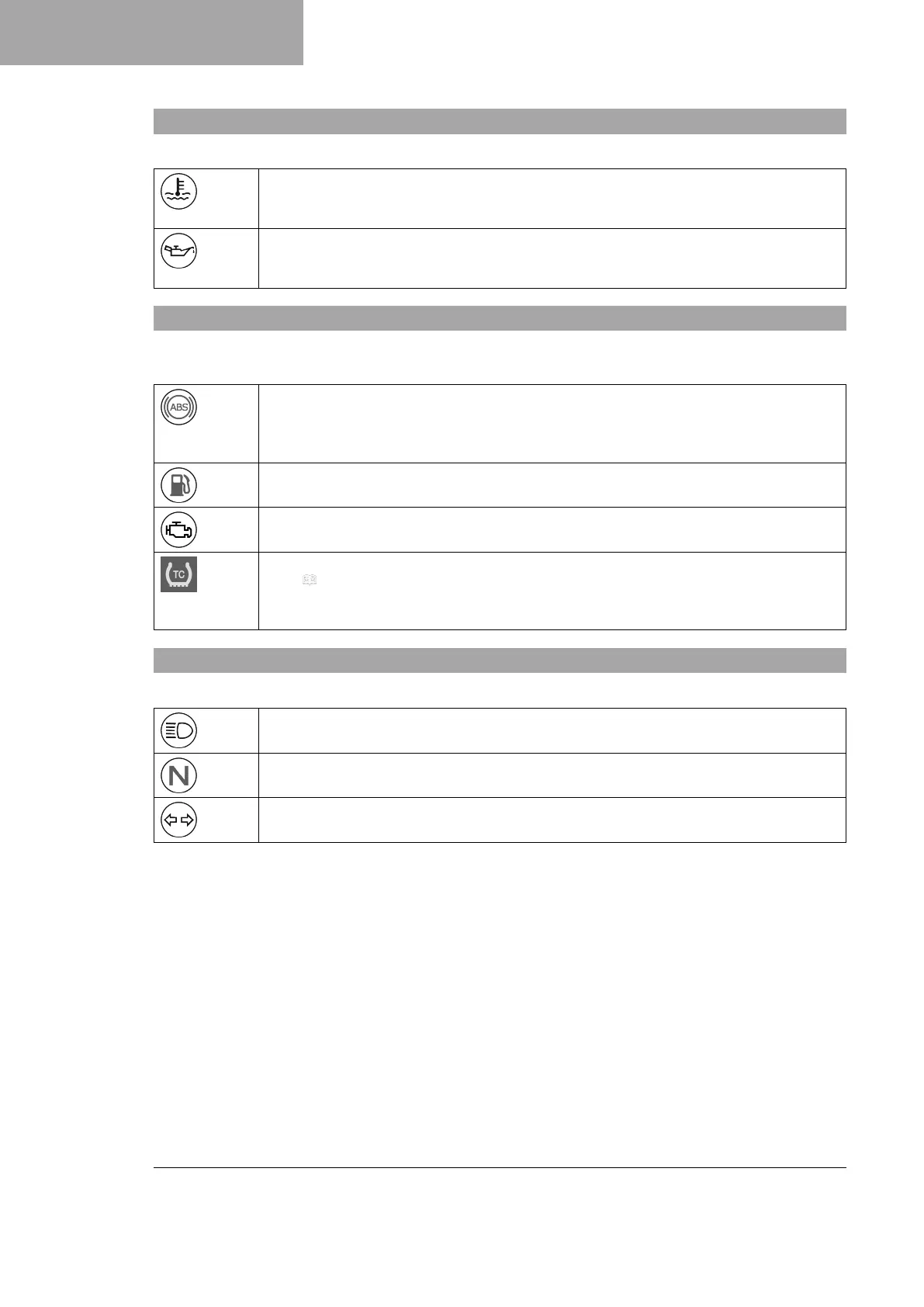

27.1 Red symbols
Red symbols indicate an error condition that requires immediate intervention.
The coolant temperature warning lamp lights up red – The coolant temperature has reached
a critical value. Stop immediately (taking care not to endanger yourself or other road users in
the process), switch off the engine, allow it to cool down and check the coolant level.
The oil pressure warning lamp lights up red – The oil pressure is too low. Stop immediately,
taking care not to endanger yourself or other road users in the process, and switch off the
engine.
27.2 Yellow and orange symbols
Yellow and orange symbols indicate an error condition that requires prompt intervention. Active driving aids are
also represented by yellow or orange symbols.
ABS warning lamp lights up/flashes yellow – If the ABS warning lamp lights up, the ABS is
not active. The ABS warning lamp also lights up if a malfunction is detected. Contact an
authorized KTM workshop. If the ABS warning lamp flashes slowly, ABS mode Supermoto is
active.
Fuel level warning lamp lights up orange – The fuel level has reached the reserve mark.
Malfunction indicator lamp lights up orange – The OBD has detected a malfunction in the
vehicle electronics. Come safely to a halt, and contact an authorized KTM workshop.
TC indicator lamp lights up/flashes yellow – If the TC indicator lamp lights up, the cornering
MTC ( p. 35) is not active. If the TC indicator lamp and both riding mode lamps light up at
same time, a malfunction has been detected. Contact an authorized KTM workshop. The TC
indicator lamp flashes if the cornering MTC actively engages.
27.3 Green and blue symbols
Green and blue symbols reflect information.
The high beam indicator lamp lights up blue – The high beam is switched on.
The idle indicator lamp lights up green – The transmission is in neutral.
Turn signal indicator lamp flashes green – The turn signal is switched on.
