11 SERVICE WORK ON THE CHASSIS
50

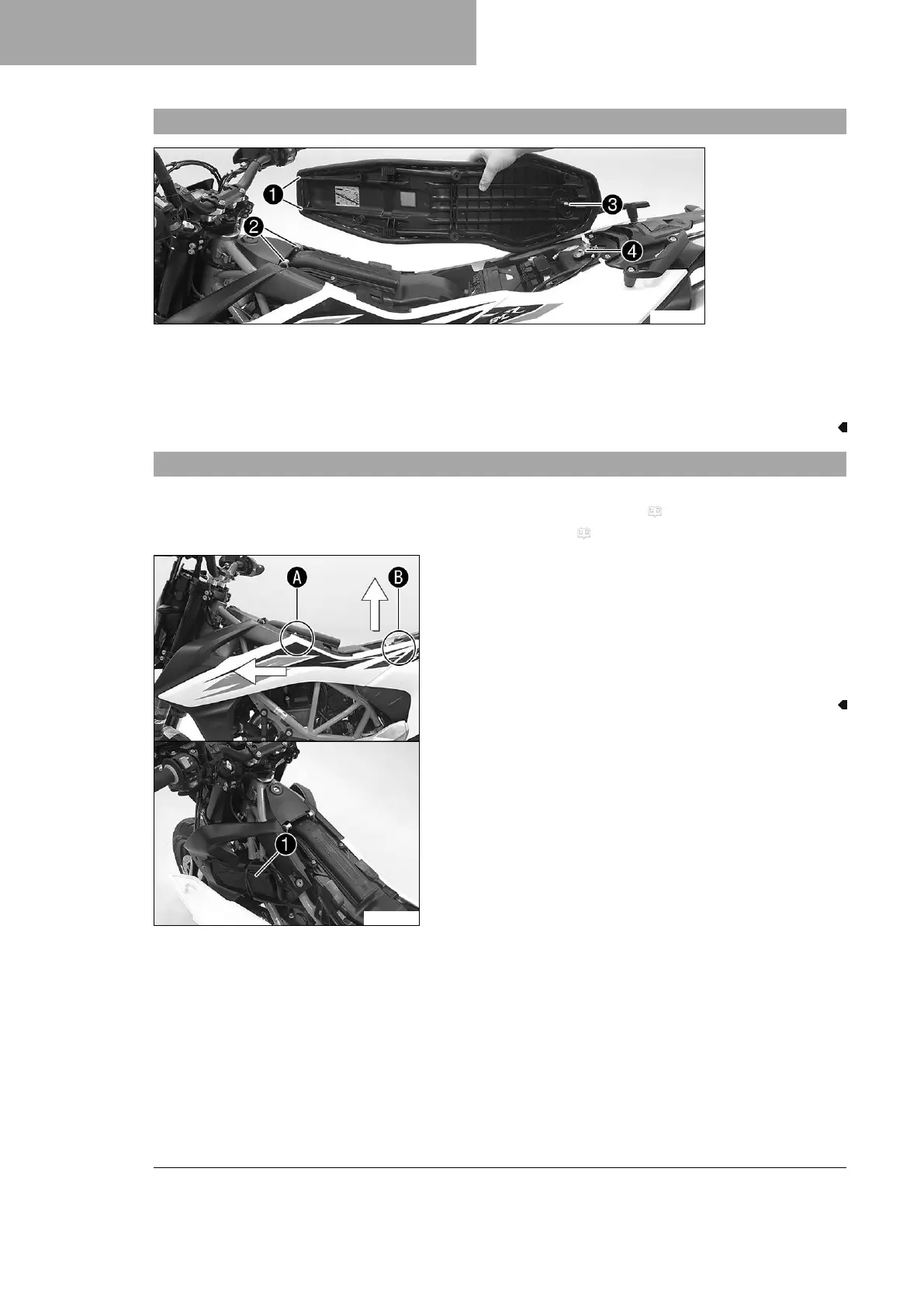

11.12 Mounting the seat
S03282-10
–
Hook the seat using holding lugs
1
on to bushings
2
, lower the seat at the rear and push it forward.
–
Push locking pin
3
into lock housing
4
and push the back of the seat down until the locking pin locks in
place with an audible click.
– Check that the seat is correctly mounted.
11.13 Removing the tool set
Preparatory work
– Open the fuel tank filler cap. ( p. 19)
– Remove the seat. ( p. 49)
S03285-10
Main work
– Remove the left side cover from the rubber bushing in area
A
.
– Remove the left side cover upwards from the bushing in area
B
.
– Take off the left side cover from the front.
–
Open the tool set compartment and take out tool set
1
.
