ELECTRICAL SYSTEM 14
85
S03303-12
– Position the headlight mask.
Info
Pay attention to routing of the brake line.
–
Mount and tighten screws
3
.
Guideline
Screw, headlight
mask
M5 2 Nm (1.5 lbf ft)
Finishing work
– Check the headlight setting. ( p. 86)

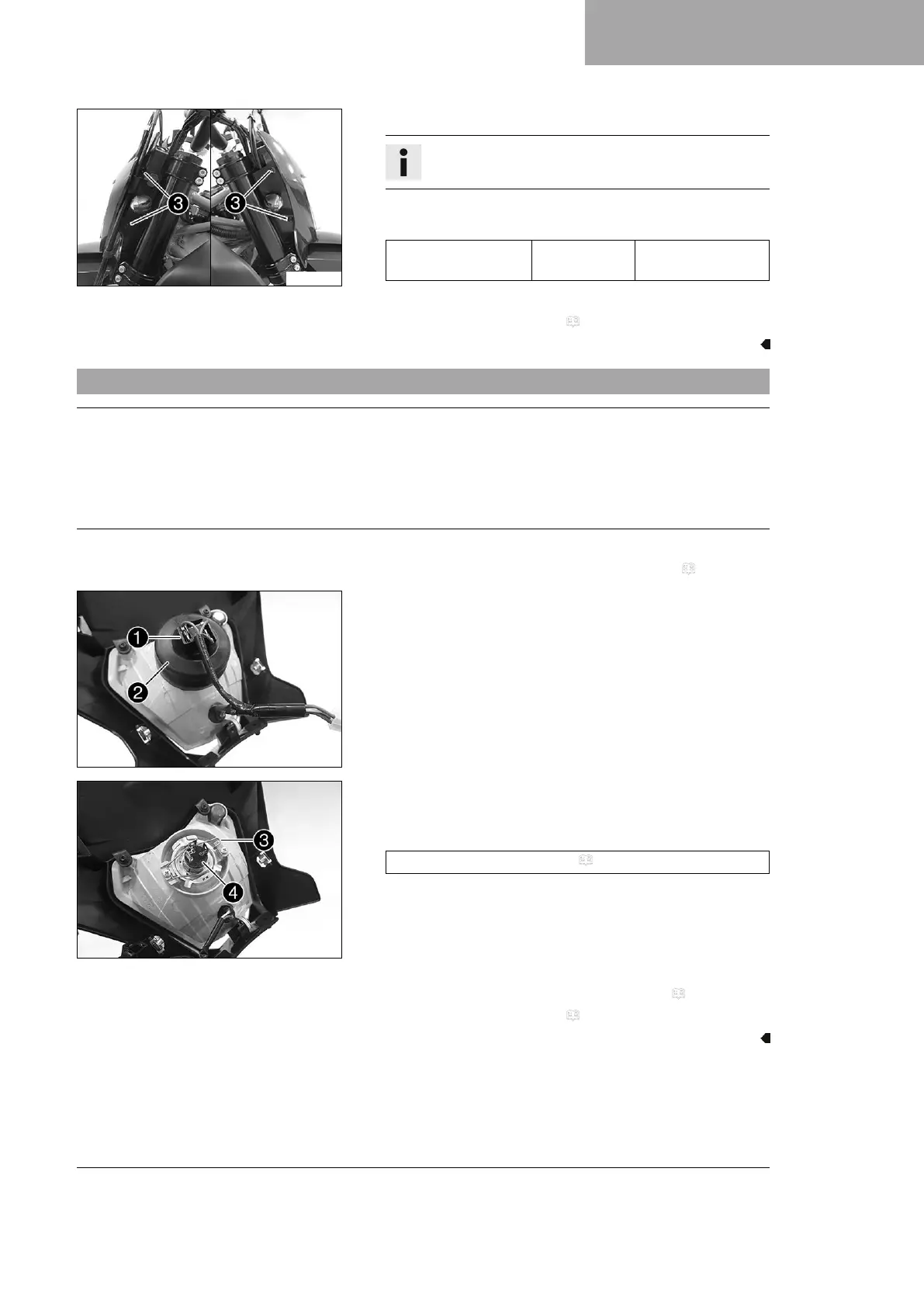

14.9 Changing the headlight bulb
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 84)
S03306-10
Main work
–
Unplug connector
1
.
–
Take off protection cap
2
of the headlight bulb.
S03307-10
–
Detach spring bar
3
.
–
Remove headlight bulb
4
.
– Insert a new headlight bulb into the headlight housing.
Headlight (H4 / socket P43t) ( p. 112)
– Fix the headlight bulb in the headlight using the spring bar.
– Mount the protection cap. Plug in the connector.
Finishing work
– Install the headlight mask with the headlight. ( p. 84)
– Check the headlight setting. ( p. 86)
