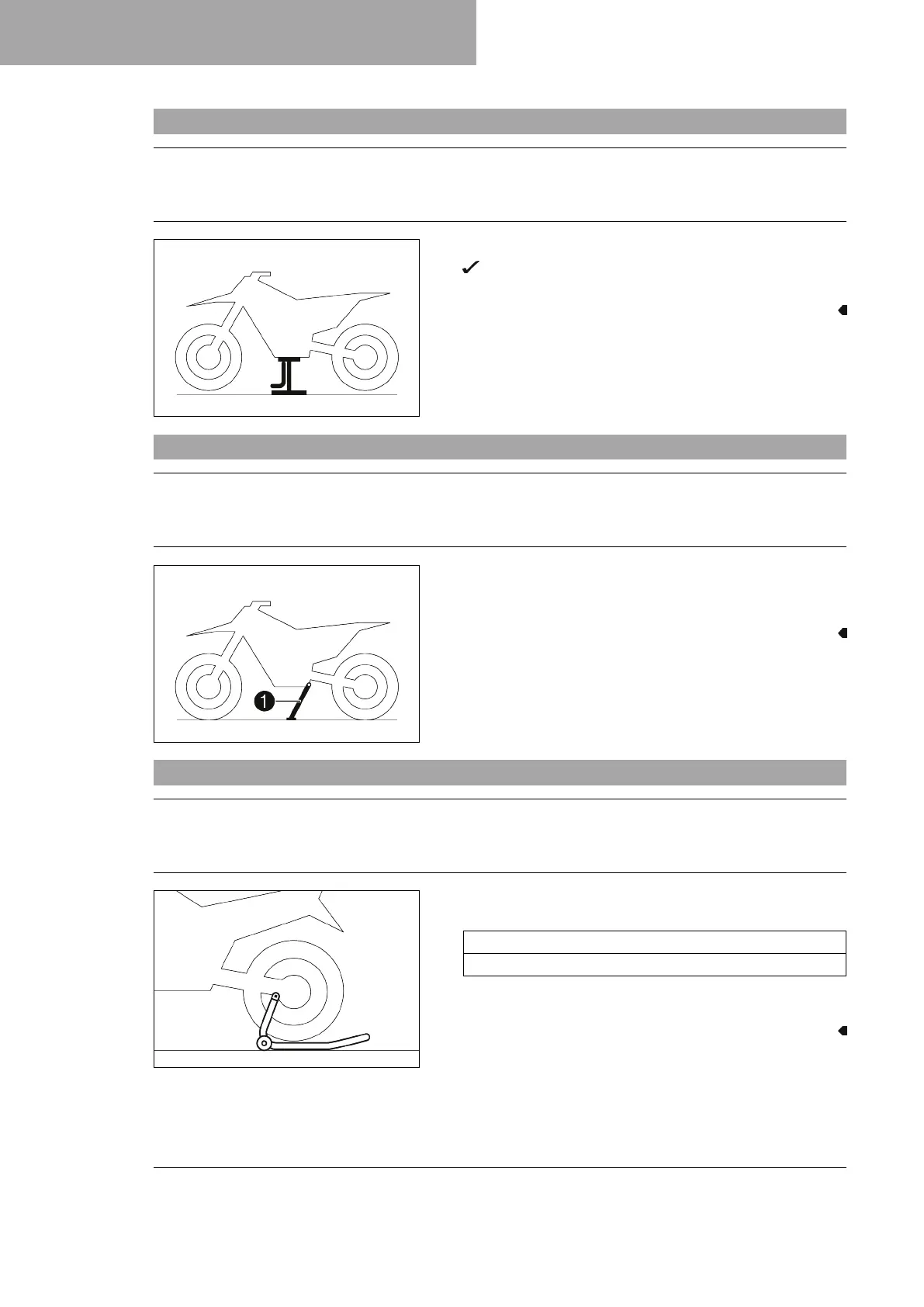

KTM 690 SMC R EU 2021 - SERVICE WORK ON THE CHASSIS; Raising the motorcycle with a lift stand; Removing the motorcycle from the lift stand; Raising the motorcycle with rear lifting gear

11 SERVICE WORK ON THE CHASSIS
46
11.1 Raising the motorcycle with a lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
401942-01
– Raise the motorcycle in the area of the footrest bracket.
Neither wheel is in contact with the ground.
– Secure the motorcycle against falling over.
11.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
401943-10
– Remove the motorcycle from the lift stand and rest it on side
stand
1
.
– Remove the lift stand.
11.3 Raising the motorcycle with rear lifting gear
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
402346-01
– Insert the adapter in the rear of the lifting gear and screw into
the link fork on both sides.
Retaining adapter (69329955010)
Rear wheel work stand (69329955000)
– Position the motorcycle vertically, align the lifting gear, and
raise the motorcycle.
